用于夜视照明、非视觉检测和生物成像的长波近红外 MgIn2O4:Ni2+ 磷光体，具有 47.93% 的 IQE 和 34.66% 的 EQE

IF 8.7 1区化学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY

ACS Materials Letters Pub Date : 2024-09-03 DOI:10.1021/acsmaterialslett.4c01062

Fengmei Zhu, Yu Deng, Yuan Gao, Jianbei Qiu

{"title":"用于夜视照明、非视觉检测和生物成像的长波近红外 MgIn2O4:Ni2+ 磷光体，具有 47.93% 的 IQE 和 34.66% 的 EQE","authors":"Fengmei Zhu, Yu Deng, Yuan Gao, Jianbei Qiu","doi":"10.1021/acsmaterialslett.4c01062","DOIUrl":null,"url":null,"abstract":"Presently, there are very limited options for a broad-band long-wavelength near-infrared phosphor-converted light-emitting diode (LWNIR pc-LED) with wavelengths above ∼1500 nm, and most LWNIR phosphors have a low luminescence quantum efficiency. Here, Ni2+-doped MgIn2O4 antispinel phosphors were prepared by a high-temperature solid-state reaction method. Under 365 nm excitation, they exhibited broad-band LWNIR emission in the range of 1200–2100 nm, with an emission peak of ∼1490 nm and a full width at half-maximum of ∼313 nm, indicating a weak crystal field environment with high electron polarization around the center of the [MgO6] octahedron. The IQE and EQE of MgIn2O4:Ni2+ phosphors were ∼47.93% and ∼34.66%, respectively. The optimized phosphor was encapsulated with an LED chip to obtain a LWNIR pc-LED device for night vision lighting, nonvisual detection, and biological imaging. Our results confirmed that LWNIR lighting based imaging technology showed clear safety advantages over traditional high-energy ray imaging.","PeriodicalId":19,"journal":{"name":"ACS Materials Letters","volume":"18 1","pages":""},"PeriodicalIF":8.7000,"publicationDate":"2024-09-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Long-Wavelength Near-Infrared MgIn2O4:Ni2+ Phosphor with 47.93% IQE and 34.66% EQE for Night Vision Lighting, Nonvisual Detection, and Biological Imaging\",\"authors\":\"Fengmei Zhu, Yu Deng, Yuan Gao, Jianbei Qiu\",\"doi\":\"10.1021/acsmaterialslett.4c01062\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Presently, there are very limited options for a broad-band long-wavelength near-infrared phosphor-converted light-emitting diode (LWNIR pc-LED) with wavelengths above ∼1500 nm, and most LWNIR phosphors have a low luminescence quantum efficiency. Here, Ni2+-doped MgIn2O4 antispinel phosphors were prepared by a high-temperature solid-state reaction method. Under 365 nm excitation, they exhibited broad-band LWNIR emission in the range of 1200–2100 nm, with an emission peak of ∼1490 nm and a full width at half-maximum of ∼313 nm, indicating a weak crystal field environment with high electron polarization around the center of the [MgO6] octahedron. The IQE and EQE of MgIn2O4:Ni2+ phosphors were ∼47.93% and ∼34.66%, respectively. The optimized phosphor was encapsulated with an LED chip to obtain a LWNIR pc-LED device for night vision lighting, nonvisual detection, and biological imaging. Our results confirmed that LWNIR lighting based imaging technology showed clear safety advantages over traditional high-energy ray imaging.\",\"PeriodicalId\":19,\"journal\":{\"name\":\"ACS Materials Letters\",\"volume\":\"18 1\",\"pages\":\"\"},\"PeriodicalIF\":8.7000,\"publicationDate\":\"2024-09-03\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Materials Letters\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1021/acsmaterialslett.4c01062\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Materials Letters","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/acsmaterialslett.4c01062","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

目前，波长在 ∼1500 nm 以上的宽带长波长近红外荧光粉转换发光二极管（LWNIR pc-LED）的选择非常有限，而且大多数 LWNIR 荧光粉的发光量子效率较低。本文采用高温固态反应法制备了掺杂 Ni2+ 的 MgIn2O4 反硒荧光粉。在 365 nm 激发下，它们在 1200-2100 nm 范围内呈现宽带 LWNIR 发射，发射峰为 ∼1490 nm，半最大全宽为∼313 nm，这表明[MgO6] 八面体中心周围存在电子极化程度高的弱晶体场环境。MgIn2O4:Ni2+ 荧光粉的 IQE 和 EQE 分别为 ∼47.93% 和 ∼34.66%。将优化的荧光粉与 LED 芯片封装在一起，就得到了用于夜视照明、非视觉检测和生物成像的 LWNIR pc-LED 器件。我们的研究结果证实，与传统的高能射线成像技术相比，基于低温近红外照明的成像技术具有明显的安全优势。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Long-Wavelength Near-Infrared MgIn2O4:Ni2+ Phosphor with 47.93% IQE and 34.66% EQE for Night Vision Lighting, Nonvisual Detection, and Biological Imaging

查看原文本刊更多论文

Long-Wavelength Near-Infrared MgIn2O4:Ni2+ Phosphor with 47.93% IQE and 34.66% EQE for Night Vision Lighting, Nonvisual Detection, and Biological Imaging

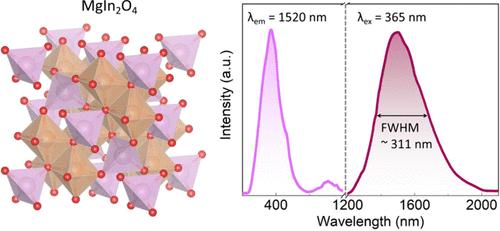

Presently, there are very limited options for a broad-band long-wavelength near-infrared phosphor-converted light-emitting diode (LWNIR pc-LED) with wavelengths above ∼1500 nm, and most LWNIR phosphors have a low luminescence quantum efficiency. Here, Ni²⁺-doped MgIn₂O₄ antispinel phosphors were prepared by a high-temperature solid-state reaction method. Under 365 nm excitation, they exhibited broad-band LWNIR emission in the range of 1200–2100 nm, with an emission peak of ∼1490 nm and a full width at half-maximum of ∼313 nm, indicating a weak crystal field environment with high electron polarization around the center of the [MgO₆] octahedron. The IQE and EQE of MgIn₂O₄:Ni²⁺ phosphors were ∼47.93% and ∼34.66%, respectively. The optimized phosphor was encapsulated with an LED chip to obtain a LWNIR pc-LED device for night vision lighting, nonvisual detection, and biological imaging. Our results confirmed that LWNIR lighting based imaging technology showed clear safety advantages over traditional high-energy ray imaging.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
