通过外部声场抑制钠硫电池中的穿梭效应和枝晶生长

IF 9.6 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Qipeng Zhang, Luyu Bo, Hao Li, Liang Shen, Jiali Li, Teng Li, Yunhao Xiao, Zhenhua Tian* and Zheng Li*,
{"title":"通过外部声场抑制钠硫电池中的穿梭效应和枝晶生长","authors":"Qipeng Zhang,&nbsp;Luyu Bo,&nbsp;Hao Li,&nbsp;Liang Shen,&nbsp;Jiali Li,&nbsp;Teng Li,&nbsp;Yunhao Xiao,&nbsp;Zhenhua Tian* and Zheng Li*,&nbsp;","doi":"10.1021/acs.nanolett.4c0086410.1021/acs.nanolett.4c00864","DOIUrl":null,"url":null,"abstract":"<p >The room-temperature sodium–sulfur (RT Na–S) battery is a promising alternative to traditional lithium-ion batteries owing to its abundant material availability and high specific energy density. However, the sodium polysulfide shuttle effect and dendritic growth pose significant challenges to their practical applications. In this study, we apply diverse disciplinary backgrounds to introduce a novel method to stimulate polarized BaTiO<sub>3</sub> (BTO) nanoparticles on the separator. This approach generates more charges due to the piezoelectric effect under stronger driving forces produced by applying a controllable acoustic field at the outer edge of the cell. The acoustically stimulated BTO attracts more polysulfides, thus reducing the shuttling effect from the cathode to the anode and ultimately enhancing the battery performance. Meanwhile, the acoustic waves create additional streaming flows, improving the uniformity of the sodium ion dispersion, enhancing the sodium ion transport and reducing the possibility of sodium dendrite development. We believe that this work offers a new strategy for the development of high-performance Na–S batteries.</p>","PeriodicalId":53,"journal":{"name":"Nano Letters","volume":"24 35","pages":"10711–10717 10711–10717"},"PeriodicalIF":9.6000,"publicationDate":"2024-08-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.acs.org/doi/epdf/10.1021/acs.nanolett.4c00864","citationCount":"0","resultStr":"{\"title\":\"Inhibiting Shuttle Effect and Dendrite Growth in Sodium–Sulfur Batteries Enabled by Applying External Acoustic Field\",\"authors\":\"Qipeng Zhang,&nbsp;Luyu Bo,&nbsp;Hao Li,&nbsp;Liang Shen,&nbsp;Jiali Li,&nbsp;Teng Li,&nbsp;Yunhao Xiao,&nbsp;Zhenhua Tian* and Zheng Li*,&nbsp;\",\"doi\":\"10.1021/acs.nanolett.4c0086410.1021/acs.nanolett.4c00864\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The room-temperature sodium–sulfur (RT Na–S) battery is a promising alternative to traditional lithium-ion batteries owing to its abundant material availability and high specific energy density. However, the sodium polysulfide shuttle effect and dendritic growth pose significant challenges to their practical applications. In this study, we apply diverse disciplinary backgrounds to introduce a novel method to stimulate polarized BaTiO<sub>3</sub> (BTO) nanoparticles on the separator. This approach generates more charges due to the piezoelectric effect under stronger driving forces produced by applying a controllable acoustic field at the outer edge of the cell. The acoustically stimulated BTO attracts more polysulfides, thus reducing the shuttling effect from the cathode to the anode and ultimately enhancing the battery performance. Meanwhile, the acoustic waves create additional streaming flows, improving the uniformity of the sodium ion dispersion, enhancing the sodium ion transport and reducing the possibility of sodium dendrite development. We believe that this work offers a new strategy for the development of high-performance Na–S batteries.</p>\",\"PeriodicalId\":53,\"journal\":{\"name\":\"Nano Letters\",\"volume\":\"24 35\",\"pages\":\"10711–10717 10711–10717\"},\"PeriodicalIF\":9.6000,\"publicationDate\":\"2024-08-21\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.acs.org/doi/epdf/10.1021/acs.nanolett.4c00864\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nano Letters\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.nanolett.4c00864\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Letters","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.nanolett.4c00864","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

室温钠硫(RT Na-S)电池具有材料丰富、比能量密度高等特点,是一种替代传统锂离子电池的前景广阔的电池。然而,多硫化钠穿梭效应和树枝状生长对其实际应用构成了重大挑战。在本研究中,我们运用不同的学科背景,介绍了一种在隔膜上激发极化 BaTiO3(BTO)纳米粒子的新方法。这种方法通过在电池外缘施加可控声场,在更强的驱动力下产生压电效应,从而产生更多电荷。受声波刺激的 BTO 吸引了更多的多硫化物,从而减少了从阴极到阳极的穿梭效应,最终提高了电池性能。同时,声波还能产生额外的流动,提高钠离子分散的均匀性,增强钠离子的传输,降低钠枝晶形成的可能性。我们相信,这项工作为开发高性能 Na-S 电池提供了一种新策略。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Inhibiting Shuttle Effect and Dendrite Growth in Sodium–Sulfur Batteries Enabled by Applying External Acoustic Field

Inhibiting Shuttle Effect and Dendrite Growth in Sodium–Sulfur Batteries Enabled by Applying External Acoustic Field

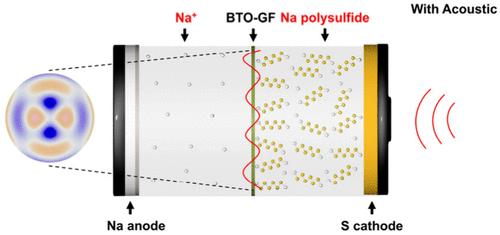

The room-temperature sodium–sulfur (RT Na–S) battery is a promising alternative to traditional lithium-ion batteries owing to its abundant material availability and high specific energy density. However, the sodium polysulfide shuttle effect and dendritic growth pose significant challenges to their practical applications. In this study, we apply diverse disciplinary backgrounds to introduce a novel method to stimulate polarized BaTiO3 (BTO) nanoparticles on the separator. This approach generates more charges due to the piezoelectric effect under stronger driving forces produced by applying a controllable acoustic field at the outer edge of the cell. The acoustically stimulated BTO attracts more polysulfides, thus reducing the shuttling effect from the cathode to the anode and ultimately enhancing the battery performance. Meanwhile, the acoustic waves create additional streaming flows, improving the uniformity of the sodium ion dispersion, enhancing the sodium ion transport and reducing the possibility of sodium dendrite development. We believe that this work offers a new strategy for the development of high-performance Na–S batteries.
