促进非杂质的阴离子交换实现可适配的高效反相包晶石太阳能电池

IF 32.4 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Jun Fang, Dongxu Lin, Guanshui Xie, Sibo Li, Huan Li, Xin Wang, Daozeng Wang, Nuanshan Huang, Haichen Peng, Lin Gan, Yanzhuo Zhu, Sisi He, Longbin Qiu
{"title":"促进非杂质的阴离子交换实现可适配的高效反相包晶石太阳能电池","authors":"Jun Fang, Dongxu Lin, Guanshui Xie, Sibo Li, Huan Li, Xin Wang, Daozeng Wang, Nuanshan Huang, Haichen Peng, Lin Gan, Yanzhuo Zhu, Sisi He, Longbin Qiu","doi":"10.1039/d4ee02718c","DOIUrl":null,"url":null,"abstract":"The two-step sequential deposition is promising for control of the crystallization and growth of compact perovskite by separating the deposition of PbI2 and organic salt. Furthermore, thermal evaporated-PbI2 has the potential for textured surfaces. However, the performance of inverted perovskite solar cells by the two-step sequential deposition lags far behind the counterpart fabricated by the one-step deposition from a precursor solution. Here, we found insight into anion exchange in the sequential thermal evaporation-solution process for high-quality perovskite films. The exchange process promotes mass transport and penetration of organic compounds into evaporated PbI2, optimizes phase purity, and enables a homogeneous halide distribution with inhibited phase segregation. The devices fabricated by evaporated-PbI2 as the bottom layer following the solid-solution interdiffusion process yield a champion efficiency of 24.43% (certified 24.18%), which is the highest inverted perovskite solar cells based on evaporated PbI2. Incorporating the scalable blading process for solid-solution interdiffusion, the device exhibits an efficiency up to 22.22%. The resulting conformable and scalable cells maintain 95% of the initial efficiency after operation for 682 h under one sun illumination. This anion-exchange strategy provides instructive significance for future large-area and monolithic perovskite-silicon tandem cells.","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":null,"pages":null},"PeriodicalIF":32.4000,"publicationDate":"2024-09-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Anion Exchange Promoting Non-Impurities Enables Conformable and Efficient Inverted Perovskite Solar Cells\",\"authors\":\"Jun Fang, Dongxu Lin, Guanshui Xie, Sibo Li, Huan Li, Xin Wang, Daozeng Wang, Nuanshan Huang, Haichen Peng, Lin Gan, Yanzhuo Zhu, Sisi He, Longbin Qiu\",\"doi\":\"10.1039/d4ee02718c\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"The two-step sequential deposition is promising for control of the crystallization and growth of compact perovskite by separating the deposition of PbI2 and organic salt. Furthermore, thermal evaporated-PbI2 has the potential for textured surfaces. However, the performance of inverted perovskite solar cells by the two-step sequential deposition lags far behind the counterpart fabricated by the one-step deposition from a precursor solution. Here, we found insight into anion exchange in the sequential thermal evaporation-solution process for high-quality perovskite films. The exchange process promotes mass transport and penetration of organic compounds into evaporated PbI2, optimizes phase purity, and enables a homogeneous halide distribution with inhibited phase segregation. The devices fabricated by evaporated-PbI2 as the bottom layer following the solid-solution interdiffusion process yield a champion efficiency of 24.43% (certified 24.18%), which is the highest inverted perovskite solar cells based on evaporated PbI2. Incorporating the scalable blading process for solid-solution interdiffusion, the device exhibits an efficiency up to 22.22%. The resulting conformable and scalable cells maintain 95% of the initial efficiency after operation for 682 h under one sun illumination. This anion-exchange strategy provides instructive significance for future large-area and monolithic perovskite-silicon tandem cells.\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":null,\"pages\":null},\"PeriodicalIF\":32.4000,\"publicationDate\":\"2024-09-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1039/d4ee02718c\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1039/d4ee02718c","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

通过分离 PbI2 和有机盐的沉积,两步顺序沉积有望控制致密包晶的结晶和生长。此外,热蒸发 PbI2 有可能产生纹理表面。然而,采用两步顺序沉积法制造的倒置型透辉石太阳能电池的性能远远落后于采用前驱体溶液一步沉积法制造的太阳能电池。在此,我们深入了解了高质量过氧化物薄膜在热蒸发-溶液连续沉积过程中的阴离子交换过程。交换过程促进了有机化合物向蒸发 PbI2 的质量传输和渗透,优化了相纯度,并实现了卤化物的均匀分布,抑制了相分离。以蒸发 PbI2 为底层、采用固溶体互渗工艺制作的器件的冠军效率为 24.43%(认证为 24.18%),是基于蒸发 PbI2 的最高倒置包光体太阳能电池。通过采用可扩展的固溶体互渗刀片工艺,该器件的效率高达 22.22%。在一个太阳光照射下运行 682 小时后,所产生的符合要求的可扩展电池仍能保持 95% 的初始效率。这种阴离子交换策略对未来的大面积和单片包晶硅串联电池具有指导意义。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
Anion Exchange Promoting Non-Impurities Enables Conformable and Efficient Inverted Perovskite Solar Cells

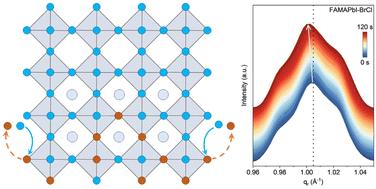

The two-step sequential deposition is promising for control of the crystallization and growth of compact perovskite by separating the deposition of PbI2 and organic salt. Furthermore, thermal evaporated-PbI2 has the potential for textured surfaces. However, the performance of inverted perovskite solar cells by the two-step sequential deposition lags far behind the counterpart fabricated by the one-step deposition from a precursor solution. Here, we found insight into anion exchange in the sequential thermal evaporation-solution process for high-quality perovskite films. The exchange process promotes mass transport and penetration of organic compounds into evaporated PbI2, optimizes phase purity, and enables a homogeneous halide distribution with inhibited phase segregation. The devices fabricated by evaporated-PbI2 as the bottom layer following the solid-solution interdiffusion process yield a champion efficiency of 24.43% (certified 24.18%), which is the highest inverted perovskite solar cells based on evaporated PbI2. Incorporating the scalable blading process for solid-solution interdiffusion, the device exhibits an efficiency up to 22.22%. The resulting conformable and scalable cells maintain 95% of the initial efficiency after operation for 682 h under one sun illumination. This anion-exchange strategy provides instructive significance for future large-area and monolithic perovskite-silicon tandem cells.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Energy & Environmental Science
Energy & Environmental Science 化学-工程:化工
CiteScore
50.50
自引率
2.20%
发文量
349
审稿时长
2.2 months
期刊介绍: Energy & Environmental Science, a peer-reviewed scientific journal, publishes original research and review articles covering interdisciplinary topics in the (bio)chemical and (bio)physical sciences, as well as chemical engineering disciplines. Published monthly by the Royal Society of Chemistry (RSC), a not-for-profit publisher, Energy & Environmental Science is recognized as a leading journal. It boasts an impressive impact factor of 8.500 as of 2009, ranking 8th among 140 journals in the category "Chemistry, Multidisciplinary," second among 71 journals in "Energy & Fuels," second among 128 journals in "Engineering, Chemical," and first among 181 scientific journals in "Environmental Sciences." Energy & Environmental Science publishes various types of articles, including Research Papers (original scientific work), Review Articles, Perspectives, and Minireviews (feature review-type articles of broad interest), Communications (original scientific work of an urgent nature), Opinions (personal, often speculative viewpoints or hypotheses on current topics), and Analysis Articles (in-depth examination of energy-related issues).
×
