脉冲二氧化碳电还原过程中铜锌纳米立方体可调选择性的时间分辨操作透视

IF 30.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Antonia Herzog, Martina Rüscher, Hyo Sang Jeon, Janis Timoshenko, Clara Rettenmaier, Uta Hejral, Earl M. Davis, F. T. Haase, David Kordus, Stefanie Kühl, Wiebke Frandsen, Arno Bergmann and Beatriz Roldan Cuenya
{"title":"脉冲二氧化碳电还原过程中铜锌纳米立方体可调选择性的时间分辨操作透视","authors":"Antonia Herzog, Martina Rüscher, Hyo Sang Jeon, Janis Timoshenko, Clara Rettenmaier, Uta Hejral, Earl M. Davis, F. T. Haase, David Kordus, Stefanie Kühl, Wiebke Frandsen, Arno Bergmann and Beatriz Roldan Cuenya","doi":"10.1039/D4EE02308K","DOIUrl":null,"url":null,"abstract":"<p >Pulsed electrochemical CO<small><sub>2</sub></small> reduction (CO<small><sub>2</sub></small>RR) has emerged as a facile way to alter the product selectivities toward desired multicarbon products, but so far, it has been mainly applied to monometallic Cu-based electrodes, which suffer from stability issues. Here, ZnO-decorated Cu<small><sub>2</sub></small>O nanocubes were exposed to various pulsed CO<small><sub>2</sub></small>RR treatments to uncover the effect of the redox transitions of both metals on the dynamic catalyst structure and composition and its link to their catalytic function. An increase in the ethanol selectivity was observed once pulsed into the oxidation regime of zinc, while the parasitic hydrogen evolution drastically increased once pulsed into the oxidation regime of Cu. By employing time-resolved <em>operando</em> X-ray absorption spectroscopy, X-ray diffraction, and surface-enhanced Raman spectroscopy, we could follow the dynamically induced interplay between Zn oxide, CuZn alloy, metallic Zn and metallic Cu formation, and the coverage of co-adsorbed hydroxide and *CO. Our study highlights the relevance of zinc oxide and an increased OH coverage for the enhancement of the catalyst selectivity toward ethanol.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 19","pages":" 7081-7096"},"PeriodicalIF":30.8000,"publicationDate":"2024-08-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.rsc.org/en/content/articlepdf/2024/ee/d4ee02308k?page=search","citationCount":"0","resultStr":"{\"title\":\"Time-resolved operando insights into the tunable selectivity of Cu–Zn nanocubes during pulsed CO2 electroreduction†\",\"authors\":\"Antonia Herzog, Martina Rüscher, Hyo Sang Jeon, Janis Timoshenko, Clara Rettenmaier, Uta Hejral, Earl M. Davis, F. T. Haase, David Kordus, Stefanie Kühl, Wiebke Frandsen, Arno Bergmann and Beatriz Roldan Cuenya\",\"doi\":\"10.1039/D4EE02308K\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Pulsed electrochemical CO<small><sub>2</sub></small> reduction (CO<small><sub>2</sub></small>RR) has emerged as a facile way to alter the product selectivities toward desired multicarbon products, but so far, it has been mainly applied to monometallic Cu-based electrodes, which suffer from stability issues. Here, ZnO-decorated Cu<small><sub>2</sub></small>O nanocubes were exposed to various pulsed CO<small><sub>2</sub></small>RR treatments to uncover the effect of the redox transitions of both metals on the dynamic catalyst structure and composition and its link to their catalytic function. An increase in the ethanol selectivity was observed once pulsed into the oxidation regime of zinc, while the parasitic hydrogen evolution drastically increased once pulsed into the oxidation regime of Cu. By employing time-resolved <em>operando</em> X-ray absorption spectroscopy, X-ray diffraction, and surface-enhanced Raman spectroscopy, we could follow the dynamically induced interplay between Zn oxide, CuZn alloy, metallic Zn and metallic Cu formation, and the coverage of co-adsorbed hydroxide and *CO. Our study highlights the relevance of zinc oxide and an increased OH coverage for the enhancement of the catalyst selectivity toward ethanol.</p>\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":\" 19\",\"pages\":\" 7081-7096\"},\"PeriodicalIF\":30.8000,\"publicationDate\":\"2024-08-26\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.rsc.org/en/content/articlepdf/2024/ee/d4ee02308k?page=search\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2024/ee/d4ee02308k\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/ee/d4ee02308k","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

脉冲电化学二氧化碳还原(CO2RR)已成为改变产品选择性以获得所需多碳产品的一种简便方法,但迄今为止,它主要应用于单金属铜基电极,而单金属铜基电极存在稳定性问题。在此,我们将氧化锌装饰的 Cu2O 纳米立方体暴露于各种脉冲 CO2RR 处理中,以揭示两种金属的氧化还原转变对催化剂动态结构和组成的影响及其与催化功能的联系。在这里,一旦脉冲进入锌的氧化体系,乙醇选择性就会增加,而一旦脉冲进入铜的氧化体系,寄生氢演化就会急剧增加。通过使用时间分辨操作型 X 射线吸收光谱、X 射线衍射和表面增强拉曼光谱,我们可以跟踪氧化锌、铜锌合金、金属锌和金属铜形成之间的动态相互作用,以及共吸附氢氧化物和*CO 的覆盖情况。我们的研究强调了氧化锌和羟基覆盖率的增加对于提高催化剂对乙醇的选择性的重要性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Time-resolved operando insights into the tunable selectivity of Cu–Zn nanocubes during pulsed CO2 electroreduction†

Time-resolved operando insights into the tunable selectivity of Cu–Zn nanocubes during pulsed CO2 electroreduction†

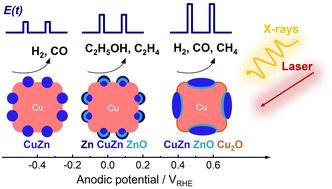

Pulsed electrochemical CO2 reduction (CO2RR) has emerged as a facile way to alter the product selectivities toward desired multicarbon products, but so far, it has been mainly applied to monometallic Cu-based electrodes, which suffer from stability issues. Here, ZnO-decorated Cu2O nanocubes were exposed to various pulsed CO2RR treatments to uncover the effect of the redox transitions of both metals on the dynamic catalyst structure and composition and its link to their catalytic function. An increase in the ethanol selectivity was observed once pulsed into the oxidation regime of zinc, while the parasitic hydrogen evolution drastically increased once pulsed into the oxidation regime of Cu. By employing time-resolved operando X-ray absorption spectroscopy, X-ray diffraction, and surface-enhanced Raman spectroscopy, we could follow the dynamically induced interplay between Zn oxide, CuZn alloy, metallic Zn and metallic Cu formation, and the coverage of co-adsorbed hydroxide and *CO. Our study highlights the relevance of zinc oxide and an increased OH coverage for the enhancement of the catalyst selectivity toward ethanol.
