大陆页岩基质上的甲烷吸附和解吸:页岩气凝析油勘探和生产的影响。

IF 3.9 2区 化学 Q2 CHEMISTRY, MULTIDISCIPLINARY
Langmuir Pub Date : 2024-08-20 Epub Date: 2024-08-12 DOI:10.1021/acs.langmuir.4c00829
Min Wang, Zengmin Lun, Xia Zhou, Chunpeng Zhao, Haitao Wang, Wenjin Hu, Yi Xu, Jie Zou, Dengfeng Zhang
{"title":"大陆页岩基质上的甲烷吸附和解吸:页岩气凝析油勘探和生产的影响。","authors":"Min Wang, Zengmin Lun, Xia Zhou, Chunpeng Zhao, Haitao Wang, Wenjin Hu, Yi Xu, Jie Zou, Dengfeng Zhang","doi":"10.1021/acs.langmuir.4c00829","DOIUrl":null,"url":null,"abstract":"<p><p>Shale gas condensate is a burgeoning unconventional resource with adsorbed methane (CH<sub>4</sub>) as its dominant component. Successful evaluation of marine shale gas gives limited insights into the evaluation of continental shale gas condensate due to their different occurrence patterns of organic matter and inorganic minerals and resultant contributions to pore development and CH<sub>4</sub> ad-/desorption capability. To address this issue, we employed an advanced low-temperature oxygen plasma (LTOP) technology to extract organic matter from the continental shaly matrix. Results showed that the continental shaly matrix contains more clay minerals and less quartz, and develops fewer pores and fractures than typical marine shaly matrix. The organic matter-hosted pores instead of inorganic mineral-hosted pores are more weighted to the pore development in the continental shaly matrix. However, the inorganic minerals of the continental shaly matrix contribute more to CH<sub>4</sub> adsorption capability than the organic matter, which could be attributed to the higher density of available adsorption sites toward CH<sub>4</sub>. Besides, the CH<sub>4</sub> ad-/desorption hysteresis is more pronounced for the organic matter-free continental shaly matrix than the raw continental shaly matrix, which is attributed to the remarkable CH<sub>4</sub> adsorption-induced clay mineral swelling. Overall, the effects of inorganic minerals in CH<sub>4</sub> adsorption and desorption, particularly clay minerals, are crucial for continental shale gas condensate exploration and production.</p>","PeriodicalId":50,"journal":{"name":"Langmuir","volume":" ","pages":"17284-17300"},"PeriodicalIF":3.9000,"publicationDate":"2024-08-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Methane Adsorption and Desorption on Continental Shaly Matrix: Implications for Shale Gas Condensate Exploration and Production.\",\"authors\":\"Min Wang, Zengmin Lun, Xia Zhou, Chunpeng Zhao, Haitao Wang, Wenjin Hu, Yi Xu, Jie Zou, Dengfeng Zhang\",\"doi\":\"10.1021/acs.langmuir.4c00829\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>Shale gas condensate is a burgeoning unconventional resource with adsorbed methane (CH<sub>4</sub>) as its dominant component. Successful evaluation of marine shale gas gives limited insights into the evaluation of continental shale gas condensate due to their different occurrence patterns of organic matter and inorganic minerals and resultant contributions to pore development and CH<sub>4</sub> ad-/desorption capability. To address this issue, we employed an advanced low-temperature oxygen plasma (LTOP) technology to extract organic matter from the continental shaly matrix. Results showed that the continental shaly matrix contains more clay minerals and less quartz, and develops fewer pores and fractures than typical marine shaly matrix. The organic matter-hosted pores instead of inorganic mineral-hosted pores are more weighted to the pore development in the continental shaly matrix. However, the inorganic minerals of the continental shaly matrix contribute more to CH<sub>4</sub> adsorption capability than the organic matter, which could be attributed to the higher density of available adsorption sites toward CH<sub>4</sub>. Besides, the CH<sub>4</sub> ad-/desorption hysteresis is more pronounced for the organic matter-free continental shaly matrix than the raw continental shaly matrix, which is attributed to the remarkable CH<sub>4</sub> adsorption-induced clay mineral swelling. Overall, the effects of inorganic minerals in CH<sub>4</sub> adsorption and desorption, particularly clay minerals, are crucial for continental shale gas condensate exploration and production.</p>\",\"PeriodicalId\":50,\"journal\":{\"name\":\"Langmuir\",\"volume\":\" \",\"pages\":\"17284-17300\"},\"PeriodicalIF\":3.9000,\"publicationDate\":\"2024-08-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Langmuir\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1021/acs.langmuir.4c00829\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2024/8/12 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Langmuir","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/acs.langmuir.4c00829","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/8/12 0:00:00","PubModel":"Epub","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

页岩气凝析油是一种新兴的非常规资源,其主要成分是吸附甲烷(CH4)。由于有机物和无机矿物的存在模式不同,对孔隙发育和甲烷吸附/解吸能力的影响也不同,因此对海洋页岩气的成功评估对大陆页岩气凝析油的评估启示有限。针对这一问题,我们采用了先进的低温氧等离子体(LTOP)技术,从大陆页岩基质中提取有机物。结果表明,与典型的海洋鳞片基质相比,大陆鳞片基质含有较多的粘土矿物和较少的石英,孔隙和裂缝也较少。在大陆鳞片基质的孔隙发育中,有机物寄生孔隙比无机矿物寄生孔隙更重要。然而,大陆鳞片基质的无机矿物比有机物对 CH4 的吸附能力贡献更大,这可能是由于对 CH4 的可用吸附位点密度更高。此外,与原始大陆鳞片基质相比,不含有机质的大陆鳞片基质对 CH4 的吸附/解吸滞后更为明显,这是因为吸附 CH4 引起了粘土矿物的显著膨胀。总之,无机矿物,尤其是粘土矿物对 CH4 吸附和解吸的影响对大陆页岩气凝析油的勘探和生产至关重要。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Methane Adsorption and Desorption on Continental Shaly Matrix: Implications for Shale Gas Condensate Exploration and Production.

Methane Adsorption and Desorption on Continental Shaly Matrix: Implications for Shale Gas Condensate Exploration and Production.

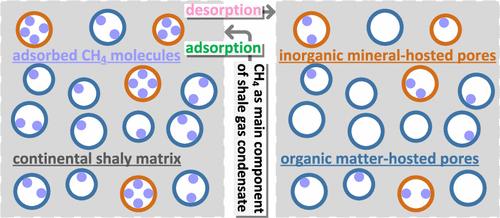

Shale gas condensate is a burgeoning unconventional resource with adsorbed methane (CH4) as its dominant component. Successful evaluation of marine shale gas gives limited insights into the evaluation of continental shale gas condensate due to their different occurrence patterns of organic matter and inorganic minerals and resultant contributions to pore development and CH4 ad-/desorption capability. To address this issue, we employed an advanced low-temperature oxygen plasma (LTOP) technology to extract organic matter from the continental shaly matrix. Results showed that the continental shaly matrix contains more clay minerals and less quartz, and develops fewer pores and fractures than typical marine shaly matrix. The organic matter-hosted pores instead of inorganic mineral-hosted pores are more weighted to the pore development in the continental shaly matrix. However, the inorganic minerals of the continental shaly matrix contribute more to CH4 adsorption capability than the organic matter, which could be attributed to the higher density of available adsorption sites toward CH4. Besides, the CH4 ad-/desorption hysteresis is more pronounced for the organic matter-free continental shaly matrix than the raw continental shaly matrix, which is attributed to the remarkable CH4 adsorption-induced clay mineral swelling. Overall, the effects of inorganic minerals in CH4 adsorption and desorption, particularly clay minerals, are crucial for continental shale gas condensate exploration and production.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Langmuir
Langmuir 化学-材料科学:综合
CiteScore
6.50
自引率
10.30%
发文量
1464
审稿时长
2.1 months
期刊介绍: Langmuir is an interdisciplinary journal publishing articles in the following subject categories: Colloids: surfactants and self-assembly, dispersions, emulsions, foams Interfaces: adsorption, reactions, films, forces Biological Interfaces: biocolloids, biomolecular and biomimetic materials Materials: nano- and mesostructured materials, polymers, gels, liquid crystals Electrochemistry: interfacial charge transfer, charge transport, electrocatalysis, electrokinetic phenomena, bioelectrochemistry Devices and Applications: sensors, fluidics, patterning, catalysis, photonic crystals However, when high-impact, original work is submitted that does not fit within the above categories, decisions to accept or decline such papers will be based on one criteria: What Would Irving Do? Langmuir ranks #2 in citations out of 136 journals in the category of Physical Chemistry with 113,157 total citations. The journal received an Impact Factor of 4.384*. This journal is also indexed in the categories of Materials Science (ranked #1) and Multidisciplinary Chemistry (ranked #5).
×
