通过在沸石-聚合物复合材料中注入液态水克服热能储存密度限制

IF 17.5 1区材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY

Matter Pub Date : 2024-10-02 DOI:10.1016/j.matt.2024.06.038

Sourav Chakravarty , Wenting Hinz , Dion Antao , Patrick J. Shamberger

{"title":"通过在沸石-聚合物复合材料中注入液态水克服热能储存密度限制","authors":"Sourav Chakravarty , Wenting Hinz , Dion Antao , Patrick J. Shamberger","doi":"10.1016/j.matt.2024.06.038","DOIUrl":null,"url":null,"abstract":"<div><div>Water-adsorbent pairs for thermal energy storage (TES) show promise due to their high heat of adsorption and stable adsorption/desorption process at near-room temperature. However, their overall energy storage capacity is limited by the adsorbent’s water adsorption capacity and slow recharge rate. To address this, we propose a liquid water recharge strategy for composite TES materials featuring high-adsorption-capacity zeolite particles (silicoaluminophosphate-34 [SAPO-34]) bound by a hydrophilic polymer. This innovation achieves TES densities exceeding 1.6 kJ g<sup>−1</sup>, facilitated by liquid water retention and polymer hydration. The composites exhibit stability through more than 100 recharge/discharge cycles up to 150°C. Post-recharge, liquid water spontaneously segregates into three populations, each linked to a distinct heat storage temperature. This approach overcomes traditional limitations in adsorption-based TES, paving the way for rapidly recharged open-system thermal energy storage.</div></div>","PeriodicalId":388,"journal":{"name":"Matter","volume":"7 10","pages":"Pages 3608-3624"},"PeriodicalIF":17.5000,"publicationDate":"2024-10-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Overcoming thermal energy storage density limits by liquid water recharge in zeolite-polymer composites\",\"authors\":\"Sourav Chakravarty , Wenting Hinz , Dion Antao , Patrick J. Shamberger\",\"doi\":\"10.1016/j.matt.2024.06.038\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Water-adsorbent pairs for thermal energy storage (TES) show promise due to their high heat of adsorption and stable adsorption/desorption process at near-room temperature. However, their overall energy storage capacity is limited by the adsorbent’s water adsorption capacity and slow recharge rate. To address this, we propose a liquid water recharge strategy for composite TES materials featuring high-adsorption-capacity zeolite particles (silicoaluminophosphate-34 [SAPO-34]) bound by a hydrophilic polymer. This innovation achieves TES densities exceeding 1.6 kJ g<sup>−1</sup>, facilitated by liquid water retention and polymer hydration. The composites exhibit stability through more than 100 recharge/discharge cycles up to 150°C. Post-recharge, liquid water spontaneously segregates into three populations, each linked to a distinct heat storage temperature. This approach overcomes traditional limitations in adsorption-based TES, paving the way for rapidly recharged open-system thermal energy storage.</div></div>\",\"PeriodicalId\":388,\"journal\":{\"name\":\"Matter\",\"volume\":\"7 10\",\"pages\":\"Pages 3608-3624\"},\"PeriodicalIF\":17.5000,\"publicationDate\":\"2024-10-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Matter\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S2590238524003564\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Matter","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2590238524003564","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

用于热能储存（TES）的水吸附剂对因其吸附热量高以及在接近室温时吸附/解吸过程稳定而大有可为。然而，由于吸附剂的水吸附能力和缓慢的充电速度，它们的整体储能能力受到了限制。为解决这一问题，我们提出了一种液态水充电策略，用于复合 TES 材料，该材料具有高吸附容量的沸石颗粒（硅铝磷酸盐-34 [SAPO-34]），并与亲水性聚合物结合。这项创新通过液态水保留和聚合物水合作用，实现了超过 1.6 kJ g-1 的 TES 密度。这种复合材料在高达 150°C 的温度下，经过 100 多个充电/放电循环后仍能保持稳定。充电后，液态水会自发分离成三个种群，每个种群都与不同的蓄热温度有关。这种方法克服了基于吸附的 TES 的传统局限性，为快速充电的开放式系统热能存储铺平了道路。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Overcoming thermal energy storage density limits by liquid water recharge in zeolite-polymer composites

查看原文本刊更多论文

Overcoming thermal energy storage density limits by liquid water recharge in zeolite-polymer composites

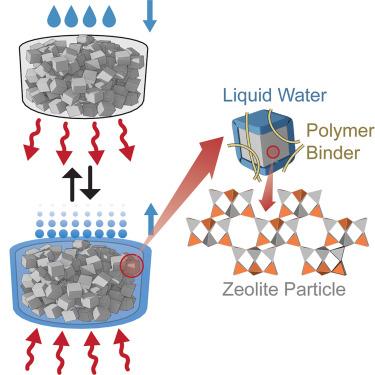

Water-adsorbent pairs for thermal energy storage (TES) show promise due to their high heat of adsorption and stable adsorption/desorption process at near-room temperature. However, their overall energy storage capacity is limited by the adsorbent’s water adsorption capacity and slow recharge rate. To address this, we propose a liquid water recharge strategy for composite TES materials featuring high-adsorption-capacity zeolite particles (silicoaluminophosphate-34 [SAPO-34]) bound by a hydrophilic polymer. This innovation achieves TES densities exceeding 1.6 kJ g⁻¹, facilitated by liquid water retention and polymer hydration. The composites exhibit stability through more than 100 recharge/discharge cycles up to 150°C. Post-recharge, liquid water spontaneously segregates into three populations, each linked to a distinct heat storage temperature. This approach overcomes traditional limitations in adsorption-based TES, paving the way for rapidly recharged open-system thermal energy storage.
