多功能交联复合粘合剂实现了高能量密度锂离子电池硅基阳极的稳定性能。

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
ACS Applied Materials & Interfaces Pub Date : 2024-08-07 Epub Date: 2024-07-26 DOI:10.1021/acsami.4c08710
Yupeng Xiao, Xiaoqian Hao, Tianle Li, Yangyang Mao, Tianjiao Zhu, Jinqi Zang, Yuqian Li, Wenju Wang
{"title":"多功能交联复合粘合剂实现了高能量密度锂离子电池硅基阳极的稳定性能。","authors":"Yupeng Xiao, Xiaoqian Hao, Tianle Li, Yangyang Mao, Tianjiao Zhu, Jinqi Zang, Yuqian Li, Wenju Wang","doi":"10.1021/acsami.4c08710","DOIUrl":null,"url":null,"abstract":"<p><p>The intrinsic volumetric stress during cycling is the main obstacle for developing Si-based materials as high-energy-density lithium-ion battery anodes. Elastic binders have been demonstrated as an efficient approach to alleviate the stress of Si. Herein, we design a tough 3D hard/soft polymeric network (LPTS) using lithiated poly(acrylic acid), silk sericin, and highly branched tannic acid. Covalent cross-linking provides a robust mechanical strength to endure the large stress. The formed multiple hydrogen bonds with bonding energies between 3.46 and 25 kcal mol<sup>-1</sup> can effectively dissipate the stress through sequential hydrogen bond disassociation. The multifunctional LPTS binder maintains the integrity of the Si-based electrodes during repeated discharging/charging. Additionally, Li<sup>+</sup> can be transferred via a Li-conducting group (-COOLi), thereby enhancing the ionic conductivity of electrodes. Consequently, the Si/LPTS electrode exhibits an improved initial Coulombic efficiency and excellent durability over 400 cycles. Meanwhile, this binder is also suitable for Si-C anodes, enabling stable cycling at a high areal capacity >3.6 mAh cm<sup>-2</sup> and delivering 72.2% capacity retention for the LFP||Si-C/LPTS full cell after 200 cycles. This study provides insight into developing efficient Si-based binders that are facile and low-cost for next-generation high-energy-density systems.</p>","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":" ","pages":"41036-41047"},"PeriodicalIF":8.2000,"publicationDate":"2024-08-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Multifunctional Cross-Linking Composite Binder Enables the Stable Performance of Si-Based Anodes for High-Energy-Density Lithium-Ion Batteries.\",\"authors\":\"Yupeng Xiao, Xiaoqian Hao, Tianle Li, Yangyang Mao, Tianjiao Zhu, Jinqi Zang, Yuqian Li, Wenju Wang\",\"doi\":\"10.1021/acsami.4c08710\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>The intrinsic volumetric stress during cycling is the main obstacle for developing Si-based materials as high-energy-density lithium-ion battery anodes. Elastic binders have been demonstrated as an efficient approach to alleviate the stress of Si. Herein, we design a tough 3D hard/soft polymeric network (LPTS) using lithiated poly(acrylic acid), silk sericin, and highly branched tannic acid. Covalent cross-linking provides a robust mechanical strength to endure the large stress. The formed multiple hydrogen bonds with bonding energies between 3.46 and 25 kcal mol<sup>-1</sup> can effectively dissipate the stress through sequential hydrogen bond disassociation. The multifunctional LPTS binder maintains the integrity of the Si-based electrodes during repeated discharging/charging. Additionally, Li<sup>+</sup> can be transferred via a Li-conducting group (-COOLi), thereby enhancing the ionic conductivity of electrodes. Consequently, the Si/LPTS electrode exhibits an improved initial Coulombic efficiency and excellent durability over 400 cycles. Meanwhile, this binder is also suitable for Si-C anodes, enabling stable cycling at a high areal capacity >3.6 mAh cm<sup>-2</sup> and delivering 72.2% capacity retention for the LFP||Si-C/LPTS full cell after 200 cycles. This study provides insight into developing efficient Si-based binders that are facile and low-cost for next-generation high-energy-density systems.</p>\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\" \",\"pages\":\"41036-41047\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2024-08-07\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.4c08710\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2024/7/26 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.4c08710","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/7/26 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

循环过程中的内在体积应力是开发硅基材料作为高能量密度锂离子电池阳极的主要障碍。弹性粘合剂已被证明是减轻硅应力的有效方法。在此,我们使用锂化聚丙烯酸、丝胶和高支链单宁酸设计了一种坚韧的三维硬/软聚合物网络(LPTS)。共价交联可提供强大的机械强度,以承受巨大的应力。所形成的多个氢键的键能介于 3.46 和 25 kcal mol-1 之间,可通过氢键的连续解离有效消散应力。多功能 LPTS 粘合剂可在反复放电/充电过程中保持硅基电极的完整性。此外,Li+ 可以通过锂导电基团(-COOLi)转移,从而增强电极的离子导电性。因此,Si/LPTS 电极的初始库仑效率得到了提高,并且在 400 次循环后仍具有出色的耐用性。同时,这种粘合剂也适用于 Si-C 阳极,可在高电容(大于 3.6 mAh cm-2)条件下实现稳定循环,在 200 次循环后,LFP||Si-C/LPTS 全电池的电容保持率为 72.2%。这项研究为开发适用于下一代高能量密度系统的高效硅基粘合剂提供了深入的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Multifunctional Cross-Linking Composite Binder Enables the Stable Performance of Si-Based Anodes for High-Energy-Density Lithium-Ion Batteries.

Multifunctional Cross-Linking Composite Binder Enables the Stable Performance of Si-Based Anodes for High-Energy-Density Lithium-Ion Batteries.

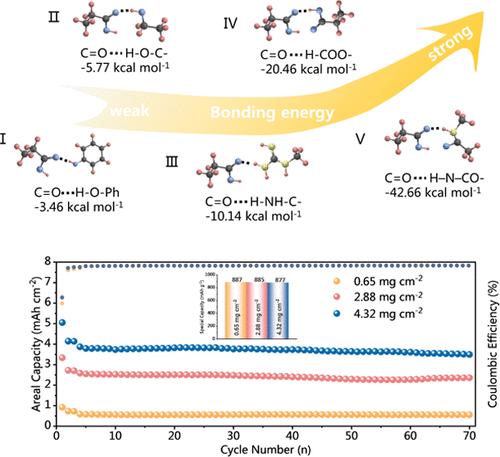

The intrinsic volumetric stress during cycling is the main obstacle for developing Si-based materials as high-energy-density lithium-ion battery anodes. Elastic binders have been demonstrated as an efficient approach to alleviate the stress of Si. Herein, we design a tough 3D hard/soft polymeric network (LPTS) using lithiated poly(acrylic acid), silk sericin, and highly branched tannic acid. Covalent cross-linking provides a robust mechanical strength to endure the large stress. The formed multiple hydrogen bonds with bonding energies between 3.46 and 25 kcal mol-1 can effectively dissipate the stress through sequential hydrogen bond disassociation. The multifunctional LPTS binder maintains the integrity of the Si-based electrodes during repeated discharging/charging. Additionally, Li+ can be transferred via a Li-conducting group (-COOLi), thereby enhancing the ionic conductivity of electrodes. Consequently, the Si/LPTS electrode exhibits an improved initial Coulombic efficiency and excellent durability over 400 cycles. Meanwhile, this binder is also suitable for Si-C anodes, enabling stable cycling at a high areal capacity >3.6 mAh cm-2 and delivering 72.2% capacity retention for the LFP||Si-C/LPTS full cell after 200 cycles. This study provides insight into developing efficient Si-based binders that are facile and low-cost for next-generation high-energy-density systems.
