疏水性(甲基)丙烯酸酯聚合物作为缓释肥料涂层减少养分沥滤的见解

IF 3.9 2区 化学 Q2 POLYMER SCIENCE
Asma Sofyane , Salima Atlas , Mohammed Lahcini , Elvira Vidović , Bruno Ameduri , Mustapha Raihane
{"title":"疏水性(甲基)丙烯酸酯聚合物作为缓释肥料涂层减少养分沥滤的见解","authors":"Asma Sofyane ,&nbsp;Salima Atlas ,&nbsp;Mohammed Lahcini ,&nbsp;Elvira Vidović ,&nbsp;Bruno Ameduri ,&nbsp;Mustapha Raihane","doi":"10.1039/d4py00573b","DOIUrl":null,"url":null,"abstract":"<div><p>To solve the problem of the low utilization rate of conventional fast-release water-soluble fertilizers and to minimize their negative impact on the environment, slow-release fertilizers (SRFs) have emerged as a sustainable solution to limit their losses, reduce fertilizer dosage and improve crop production. In this study, new hydrophobic (meth)acrylate polymers (poly(2,2,2-trifluoroethyle methacrylate) (PTFEMA) and poly(2-(perfluorohexyl)ethyl acrylate) (PPFEHEMA)) with different fluorinated side chains were synthesized by free radical polymerization and used as coatings for SFRs. These polymers were characterized by <sup>1</sup>H and <sup>19</sup>F NMR, FTIR, WCA, TGA and DSC. Compared to PTFEMA, PPFEHEMA with a higher content of F atoms displayed improved thermal stability and an elastomer property (<em>T</em><sub>g</sub> = −10 °C) leading to satisfactory film formation. Indeed, water contact angle (WCA) measurements were carried out on films of both materials: PPFEHEMA with WCA = 109° indicated a highly hydrophobic character with an excellent water-repellent surface, resulting in a coating layer. The use of these polymers as SFR coatings was explored using dip-coating. SEM and EDX mapping were performed to study the morphology of the coated fertilizer granules and showed the formation of a cohesive film with good adhesion between the DAP fertilizer and the coating films, limiting water diffusion. The release profiles of N and P nutrients were studied, and the corresponding release times increased with coating thickness (single layer: 1L or second layer: 2L). Compared to uncoated DAP granules which are totally solubilized after less than 2 h, DAP coated with 2L of PPFEHEMA shows the slowest release of N and P nutrients, and the times to reach maximum N and P releases were 30 and 38 times higher than those of uncoated DAP. The significant delay in the release of nutrients from DAP coated with PTFEMA or PPFEHEMA is consistent with nutrient demand during crop growth and increases the efficiency of fertilizer use and therefore enhances agricultural productivity.</p></div>","PeriodicalId":100,"journal":{"name":"Polymer Chemistry","volume":"15 33","pages":"Pages 3327-3340"},"PeriodicalIF":3.9000,"publicationDate":"2024-08-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.rsc.org/en/content/articlepdf/2024/py/d4py00573b?page=search","citationCount":"0","resultStr":"{\"title\":\"Insights into hydrophobic (meth)acrylate polymers as coating for slow-release fertilizers to reduce nutrient leaching†\",\"authors\":\"Asma Sofyane ,&nbsp;Salima Atlas ,&nbsp;Mohammed Lahcini ,&nbsp;Elvira Vidović ,&nbsp;Bruno Ameduri ,&nbsp;Mustapha Raihane\",\"doi\":\"10.1039/d4py00573b\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>To solve the problem of the low utilization rate of conventional fast-release water-soluble fertilizers and to minimize their negative impact on the environment, slow-release fertilizers (SRFs) have emerged as a sustainable solution to limit their losses, reduce fertilizer dosage and improve crop production. In this study, new hydrophobic (meth)acrylate polymers (poly(2,2,2-trifluoroethyle methacrylate) (PTFEMA) and poly(2-(perfluorohexyl)ethyl acrylate) (PPFEHEMA)) with different fluorinated side chains were synthesized by free radical polymerization and used as coatings for SFRs. These polymers were characterized by <sup>1</sup>H and <sup>19</sup>F NMR, FTIR, WCA, TGA and DSC. Compared to PTFEMA, PPFEHEMA with a higher content of F atoms displayed improved thermal stability and an elastomer property (<em>T</em><sub>g</sub> = −10 °C) leading to satisfactory film formation. Indeed, water contact angle (WCA) measurements were carried out on films of both materials: PPFEHEMA with WCA = 109° indicated a highly hydrophobic character with an excellent water-repellent surface, resulting in a coating layer. The use of these polymers as SFR coatings was explored using dip-coating. SEM and EDX mapping were performed to study the morphology of the coated fertilizer granules and showed the formation of a cohesive film with good adhesion between the DAP fertilizer and the coating films, limiting water diffusion. The release profiles of N and P nutrients were studied, and the corresponding release times increased with coating thickness (single layer: 1L or second layer: 2L). Compared to uncoated DAP granules which are totally solubilized after less than 2 h, DAP coated with 2L of PPFEHEMA shows the slowest release of N and P nutrients, and the times to reach maximum N and P releases were 30 and 38 times higher than those of uncoated DAP. The significant delay in the release of nutrients from DAP coated with PTFEMA or PPFEHEMA is consistent with nutrient demand during crop growth and increases the efficiency of fertilizer use and therefore enhances agricultural productivity.</p></div>\",\"PeriodicalId\":100,\"journal\":{\"name\":\"Polymer Chemistry\",\"volume\":\"15 33\",\"pages\":\"Pages 3327-3340\"},\"PeriodicalIF\":3.9000,\"publicationDate\":\"2024-08-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.rsc.org/en/content/articlepdf/2024/py/d4py00573b?page=search\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Polymer Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://www.sciencedirect.com/org/science/article/pii/S1759995424002869\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"POLYMER SCIENCE\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Polymer Chemistry","FirstCategoryId":"92","ListUrlMain":"https://www.sciencedirect.com/org/science/article/pii/S1759995424002869","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"POLYMER SCIENCE","Score":null,"Total":0}
引用次数: 0

摘要

为了解决传统水溶性速效肥料利用率低的问题,并最大限度地减少其对环境的负面影响,缓释肥料(SRF)作为一种可持续的解决方案应运而生,以限制其损失、减少肥料用量并提高作物产量。本研究采用自由基聚合法合成了具有不同氟化侧链的新型疏水性(甲基)丙烯酸酯聚合物(聚(2,2,2-三氟乙基甲基丙烯酸酯)(PTFEMA)和聚(2-(全氟己基)乙基丙烯酸酯)(PPFEHEMA),并将其用作缓释肥料的涂层。这些聚合物通过 1H 和 19F NMR、FTIR、WCA、TGA 和 DSC 进行了表征。与 PTFEMA 相比,F 原子含量较高的 PPFEHEMA 具有更好的热稳定性和弹性特性(Tg= -10 °C),成膜效果令人满意。事实上,对这两种材料的薄膜都进行了接触角测量(WCA),WCA= 109°的 PPFEHEMA 具有高度的疏水性,其表面具有极佳的憎水性,可形成涂层。研究人员采用浸涂法探讨了如何将这些聚合物用作 SFR 涂层。为了研究涂层肥料颗粒的形态,对其进行了 SEM 和 EDX 制图,结果表明在 DAP 肥料和涂层薄膜之间形成了具有良好附着力的内聚薄膜,从而限制了水分的扩散。对氮、磷养分的释放曲线进行了研究,相应的释放时间随包膜厚度(单层:1 升或第二层:2 升)的增加而增加。与未包覆的磷酸二铵颗粒相比,包覆了 2 升 PPFEHEMA 的磷酸二铵在不到 2 小时的时间内就完全溶解,而包覆了 2 升 PPFEHEMA 的磷酸二铵的氮、磷养分释放速度最慢,达到最大氮、磷释放量的时间分别是未包覆磷酸二铵的 30 倍和 38 倍。涂有 PTFEMA 和 PPFEHEMA 的磷酸二铵养分释放时间明显推迟,这与作物生长过程中的养分需求相一致,提高了肥料的使用效率,从而提高了农业生产率。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Insights into hydrophobic (meth)acrylate polymers as coating for slow-release fertilizers to reduce nutrient leaching†

Insights into hydrophobic (meth)acrylate polymers as coating for slow-release fertilizers to reduce nutrient leaching†

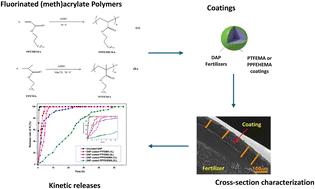

To solve the problem of the low utilization rate of conventional fast-release water-soluble fertilizers and to minimize their negative impact on the environment, slow-release fertilizers (SRFs) have emerged as a sustainable solution to limit their losses, reduce fertilizer dosage and improve crop production. In this study, new hydrophobic (meth)acrylate polymers (poly(2,2,2-trifluoroethyle methacrylate) (PTFEMA) and poly(2-(perfluorohexyl)ethyl acrylate) (PPFEHEMA)) with different fluorinated side chains were synthesized by free radical polymerization and used as coatings for SFRs. These polymers were characterized by 1H and 19F NMR, FTIR, WCA, TGA and DSC. Compared to PTFEMA, PPFEHEMA with a higher content of F atoms displayed improved thermal stability and an elastomer property (Tg = −10 °C) leading to satisfactory film formation. Indeed, water contact angle (WCA) measurements were carried out on films of both materials: PPFEHEMA with WCA = 109° indicated a highly hydrophobic character with an excellent water-repellent surface, resulting in a coating layer. The use of these polymers as SFR coatings was explored using dip-coating. SEM and EDX mapping were performed to study the morphology of the coated fertilizer granules and showed the formation of a cohesive film with good adhesion between the DAP fertilizer and the coating films, limiting water diffusion. The release profiles of N and P nutrients were studied, and the corresponding release times increased with coating thickness (single layer: 1L or second layer: 2L). Compared to uncoated DAP granules which are totally solubilized after less than 2 h, DAP coated with 2L of PPFEHEMA shows the slowest release of N and P nutrients, and the times to reach maximum N and P releases were 30 and 38 times higher than those of uncoated DAP. The significant delay in the release of nutrients from DAP coated with PTFEMA or PPFEHEMA is consistent with nutrient demand during crop growth and increases the efficiency of fertilizer use and therefore enhances agricultural productivity.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Polymer Chemistry
Polymer Chemistry POLYMER SCIENCE-
CiteScore
8.60
自引率
8.70%
发文量
535
审稿时长
1.7 months
期刊介绍: Polymer Chemistry welcomes submissions in all areas of polymer science that have a strong focus on macromolecular chemistry. Manuscripts may cover a broad range of fields, yet no direct application focus is required.
×
