Noninvasive analysis of overactive muscle structure and elasticity after botulinum toxin type A injection: a systematic review and meta-analysis.

Introduction: Injections of botulinum toxin type A (BoNT-A) are the first-line treatment for spastic muscle overactivity (MO). Some authors observed that BoNT-A injections lead to changes in muscle structure and muscle elasticity that are probably not completely reversible. This possible effect is critical, as it could lead to negative impacts on the effectiveness of BoNT-A interventions. Our study aimed to evaluate the current literature regarding changes in muscle elasticity and structure after BoNT-A injection, by diagnostic imaging, in neurological populations with MO. Our second objective was to pool all articles published on this topic in order to provide a quantitative synthesis of the data.

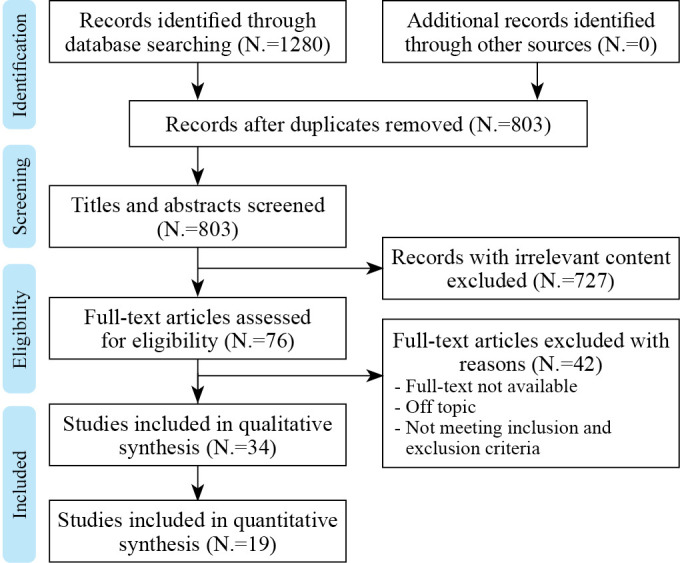

Evidence acquisition: A systematic search was conducted between October 2021 and April 2023 using different databases in accordance with PRISMA guidelines. Two independent reviewers screened articles for inclusion, extracted data, and evaluated methodological quality of the studies. A meta-analysis was performed to compare muscle elasticity and structure before and after BoNT-A injections.

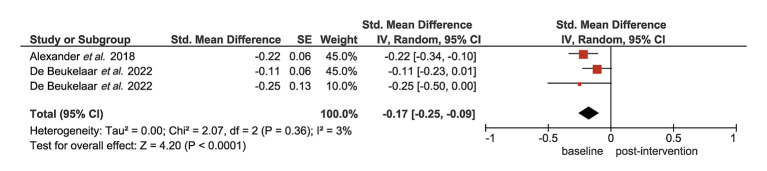

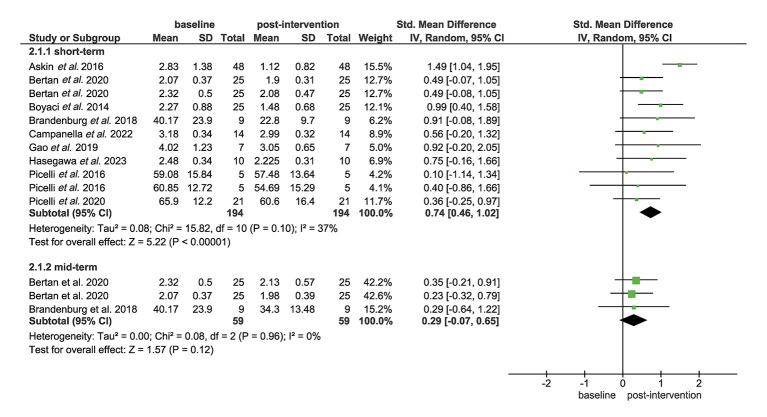

Evidence synthesis: A sample of 34 studies was selected for qualitative review and 19 studies for quantitative review. Meta-analysis of pre-post studies demonstrated significant improvement with a medium effect size (standardized mean difference=0.74; 95% CI 0.46-1.02; P<0.001) of muscle elasticity assessed by ultrasound elastography (USE) 4 weeks after BoNT-A injection. No statistically significant difference was found for muscle thickness, pennation angle, and muscle echo-intensity assessed by magnetic resonance imaging and/or ultrasonography at short-term. On the other hand, normalized muscle volume decreased with a small effect size (standardized mean difference = -0.17; 95% CI -0.25 - -0.09; P<0.001) 6 months after BoNT-A injection.

Conclusions: Muscle elasticity measured by USE improves with a temporary effect at short-term following BoNT-A injections. Synthesis of studies that assesses muscle structure is hindered by methodological differences between studies. However, based on a small amount of data, normalized muscle volume seems to decrease at long-term after BoNT-A injections in children with CP suggesting that the timing of re-injection should be considered with caution in this population. Further work should focus on the long-term effect of repeated injections on muscle structure and elasticity in neurological populations.
