Laura Barberis, Christiaan I. Versteeg, Johannes D. Meeldijk, Joseph A. Stewart, Bart D. Vandegehuchte and Petra E. de Jongh*,
{"title":"铜基催化剂的 K 和 Na 促进作用可实现高压低温反向水气变换","authors":"Laura Barberis, Christiaan I. Versteeg, Johannes D. Meeldijk, Joseph A. Stewart, Bart D. Vandegehuchte and Petra E. de Jongh*, ","doi":"10.1021/acscatal.4c02293","DOIUrl":null,"url":null,"abstract":"<p >The conversion of CO<sub>2</sub> and clean H<sub>2</sub> to CO and H<sub>2</sub>O via the reverse water–gas shift reaction (rWGS) yields sustainable synthesis gas and opens up routes to low-carbon fuels via subsequent conventional processes such as Fischer–Tropsch synthesis which typically takes place between 200 and 350 °C. However, other CO<sub>2</sub> hydrogenation products, such as methane and methanol, are thermodynamically much more stable at temperatures below 600–700 °C and at higher pressures. It is hence highly desirable to develop CO-selective rWGS catalysts that are active at low temperatures to facilitate process integration. We studied alkali-promoted Cu-based catalysts at varying pressure (20–40 bar(g)), temperature (180–260 °C), and H<sub>2</sub>:CO<sub>2</sub> feed ratio (1:1, 3:1, 9:1). The addition of either K or Na boosted the CO<sub>2</sub> conversion about 3-fold for carbon-supported Cu catalysts reaching equilibrium conversion at 260 °C, an effect that was not observed for silica-supported catalysts. Even at high pressures and high H<sub>2</sub> content in the feed, the selectivity to CO remained close to 100%, showing that the K and Na promoters completely suppressed methanol and methane formation in these systems. The remarkable overall performance of these catalysts opens perspectives on the low-temperature operation of the rWGS reaction to produce sustainable fuels and building blocks.</p>","PeriodicalId":9,"journal":{"name":"ACS Catalysis ","volume":"14 12","pages":"9188–9197"},"PeriodicalIF":13.1000,"publicationDate":"2024-05-31","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.acs.org/doi/epdf/10.1021/acscatal.4c02293","citationCount":"0","resultStr":"{\"title\":\"K and Na Promotion Enables High-Pressure Low-Temperature Reverse Water Gas Shift over Copper-Based Catalysts\",\"authors\":\"Laura Barberis, Christiaan I. Versteeg, Johannes D. Meeldijk, Joseph A. Stewart, Bart D. Vandegehuchte and Petra E. de Jongh*, \",\"doi\":\"10.1021/acscatal.4c02293\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The conversion of CO<sub>2</sub> and clean H<sub>2</sub> to CO and H<sub>2</sub>O via the reverse water–gas shift reaction (rWGS) yields sustainable synthesis gas and opens up routes to low-carbon fuels via subsequent conventional processes such as Fischer–Tropsch synthesis which typically takes place between 200 and 350 °C. However, other CO<sub>2</sub> hydrogenation products, such as methane and methanol, are thermodynamically much more stable at temperatures below 600–700 °C and at higher pressures. It is hence highly desirable to develop CO-selective rWGS catalysts that are active at low temperatures to facilitate process integration. We studied alkali-promoted Cu-based catalysts at varying pressure (20–40 bar(g)), temperature (180–260 °C), and H<sub>2</sub>:CO<sub>2</sub> feed ratio (1:1, 3:1, 9:1). The addition of either K or Na boosted the CO<sub>2</sub> conversion about 3-fold for carbon-supported Cu catalysts reaching equilibrium conversion at 260 °C, an effect that was not observed for silica-supported catalysts. Even at high pressures and high H<sub>2</sub> content in the feed, the selectivity to CO remained close to 100%, showing that the K and Na promoters completely suppressed methanol and methane formation in these systems. The remarkable overall performance of these catalysts opens perspectives on the low-temperature operation of the rWGS reaction to produce sustainable fuels and building blocks.</p>\",\"PeriodicalId\":9,\"journal\":{\"name\":\"ACS Catalysis \",\"volume\":\"14 12\",\"pages\":\"9188–9197\"},\"PeriodicalIF\":13.1000,\"publicationDate\":\"2024-05-31\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.acs.org/doi/epdf/10.1021/acscatal.4c02293\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Catalysis \",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acscatal.4c02293\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Catalysis ","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acscatal.4c02293","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0
摘要
通过反向水-气变换反应(rWGS)将二氧化碳和清洁的 H2 转化为 CO 和 H2O,可产生可持续的合成气,并通过后续的传统工艺(如通常在 200 至 350 °C 之间进行的费托合成)开辟了获得低碳燃料的途径。然而,其他二氧化碳加氢产物(如甲烷和甲醇)在低于 600-700 °C 的温度和更高的压力下热力学性质更为稳定。因此,开发在低温下具有活性的 CO 选择性 rWGS 催化剂以促进工艺集成是非常理想的。我们研究了在不同压力(20-40 bar(g))、温度(180-260 °C)和 H2:CO2 进料比(1:1、3:1、9:1)条件下的碱促进 Cu 基催化剂。添加 K 或 Na 可使碳支撑铜催化剂的二氧化碳转化率提高约 3 倍,并在 260 °C 时达到平衡转化率,而硅支撑催化剂则没有这种效果。即使在高压和进料中 H2 含量较高的情况下,对 CO 的选择性仍接近 100%,这表明 K 和 Na 促进剂完全抑制了这些体系中甲醇和甲烷的生成。这些催化剂出色的整体性能为 rWGS 反应的低温运行开辟了前景,可用于生产可持续燃料和建筑砌块。
K and Na Promotion Enables High-Pressure Low-Temperature Reverse Water Gas Shift over Copper-Based Catalysts

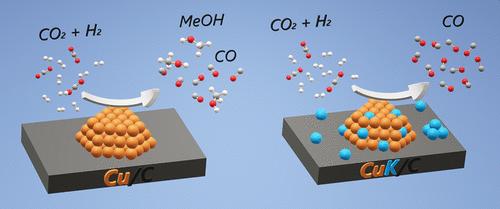

The conversion of CO2 and clean H2 to CO and H2O via the reverse water–gas shift reaction (rWGS) yields sustainable synthesis gas and opens up routes to low-carbon fuels via subsequent conventional processes such as Fischer–Tropsch synthesis which typically takes place between 200 and 350 °C. However, other CO2 hydrogenation products, such as methane and methanol, are thermodynamically much more stable at temperatures below 600–700 °C and at higher pressures. It is hence highly desirable to develop CO-selective rWGS catalysts that are active at low temperatures to facilitate process integration. We studied alkali-promoted Cu-based catalysts at varying pressure (20–40 bar(g)), temperature (180–260 °C), and H2:CO2 feed ratio (1:1, 3:1, 9:1). The addition of either K or Na boosted the CO2 conversion about 3-fold for carbon-supported Cu catalysts reaching equilibrium conversion at 260 °C, an effect that was not observed for silica-supported catalysts. Even at high pressures and high H2 content in the feed, the selectivity to CO remained close to 100%, showing that the K and Na promoters completely suppressed methanol and methane formation in these systems. The remarkable overall performance of these catalysts opens perspectives on the low-temperature operation of the rWGS reaction to produce sustainable fuels and building blocks.
