利用线性氮杂环配体构建四种基于γ-八钼酸盐的配位聚合物以传导质子

IF 3.4 2区化学 Q2 CHEMISTRY, MULTIDISCIPLINARY

Crystal Growth & Design Pub Date : 2024-05-28 DOI:10.1021/acs.cgd.4c00336

Ming-Guang Lv, Jing-Qi Zhang, Qing-Ge Li, Kun Gao, Swetha Andra, Zhen-Zhu Li, Hui-Jie Lun* and Ya-Min Li*,

{"title":"利用线性氮杂环配体构建四种基于γ-八钼酸盐的配位聚合物以传导质子","authors":"Ming-Guang Lv, Jing-Qi Zhang, Qing-Ge Li, Kun Gao, Swetha Andra, Zhen-Zhu Li, Hui-Jie Lun* and Ya-Min Li*, ","doi":"10.1021/acs.cgd.4c00336","DOIUrl":null,"url":null,"abstract":"POM-based coordination polymers are emerging as promising crystalline materials for proton conduction. Herein, we successfully synthesized four new γ-octamolybdate-based coordination polymers using the linear nitrogen heterocyclic ligand 1-(4H-1,2,4-triazole-4-yl)-4-(imidazole-1-yl) (benzene [tib]), which are designated as {[Co(Htib)2(Mo8O26)(H2O)2]·4H2O}n (1), {Zn2(tib)3(H2O)4(Mo8O26)]·6H2O}n (2), {[Ni2(tib)3(H2O)6(Mo8O26)]·2H2O}n (3), and {[Cu4(tib)2(H2O)4(Mo8O28)]·2H2O}n (4). Due to the diverse connection modes of γ-octamolybdate and tib ligand to metal ions, the dimensionalities of their structures vary from 1D and 2D to 3D. Compound 1 exhibits a 1D chain structure, with γ-{Mo8O26} sandwiched between Co(tib)2 units, while compound 2 develops into a 2D layered structure through the linkage of {Zn2Mo8O26} units with μ2-tib ligands. Compounds 3 and 4 display 3D structures, where the former is constructed from 1D {Mo8O26}n chains and Ni2(tib)2 units and the latter is formed by linking tib ligands to adjacent 2D layers, which are composed of the distinctive {Mo8O28} units and CuII ions. Moreover, abundant hydrogen bonds are present in four compounds, which is beneficial for proton transport. The proton conductivity values of compounds 1–4 are 6.10 × 10–4, 5.68 × 10–4, 6.14 × 10–4, and 1.30 × 10–3 S cm–1 at 98% RH and 358 K, respectively.","PeriodicalId":34,"journal":{"name":"Crystal Growth & Design","volume":"24 12","pages":"5116–5124"},"PeriodicalIF":3.4000,"publicationDate":"2024-05-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Construction of Four γ-Octamolybdate-Based Coordination Polymers Using Linear Nitrogen Heterocyclic Ligands for Proton Conduction\",\"authors\":\"Ming-Guang Lv, Jing-Qi Zhang, Qing-Ge Li, Kun Gao, Swetha Andra, Zhen-Zhu Li, Hui-Jie Lun* and Ya-Min Li*, \",\"doi\":\"10.1021/acs.cgd.4c00336\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"POM-based coordination polymers are emerging as promising crystalline materials for proton conduction. Herein, we successfully synthesized four new γ-octamolybdate-based coordination polymers using the linear nitrogen heterocyclic ligand 1-(4H-1,2,4-triazole-4-yl)-4-(imidazole-1-yl) (benzene [tib]), which are designated as {[Co(Htib)2(Mo8O26)(H2O)2]·4H2O}n (1), {Zn2(tib)3(H2O)4(Mo8O26)]·6H2O}n (2), {[Ni2(tib)3(H2O)6(Mo8O26)]·2H2O}n (3), and {[Cu4(tib)2(H2O)4(Mo8O28)]·2H2O}n (4). Due to the diverse connection modes of γ-octamolybdate and tib ligand to metal ions, the dimensionalities of their structures vary from 1D and 2D to 3D. Compound 1 exhibits a 1D chain structure, with γ-{Mo8O26} sandwiched between Co(tib)2 units, while compound 2 develops into a 2D layered structure through the linkage of {Zn2Mo8O26} units with μ2-tib ligands. Compounds 3 and 4 display 3D structures, where the former is constructed from 1D {Mo8O26}n chains and Ni2(tib)2 units and the latter is formed by linking tib ligands to adjacent 2D layers, which are composed of the distinctive {Mo8O28} units and CuII ions. Moreover, abundant hydrogen bonds are present in four compounds, which is beneficial for proton transport. The proton conductivity values of compounds 1–4 are 6.10 × 10–4, 5.68 × 10–4, 6.14 × 10–4, and 1.30 × 10–3 S cm–1 at 98% RH and 358 K, respectively.\",\"PeriodicalId\":34,\"journal\":{\"name\":\"Crystal Growth & Design\",\"volume\":\"24 12\",\"pages\":\"5116–5124\"},\"PeriodicalIF\":3.4000,\"publicationDate\":\"2024-05-28\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Crystal Growth & Design\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.cgd.4c00336\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Crystal Growth & Design","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.cgd.4c00336","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

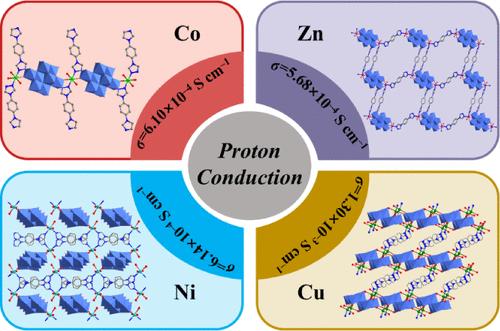

以 POM 为基质的配位聚合物正在成为一种有前途的质子传导晶体材料。在此，我们利用线性氮杂环配体 1-(4H-1,2,4-三唑-4-基)-4-(咪唑-1-基)（苯 [tib]）成功合成了四种新的γ-辛钼酸配位聚合物、它们分别被命名为{[Co(Htib)2(Mo8O26)(H2O)2]-4H2O}n (1)、{Zn2(tib)3(H2O)4(Mo8O26)]-6H2O}n (2)、{[Ni2(tib)3(H2O)6(Mo8O26)]-2H2O}n (3)和{[Cu4(tib)2(H2O)4(Mo8O28)]-2H2O}n (4)。由于γ-八钼酸盐和 tib 配体与金属离子的连接方式不同，它们的结构尺寸也从一维、二维到三维不等。化合物 1 呈一维链状结构，γ-{Mo8O26}夹在 Co(tib)2 单元之间；化合物 2 通过{Zn2Mo8O26}单元与μ2-tib 配体的连接形成二维层状结构。化合物 3 和 4 显示出三维结构，前者由一维{Mo8O26}n 链和 Ni2(tib)2 单元构成，后者则是通过将 tib 配体连接到相邻的二维层而形成的，后者由独特的{Mo8O28}单元和 CuII 离子构成。此外，四种化合物中存在丰富的氢键，有利于质子传输。在 98% RH 和 358 K 条件下，1-4 号化合物的质子电导率值分别为 6.10 × 10-4、5.68 × 10-4、6.14 × 10-4 和 1.30 × 10-3 S cm-1。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Construction of Four γ-Octamolybdate-Based Coordination Polymers Using Linear Nitrogen Heterocyclic Ligands for Proton Conduction

查看原文本刊更多论文

Construction of Four γ-Octamolybdate-Based Coordination Polymers Using Linear Nitrogen Heterocyclic Ligands for Proton Conduction

POM-based coordination polymers are emerging as promising crystalline materials for proton conduction. Herein, we successfully synthesized four new γ-octamolybdate-based coordination polymers using the linear nitrogen heterocyclic ligand 1-(4H-1,2,4-triazole-4-yl)-4-(imidazole-1-yl) (benzene [tib]), which are designated as {[Co(Htib)₂(Mo₈O₂₆)(H₂O)₂]·4H₂O}_n (1), {Zn₂(tib)₃(H₂O)₄(Mo₈O₂₆)]·6H₂O}_n (2), {[Ni₂(tib)₃(H₂O)₆(Mo₈O₂₆)]·2H₂O}_n (3), and {[Cu₄(tib)₂(H₂O)₄(Mo₈O₂₈)]·2H₂O}_n (4). Due to the diverse connection modes of γ-octamolybdate and tib ligand to metal ions, the dimensionalities of their structures vary from 1D and 2D to 3D. Compound 1 exhibits a 1D chain structure, with γ-{Mo₈O₂₆} sandwiched between Co(tib)₂ units, while compound 2 develops into a 2D layered structure through the linkage of {Zn₂Mo₈O₂₆} units with μ₂-tib ligands. Compounds 3 and 4 display 3D structures, where the former is constructed from 1D {Mo₈O₂₆}_n chains and Ni₂(tib)₂ units and the latter is formed by linking tib ligands to adjacent 2D layers, which are composed of the distinctive {Mo₈O₂₈} units and Cu^II ions. Moreover, abundant hydrogen bonds are present in four compounds, which is beneficial for proton transport. The proton conductivity values of compounds 1–4 are 6.10 × 10^–4, 5.68 × 10^–4, 6.14 × 10^–4, and 1.30 × 10^–3 S cm^–1 at 98% RH and 358 K, respectively.
