超卤化物-阴离子-催化剂重整双极操纵,实现长寿命能量型锌||卤素电池。

IF 9.1 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Hongqing Li, Jintu Qi, Yongchao Tang*, Guigui Liu, Jianping Yan, Zhenfeng Feng, Yue Wei, Qi Yang, Minghui Ye, Yufei Zhang, Zhipeng Wen, Xiaoqing Liu and Cheng Chao Li*,
{"title":"超卤化物-阴离子-催化剂重整双极操纵,实现长寿命能量型锌||卤素电池。","authors":"Hongqing Li,&nbsp;Jintu Qi,&nbsp;Yongchao Tang*,&nbsp;Guigui Liu,&nbsp;Jianping Yan,&nbsp;Zhenfeng Feng,&nbsp;Yue Wei,&nbsp;Qi Yang,&nbsp;Minghui Ye,&nbsp;Yufei Zhang,&nbsp;Zhipeng Wen,&nbsp;Xiaoqing Liu and Cheng Chao Li*,&nbsp;","doi":"10.1021/acs.nanolett.4c00198","DOIUrl":null,"url":null,"abstract":"<p >Neutrophilic superhalide-anion-triggered chalcogen conversion-based Zn batteries, despite latent high-energy merit, usually suffer from a short lifespan caused by dendrite growth and shuttle effect. Here, a superhalide-anion-motivator reforming strategy is initiated to simultaneously manipulate the anode interface and Se conversion intermediates, realizing a bipolar regulation toward longevous energy-type Zn batteries. With ZnF<sub>2</sub> chaotropic additives, the original large-radii superhalide zincate anion species in ionic liquid (IL) electrolytes are split into small F-containing species, boosting the formation of robust solid electrolyte interphases (SEI) for Zn dendrite inhibition. Simultaneously, ion radius reduced multiple F-containing Se conversion intermediates form, enhancing the interion interaction of charged products to suppress the shuttle effect. Consequently, Zn||Se batteries deliver a ca. 20-fold prolonged lifespan (2000 cycles) at 1 A g<sup>–1</sup> and high energy/power density of 416.7 Wh kg<sub>Se</sub><sup>–1</sup>/1.89 kW kg<sub>Se</sub><sup>–1</sup>, outperforming those in F-free counterparts. Pouch cells with distinct plateaus and durable cyclability further substantiate the practicality of this design.</p>","PeriodicalId":53,"journal":{"name":"Nano Letters","volume":"24 22","pages":"6465–6473"},"PeriodicalIF":9.1000,"publicationDate":"2024-05-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Superhalide-Anion-Motivator Reforming-Enabled Bipolar Manipulation toward Longevous Energy-Type Zn||Chalcogen Batteries\",\"authors\":\"Hongqing Li,&nbsp;Jintu Qi,&nbsp;Yongchao Tang*,&nbsp;Guigui Liu,&nbsp;Jianping Yan,&nbsp;Zhenfeng Feng,&nbsp;Yue Wei,&nbsp;Qi Yang,&nbsp;Minghui Ye,&nbsp;Yufei Zhang,&nbsp;Zhipeng Wen,&nbsp;Xiaoqing Liu and Cheng Chao Li*,&nbsp;\",\"doi\":\"10.1021/acs.nanolett.4c00198\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Neutrophilic superhalide-anion-triggered chalcogen conversion-based Zn batteries, despite latent high-energy merit, usually suffer from a short lifespan caused by dendrite growth and shuttle effect. Here, a superhalide-anion-motivator reforming strategy is initiated to simultaneously manipulate the anode interface and Se conversion intermediates, realizing a bipolar regulation toward longevous energy-type Zn batteries. With ZnF<sub>2</sub> chaotropic additives, the original large-radii superhalide zincate anion species in ionic liquid (IL) electrolytes are split into small F-containing species, boosting the formation of robust solid electrolyte interphases (SEI) for Zn dendrite inhibition. Simultaneously, ion radius reduced multiple F-containing Se conversion intermediates form, enhancing the interion interaction of charged products to suppress the shuttle effect. Consequently, Zn||Se batteries deliver a ca. 20-fold prolonged lifespan (2000 cycles) at 1 A g<sup>–1</sup> and high energy/power density of 416.7 Wh kg<sub>Se</sub><sup>–1</sup>/1.89 kW kg<sub>Se</sub><sup>–1</sup>, outperforming those in F-free counterparts. Pouch cells with distinct plateaus and durable cyclability further substantiate the practicality of this design.</p>\",\"PeriodicalId\":53,\"journal\":{\"name\":\"Nano Letters\",\"volume\":\"24 22\",\"pages\":\"6465–6473\"},\"PeriodicalIF\":9.1000,\"publicationDate\":\"2024-05-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nano Letters\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.nanolett.4c00198\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Letters","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.nanolett.4c00198","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

中性超卤化物-阴离子触发的铬转化型锌电池尽管具有潜在的高能量优点,但通常会因枝晶生长和穿梭效应而导致寿命短。在此,我们采用超卤化物-阴离子-激励重整策略,同时操纵阳极界面和硒转化中间体,实现了对长寿命型锌电池的双极调节。利用 ZnF2 各向混沌添加剂,离子液体(IL)电解质中原有的大辐射超卤化物锌酸阴离子物种被分裂成含 F 的小物种,从而促进了用于抑制锌枝晶的坚固固体电解质相间层(SEI)的形成。同时,离子半径减小,形成多个含 F 的 Se 转换中间体,增强了带电产物的离子间相互作用,从而抑制了穿梭效应。因此,锌||硒电池在 1 A g-1 电流条件下的寿命延长了约 20 倍(2000 次循环),能量/功率密度高达 416.7 Wh kgSe-1/1.89 kW kgSe-1,优于不含氟的电池。具有明显高原和持久循环性的袋式电池进一步证实了这种设计的实用性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Superhalide-Anion-Motivator Reforming-Enabled Bipolar Manipulation toward Longevous Energy-Type Zn||Chalcogen Batteries

Superhalide-Anion-Motivator Reforming-Enabled Bipolar Manipulation toward Longevous Energy-Type Zn||Chalcogen Batteries

Superhalide-Anion-Motivator Reforming-Enabled Bipolar Manipulation toward Longevous Energy-Type Zn||Chalcogen Batteries

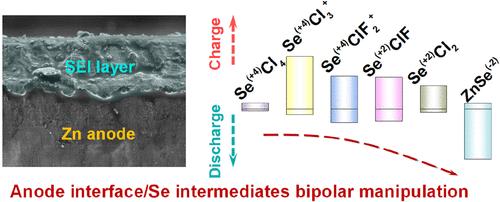

Neutrophilic superhalide-anion-triggered chalcogen conversion-based Zn batteries, despite latent high-energy merit, usually suffer from a short lifespan caused by dendrite growth and shuttle effect. Here, a superhalide-anion-motivator reforming strategy is initiated to simultaneously manipulate the anode interface and Se conversion intermediates, realizing a bipolar regulation toward longevous energy-type Zn batteries. With ZnF2 chaotropic additives, the original large-radii superhalide zincate anion species in ionic liquid (IL) electrolytes are split into small F-containing species, boosting the formation of robust solid electrolyte interphases (SEI) for Zn dendrite inhibition. Simultaneously, ion radius reduced multiple F-containing Se conversion intermediates form, enhancing the interion interaction of charged products to suppress the shuttle effect. Consequently, Zn||Se batteries deliver a ca. 20-fold prolonged lifespan (2000 cycles) at 1 A g–1 and high energy/power density of 416.7 Wh kgSe–1/1.89 kW kgSe–1, outperforming those in F-free counterparts. Pouch cells with distinct plateaus and durable cyclability further substantiate the practicality of this design.
