Structural, Optical, and Mechanical Insights into Cellulose Nanocrystal Chiral Nematic Film Engineering by Two Assembly Techniques

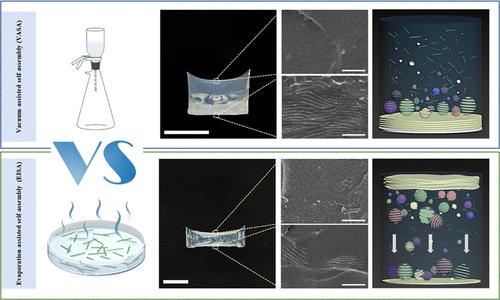

Iridescent cellulose nanocrystal (CNC) films with chiral nematic nanostructures exhibit great potential in optical devices, sensors, painting, and anticounterfeiting applications. CNCs can assemble into a chiral nematic liquid crystal structure by evaporation-assisted self-assembly (EISA) and vacuum-assisted self-assembly (VASA) techniques. However, there is a lack of comprehensive examinations of their structure–property correlations, which are essential for fabricating materials with unique properties. In this work, we gained insights into the optical, mechanical, and structural differences of CNC films engineered using the two techniques. In contrast to the random self-assembly at the liquid–air interface in EISA, the continuous external pressure in the VASA process forces CNCs to assemble at the filter–liquid interface. This results in fewer defects in the interfaces between tactoids and highly ordered cholesteric phases. Owing to the distinct CNC assembly behaviors, the films prepared by these two methods show great differences in the nanostructure, microstructure, and macroscopic morphology. Consequently, the highly ordered cholesteric structure gives VASA-CNC films a more uniform structural color and enhanced mechanical performance. These fundamental understandings of the relationship of structure–property nanoengineering through various assembly techniques are essential for designing and constructing high-performance chiral iridescent CNC materials.
