利用两亲性聚合物添加剂实现缺陷钝化,从而抑制电荷重组的 Perovskite 太阳能电池

IF 7.3 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Lili Ke*, Xin Xiong, Ding Hu*, Gang Liu, Conghua Zhou, Hanyue Chen, Ling Li and Hongxing Li*,
{"title":"利用两亲性聚合物添加剂实现缺陷钝化,从而抑制电荷重组的 Perovskite 太阳能电池","authors":"Lili Ke*,&nbsp;Xin Xiong,&nbsp;Ding Hu*,&nbsp;Gang Liu,&nbsp;Conghua Zhou,&nbsp;Hanyue Chen,&nbsp;Ling Li and Hongxing Li*,&nbsp;","doi":"10.1021/acssuschemeng.4c00806","DOIUrl":null,"url":null,"abstract":"<p >Harmful defects are typically major performance and stability degrading factors in perovskite solar cells (PSCs). In order to prevent defect formation and ion migration, some small molecule additives are often used in PSCs, which, however, are highly volatile and very likely to drift. In this work, an amphiphilic polymer, p(HEMA-<i>co</i>-DEAMA), is synthesized and doped into organic salt solution. Through Lewis base coordination and hydrogen bonding, it can be chemically bonded to a perovskite. Further analysis reveals that trap density is significantly reduced after simple treatment with p(HEMA-<i>co</i>-DEAMA), suppressing charge recombination and boosting the power conversion efficiency (PCE) of PSCs. Moreover, the ordered long chain structure of p(HEMA-<i>co</i>-DEAMA) forms a gridlike crystal, which stitches the grain boundaries and thus modulates the growth of perovskite crystals therein. Importantly, the exposure of the long alkyl chains on p(HEMA-<i>co</i>-DEAMA) also provides a hydrophobic coating, which protects the perovskite film from environmental humidity and further enhances the operation stability. Therefore, the unpackaged devices modified with p(HEMA-<i>co</i>-DEAMA) exhibit excellent stability with retaining more than 90% of the original PCE when stored for 1000 h in an air environment, indicating the viability of our strategies.</p>","PeriodicalId":25,"journal":{"name":"ACS Sustainable Chemistry & Engineering","volume":"12 19","pages":"7434–7442"},"PeriodicalIF":7.3000,"publicationDate":"2024-04-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Defect Passivation Enabled by Amphiphilic Polymer Additives for Perovskite Solar Cells with Suppressed Charge Recombination\",\"authors\":\"Lili Ke*,&nbsp;Xin Xiong,&nbsp;Ding Hu*,&nbsp;Gang Liu,&nbsp;Conghua Zhou,&nbsp;Hanyue Chen,&nbsp;Ling Li and Hongxing Li*,&nbsp;\",\"doi\":\"10.1021/acssuschemeng.4c00806\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Harmful defects are typically major performance and stability degrading factors in perovskite solar cells (PSCs). In order to prevent defect formation and ion migration, some small molecule additives are often used in PSCs, which, however, are highly volatile and very likely to drift. In this work, an amphiphilic polymer, p(HEMA-<i>co</i>-DEAMA), is synthesized and doped into organic salt solution. Through Lewis base coordination and hydrogen bonding, it can be chemically bonded to a perovskite. Further analysis reveals that trap density is significantly reduced after simple treatment with p(HEMA-<i>co</i>-DEAMA), suppressing charge recombination and boosting the power conversion efficiency (PCE) of PSCs. Moreover, the ordered long chain structure of p(HEMA-<i>co</i>-DEAMA) forms a gridlike crystal, which stitches the grain boundaries and thus modulates the growth of perovskite crystals therein. Importantly, the exposure of the long alkyl chains on p(HEMA-<i>co</i>-DEAMA) also provides a hydrophobic coating, which protects the perovskite film from environmental humidity and further enhances the operation stability. Therefore, the unpackaged devices modified with p(HEMA-<i>co</i>-DEAMA) exhibit excellent stability with retaining more than 90% of the original PCE when stored for 1000 h in an air environment, indicating the viability of our strategies.</p>\",\"PeriodicalId\":25,\"journal\":{\"name\":\"ACS Sustainable Chemistry & Engineering\",\"volume\":\"12 19\",\"pages\":\"7434–7442\"},\"PeriodicalIF\":7.3000,\"publicationDate\":\"2024-04-26\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Sustainable Chemistry & Engineering\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acssuschemeng.4c00806\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Sustainable Chemistry & Engineering","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acssuschemeng.4c00806","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

有害缺陷通常是降低过氧化物太阳能电池(PSCs)性能和稳定性的主要因素。为了防止缺陷形成和离子迁移,一些小分子添加剂通常被用于 PSC 中,但这些添加剂极易挥发,而且很容易漂移。本研究合成了一种两亲性聚合物 p(HEMA-co-DEAMA),并将其掺入有机盐溶液中。通过路易斯碱配位和氢键,它可以化学键合到过氧化物晶石上。进一步分析表明,使用 p(HEMA-co-DEAMA)进行简单处理后,阱密度显著降低,从而抑制了电荷重组,提高了 PSC 的功率转换效率(PCE)。此外,p(HEMA-co-DEAMA)的有序长链结构形成了网格状晶体,它缝合了晶界,从而调节了其中包晶晶体的生长。重要的是,p(HEMA-co-DEAMA) 上长烷基链的暴露还提供了一层疏水涂层,可保护过氧化物薄膜不受环境湿度的影响,并进一步提高了运行稳定性。因此,用 p(HEMA-co-DEAMA)改性的无包装器件在空气环境中存放 1000 小时后,仍能保持 90% 以上的原始 PCE,显示了我们策略的可行性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Defect Passivation Enabled by Amphiphilic Polymer Additives for Perovskite Solar Cells with Suppressed Charge Recombination

Defect Passivation Enabled by Amphiphilic Polymer Additives for Perovskite Solar Cells with Suppressed Charge Recombination

Defect Passivation Enabled by Amphiphilic Polymer Additives for Perovskite Solar Cells with Suppressed Charge Recombination

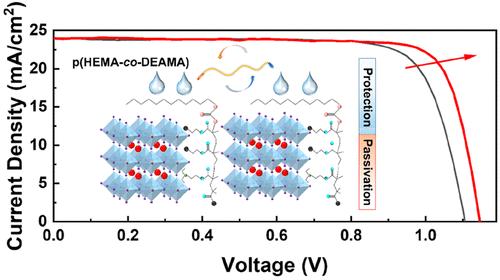

Harmful defects are typically major performance and stability degrading factors in perovskite solar cells (PSCs). In order to prevent defect formation and ion migration, some small molecule additives are often used in PSCs, which, however, are highly volatile and very likely to drift. In this work, an amphiphilic polymer, p(HEMA-co-DEAMA), is synthesized and doped into organic salt solution. Through Lewis base coordination and hydrogen bonding, it can be chemically bonded to a perovskite. Further analysis reveals that trap density is significantly reduced after simple treatment with p(HEMA-co-DEAMA), suppressing charge recombination and boosting the power conversion efficiency (PCE) of PSCs. Moreover, the ordered long chain structure of p(HEMA-co-DEAMA) forms a gridlike crystal, which stitches the grain boundaries and thus modulates the growth of perovskite crystals therein. Importantly, the exposure of the long alkyl chains on p(HEMA-co-DEAMA) also provides a hydrophobic coating, which protects the perovskite film from environmental humidity and further enhances the operation stability. Therefore, the unpackaged devices modified with p(HEMA-co-DEAMA) exhibit excellent stability with retaining more than 90% of the original PCE when stored for 1000 h in an air environment, indicating the viability of our strategies.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Sustainable Chemistry & Engineering
ACS Sustainable Chemistry & Engineering CHEMISTRY, MULTIDISCIPLINARY-ENGINEERING, CHEMICAL
CiteScore
13.80
自引率
4.80%
发文量
1470
审稿时长
1.7 months
期刊介绍: ACS Sustainable Chemistry & Engineering is a prestigious weekly peer-reviewed scientific journal published by the American Chemical Society. Dedicated to advancing the principles of green chemistry and green engineering, it covers a wide array of research topics including green chemistry, green engineering, biomass, alternative energy, and life cycle assessment. The journal welcomes submissions in various formats, including Letters, Articles, Features, and Perspectives (Reviews), that address the challenges of sustainability in the chemical enterprise and contribute to the advancement of sustainable practices. Join us in shaping the future of sustainable chemistry and engineering.
×
