Faisal Rasool, Bilal Masood Pirzada, Shamraiz Hussain Talib, Tamador Alkhidir, Dalaver H. Anjum, Sharmarke Mohamed and Ahsanulhaq Qurashi*,
{"title":"原位生长界面纳米工程 2D-2D WS2/Ti3C2Tx MXene 以提高氢气进化反应的性能。","authors":"Faisal Rasool, Bilal Masood Pirzada, Shamraiz Hussain Talib, Tamador Alkhidir, Dalaver H. Anjum, Sharmarke Mohamed and Ahsanulhaq Qurashi*, ","doi":"10.1021/acsami.3c11642","DOIUrl":null,"url":null,"abstract":"<p >In line with current research goals involving water splitting for hydrogen production, this work aims to develop a noble-metal-free electrocatalyst for a superior hydrogen evolution reaction (HER). A single-step interfacial activation of Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene layers was employed by uniformly growing embedded WS<sub>2</sub> two-dimensional (2D) nanopetal-like sheets through a facile solvothermal method. We exploited the interactions between WS<sub>2</sub> nanopetals and Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> nanolayers to enhance HER performance. A much safer method was adopted to synthesize the base material, Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene, by etching its MAX phase through mild in situ HF formation. Consequently, WS<sub>2</sub> nanopetals were grown between the MXene layers and on edges in a one-step solvothermal method, resulting in a 2D–2D nanocomposite with enhanced interactions between WS<sub>2</sub> and Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene. The resulting 2D–2D nanocomposite was thoroughly characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), Raman, Fourier transform infrared (FTIR), and X-ray photoelectron spectroscopy (XPS) analyses before being utilized as working electrodes for HER application. Among various loadings of WS<sub>2</sub> into MXene, the 5% WS<sub>2</sub>–Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene sample exhibited the best activity toward HER, with a low overpotential value of 66.0 mV at a current density of −10 mA cm<sup>–2</sup> in a 1 M KOH electrolyte and a remarkable Tafel slope of 46.7 mV·dec<sup>–1</sup>. The intercalation of 2D WS<sub>2</sub> nanopetals enhances active sites for hydrogen adsorption, promotes charge transfer, and helps attain an electrochemical stability of 50 h, boosting HER reduction potential. Furthermore, theoretical calculations confirmed that 2D–2D interactions between 1T/2H-WS<sub>2</sub> and Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene realign the active centers for HER, thereby reducing the overpotential barrier.</p>","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"16 11","pages":"14229–14242"},"PeriodicalIF":8.2000,"publicationDate":"2024-03-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.acs.org/doi/epdf/10.1021/acsami.3c11642","citationCount":"0","resultStr":"{\"title\":\"In Situ Growth of Interfacially Nanoengineered 2D–2D WS2/Ti3C2Tx MXene for the Enhanced Performance of Hydrogen Evolution Reactions\",\"authors\":\"Faisal Rasool, Bilal Masood Pirzada, Shamraiz Hussain Talib, Tamador Alkhidir, Dalaver H. Anjum, Sharmarke Mohamed and Ahsanulhaq Qurashi*, \",\"doi\":\"10.1021/acsami.3c11642\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >In line with current research goals involving water splitting for hydrogen production, this work aims to develop a noble-metal-free electrocatalyst for a superior hydrogen evolution reaction (HER). A single-step interfacial activation of Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene layers was employed by uniformly growing embedded WS<sub>2</sub> two-dimensional (2D) nanopetal-like sheets through a facile solvothermal method. We exploited the interactions between WS<sub>2</sub> nanopetals and Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> nanolayers to enhance HER performance. A much safer method was adopted to synthesize the base material, Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene, by etching its MAX phase through mild in situ HF formation. Consequently, WS<sub>2</sub> nanopetals were grown between the MXene layers and on edges in a one-step solvothermal method, resulting in a 2D–2D nanocomposite with enhanced interactions between WS<sub>2</sub> and Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene. The resulting 2D–2D nanocomposite was thoroughly characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), Raman, Fourier transform infrared (FTIR), and X-ray photoelectron spectroscopy (XPS) analyses before being utilized as working electrodes for HER application. Among various loadings of WS<sub>2</sub> into MXene, the 5% WS<sub>2</sub>–Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene sample exhibited the best activity toward HER, with a low overpotential value of 66.0 mV at a current density of −10 mA cm<sup>–2</sup> in a 1 M KOH electrolyte and a remarkable Tafel slope of 46.7 mV·dec<sup>–1</sup>. The intercalation of 2D WS<sub>2</sub> nanopetals enhances active sites for hydrogen adsorption, promotes charge transfer, and helps attain an electrochemical stability of 50 h, boosting HER reduction potential. Furthermore, theoretical calculations confirmed that 2D–2D interactions between 1T/2H-WS<sub>2</sub> and Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene realign the active centers for HER, thereby reducing the overpotential barrier.</p>\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"16 11\",\"pages\":\"14229–14242\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2024-03-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.acs.org/doi/epdf/10.1021/acsami.3c11642\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsami.3c11642\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsami.3c11642","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
为了与当前涉及水分离制氢的研究目标保持一致,本研究旨在开发一种不含惰性金属的电催化剂,以实现卓越的氢进化反应(HER)。通过一种简便的溶解热法均匀地生长嵌入式 WS2 二维(2D)纳米金属片,对 Ti3C2Tx MXene 层进行了一步界面活化。我们利用 WS2 纳米金属和 Ti3C2Tx 纳米层之间的相互作用来提高 HER 性能。我们采用了一种更为安全的方法来合成基础材料 Ti3C2Tx MXene,即通过温和的原位高频形成来蚀刻其 MAX 相。因此,WS2 纳米金属通过一步溶热法在 MXene 层之间和边缘生长,形成了一种 2D-2D 纳米复合材料,增强了 WS2 和 Ti3C2Tx MXene 之间的相互作用。利用 X 射线衍射 (XRD)、扫描电子显微镜 (SEM)、透射电子显微镜 (TEM)、拉曼 (Raman)、傅立叶变换红外 (FTIR) 和 X 射线光电子能谱 (XPS) 分析对得到的 2D-2D 纳米复合材料进行了全面表征,然后将其用作 HER 应用的工作电极。在 MXene 中的各种 WS2 负载中,5% WS2-Ti3C2Tx MXene 样品表现出最佳的 HER 活性,在 1 M KOH 电解质中,电流密度为 -10 mA cm-2 时,过电位值低至 66.0 mV,Tafel 斜率高达 46.7 mV-dec-1。二维 WS2 纳米金属的插层增强了氢吸附的活性位点,促进了电荷转移,并有助于达到 50 小时的电化学稳定性,从而提高氢还原电位。此外,理论计算证实,1T/2H-WS2 和 Ti3C2Tx MXene 之间的 2D-2D 相互作用重新调整了氢还原的活性中心,从而降低了过电位势垒。
In Situ Growth of Interfacially Nanoengineered 2D–2D WS2/Ti3C2Tx MXene for the Enhanced Performance of Hydrogen Evolution Reactions

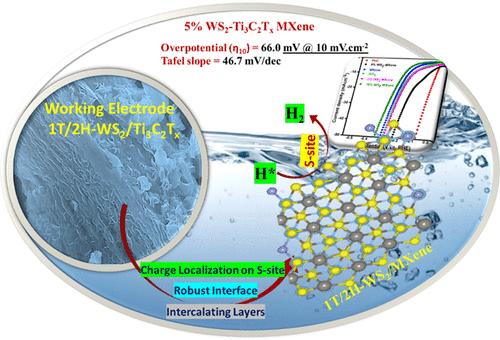

In line with current research goals involving water splitting for hydrogen production, this work aims to develop a noble-metal-free electrocatalyst for a superior hydrogen evolution reaction (HER). A single-step interfacial activation of Ti3C2Tx MXene layers was employed by uniformly growing embedded WS2 two-dimensional (2D) nanopetal-like sheets through a facile solvothermal method. We exploited the interactions between WS2 nanopetals and Ti3C2Tx nanolayers to enhance HER performance. A much safer method was adopted to synthesize the base material, Ti3C2Tx MXene, by etching its MAX phase through mild in situ HF formation. Consequently, WS2 nanopetals were grown between the MXene layers and on edges in a one-step solvothermal method, resulting in a 2D–2D nanocomposite with enhanced interactions between WS2 and Ti3C2Tx MXene. The resulting 2D–2D nanocomposite was thoroughly characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), Raman, Fourier transform infrared (FTIR), and X-ray photoelectron spectroscopy (XPS) analyses before being utilized as working electrodes for HER application. Among various loadings of WS2 into MXene, the 5% WS2–Ti3C2Tx MXene sample exhibited the best activity toward HER, with a low overpotential value of 66.0 mV at a current density of −10 mA cm–2 in a 1 M KOH electrolyte and a remarkable Tafel slope of 46.7 mV·dec–1. The intercalation of 2D WS2 nanopetals enhances active sites for hydrogen adsorption, promotes charge transfer, and helps attain an electrochemical stability of 50 h, boosting HER reduction potential. Furthermore, theoretical calculations confirmed that 2D–2D interactions between 1T/2H-WS2 and Ti3C2Tx MXene realign the active centers for HER, thereby reducing the overpotential barrier.
