改进空气处理反相 FAPbI3 Perovskite 太阳能电池的双埋界面工程。

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
ACS Applied Materials & Interfaces Pub Date : 2024-12-11 Epub Date: 2024-02-15 DOI:10.1021/acsami.3c17441
Li Cao, Yu Tong, Yewen Ke, Yali Chen, Yufeng Li, Hongqiang Wang, Kun Wang
{"title":"改进空气处理反相 FAPbI3 Perovskite 太阳能电池的双埋界面工程。","authors":"Li Cao, Yu Tong, Yewen Ke, Yali Chen, Yufeng Li, Hongqiang Wang, Kun Wang","doi":"10.1021/acsami.3c17441","DOIUrl":null,"url":null,"abstract":"<p><p>Fabricating perovskite solar cells (PSCs) in an ambient environment provides low-cost preparation routes for solar cells that are suitable for large-scale production. Compared with methylammonium (MA)- based perovskite materials, formamidinium lead iodide (FAPbI<sub>3</sub>) possesses a more favorable bandgap for light harvesting and better thermostability. However, the phase transition from the α-phase to the δ-phase easily occurs, making it challenging for ambient-air processing. Herein, we develop a buried interface engineering strategy via two molecules including 1,4-bis(diphenylphosphino)butane (DPPB) as well as [4-(3,6-dimethyl-9<i>H</i>-carbazol-9-yl)butyl] phosphonic acid (Me-4PACz) to optimize air-processed inverted FAPbI<sub>3</sub> PSCs. This strategy regulates the crystallization process of the air-fabricated FAPbI<sub>3</sub> perovskite film, leading to a purer α-phase with significantly enhanced crystallinity and enlarged grain sizes. Apart from improving the bulk perovskite film, the defects at the NiO<sub><i>x</i></sub>/perovskite interface are passivated, and the energy levels are better matched in the modified device, which facilitates efficient carrier extraction. Resultantly, the target device processed in the open air achieves a dramatically improved power conversion efficiency from 11.37% to 18.45%, in association with an enhanced device stability.</p>","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":" ","pages":"66865-66873"},"PeriodicalIF":8.2000,"publicationDate":"2024-12-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Dual Buried Interface Engineering for Improving Air-Processed Inverted FAPbI<sub>3</sub> Perovskite Solar Cells.\",\"authors\":\"Li Cao, Yu Tong, Yewen Ke, Yali Chen, Yufeng Li, Hongqiang Wang, Kun Wang\",\"doi\":\"10.1021/acsami.3c17441\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>Fabricating perovskite solar cells (PSCs) in an ambient environment provides low-cost preparation routes for solar cells that are suitable for large-scale production. Compared with methylammonium (MA)- based perovskite materials, formamidinium lead iodide (FAPbI<sub>3</sub>) possesses a more favorable bandgap for light harvesting and better thermostability. However, the phase transition from the α-phase to the δ-phase easily occurs, making it challenging for ambient-air processing. Herein, we develop a buried interface engineering strategy via two molecules including 1,4-bis(diphenylphosphino)butane (DPPB) as well as [4-(3,6-dimethyl-9<i>H</i>-carbazol-9-yl)butyl] phosphonic acid (Me-4PACz) to optimize air-processed inverted FAPbI<sub>3</sub> PSCs. This strategy regulates the crystallization process of the air-fabricated FAPbI<sub>3</sub> perovskite film, leading to a purer α-phase with significantly enhanced crystallinity and enlarged grain sizes. Apart from improving the bulk perovskite film, the defects at the NiO<sub><i>x</i></sub>/perovskite interface are passivated, and the energy levels are better matched in the modified device, which facilitates efficient carrier extraction. Resultantly, the target device processed in the open air achieves a dramatically improved power conversion efficiency from 11.37% to 18.45%, in association with an enhanced device stability.</p>\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\" \",\"pages\":\"66865-66873\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2024-12-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.3c17441\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2024/2/15 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.3c17441","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/2/15 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

在环境中制造透辉石太阳能电池(PSCs)为太阳能电池提供了适合大规模生产的低成本制备途径。与基于甲基铵(MA)的透晶材料相比,甲脒碘化铅(FAPbI3)具有更有利的光收集带隙和更好的热稳定性。然而,从α相到δ相的相变很容易发生,这使其在环境空气中进行加工具有挑战性。在此,我们通过两种分子(包括 1,4-双(二苯基膦)丁烷(DPPB)和[4-(3,6-二甲基-9H-咔唑-9-基)丁基]膦酸(Me-4PACz))开发了一种埋藏界面工程策略,以优化空气加工的倒置 FAPbI3 PSC。这一策略调节了空气制备的 FAPbI3 包晶薄膜的结晶过程,从而获得了更纯净的 α 相,结晶度显著提高,晶粒尺寸增大。除了改进了块状透辉石薄膜外,还钝化了 NiOx/透辉石界面上的缺陷,改进后的器件能级更加匹配,从而促进了载流子的有效萃取。因此,在露天条件下加工的目标器件的功率转换效率从 11.37% 显著提高到 18.45%,同时器件的稳定性也得到了增强。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Dual Buried Interface Engineering for Improving Air-Processed Inverted FAPbI<sub>3</sub> Perovskite Solar Cells.

Dual Buried Interface Engineering for Improving Air-Processed Inverted FAPbI3 Perovskite Solar Cells.

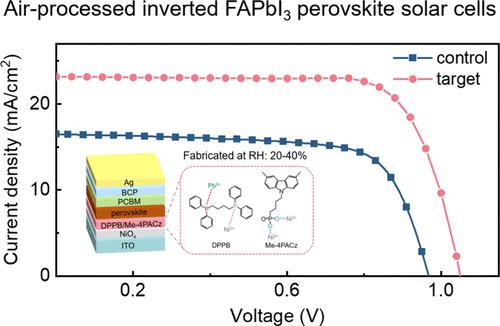

Fabricating perovskite solar cells (PSCs) in an ambient environment provides low-cost preparation routes for solar cells that are suitable for large-scale production. Compared with methylammonium (MA)- based perovskite materials, formamidinium lead iodide (FAPbI3) possesses a more favorable bandgap for light harvesting and better thermostability. However, the phase transition from the α-phase to the δ-phase easily occurs, making it challenging for ambient-air processing. Herein, we develop a buried interface engineering strategy via two molecules including 1,4-bis(diphenylphosphino)butane (DPPB) as well as [4-(3,6-dimethyl-9H-carbazol-9-yl)butyl] phosphonic acid (Me-4PACz) to optimize air-processed inverted FAPbI3 PSCs. This strategy regulates the crystallization process of the air-fabricated FAPbI3 perovskite film, leading to a purer α-phase with significantly enhanced crystallinity and enlarged grain sizes. Apart from improving the bulk perovskite film, the defects at the NiOx/perovskite interface are passivated, and the energy levels are better matched in the modified device, which facilitates efficient carrier extraction. Resultantly, the target device processed in the open air achieves a dramatically improved power conversion efficiency from 11.37% to 18.45%, in association with an enhanced device stability.
