Fluorine-Free Fabrication of MXene via Photo-Fenton Approach for Advanced Lithium–Sulfur Batteries

IF 16 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
ACS Nano Pub Date : 2022-04-25 DOI:10.1021/acsnano.2c00779
Lin Liang, Liqun Niu, Tianli Wu, Dan Zhou and Zhubing Xiao*,
{"title":"Fluorine-Free Fabrication of MXene via Photo-Fenton Approach for Advanced Lithium–Sulfur Batteries","authors":"Lin Liang,&nbsp;Liqun Niu,&nbsp;Tianli Wu,&nbsp;Dan Zhou and Zhubing Xiao*,&nbsp;","doi":"10.1021/acsnano.2c00779","DOIUrl":null,"url":null,"abstract":"<p >The mainstream synthesis method for MXene is using aqueous fluorine-containing acidic solutions to eliminate the A-element layers from their MAX phases. However, this strategy is environmentally hazardous and impairs the material performance (e.g., supercapacitor and Li–S batteries) owing to the presence of ?F terminations. Herein, we exploit a low-temperature “soft chemistry” approach based on photo-Fenton (P.F.) reaction for the fabrication of F-free Ti<sub>3</sub>C<sub>2</sub> (Ff-Ti<sub>3</sub>C<sub>2</sub>) with high purity of 95%. It is confirmed that the continuous generation of highly reactive oxygen species (HO<sup>?</sup> and O<sub>2</sub><sup>?–</sup> radicals) during the P.F. reaction weakens the metallic Ti–Al bonds in the MAX phase and promotes the formation of high concentration OH<sup>–</sup> anions, which are conducive to the sequential topochemical deintercalation of Al layers. Moreover, the strengthened charge accumulation on the Ff-Ti<sub>3</sub>C<sub>2</sub> surface creates rich electron “reservoirs” for actuating the Li–S chemistry, which not only strengthens the host–guest interactions but also propels the kinetics of the polysulfide conversion. Taking advantage of the superior mechanical robustness, better electrolyte wettability, and improved electrocatalytic activity, the resultant Ff-Ti<sub>3</sub>C<sub>2</sub> can be used as an ideal sulfur host and Li–S chemistry mediator for advanced flexible Li–S batteries.</p>","PeriodicalId":21,"journal":{"name":"ACS Nano","volume":"16 5","pages":"7971–7981"},"PeriodicalIF":16.0000,"publicationDate":"2022-04-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"37","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Nano","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsnano.2c00779","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 37

Abstract

The mainstream synthesis method for MXene is using aqueous fluorine-containing acidic solutions to eliminate the A-element layers from their MAX phases. However, this strategy is environmentally hazardous and impairs the material performance (e.g., supercapacitor and Li–S batteries) owing to the presence of ?F terminations. Herein, we exploit a low-temperature “soft chemistry” approach based on photo-Fenton (P.F.) reaction for the fabrication of F-free Ti3C2 (Ff-Ti3C2) with high purity of 95%. It is confirmed that the continuous generation of highly reactive oxygen species (HO? and O2?– radicals) during the P.F. reaction weakens the metallic Ti–Al bonds in the MAX phase and promotes the formation of high concentration OH anions, which are conducive to the sequential topochemical deintercalation of Al layers. Moreover, the strengthened charge accumulation on the Ff-Ti3C2 surface creates rich electron “reservoirs” for actuating the Li–S chemistry, which not only strengthens the host–guest interactions but also propels the kinetics of the polysulfide conversion. Taking advantage of the superior mechanical robustness, better electrolyte wettability, and improved electrocatalytic activity, the resultant Ff-Ti3C2 can be used as an ideal sulfur host and Li–S chemistry mediator for advanced flexible Li–S batteries.

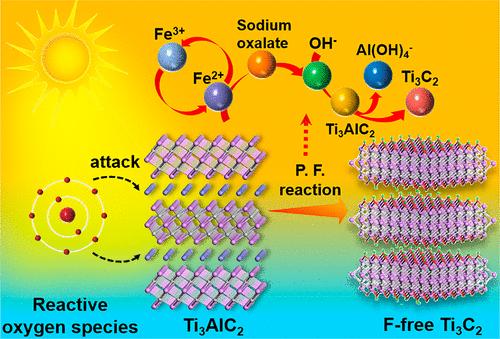

Abstract Image

先进锂硫电池用光fenton法无氟制备MXene
MXene的主流合成方法是使用含氟酸性水溶液将a元素层从MAX相中去除。然而,这种策略对环境有害,并且由于存在- F终端而损害材料性能(例如,超级电容器和Li-S电池)。在此,我们利用基于光芬顿(P.F.)反应的低温“软化学”方法制备了纯度高达95%的无f Ti3C2 (Ff-Ti3C2)。证实了连续生成高活性氧(HO?和O2 ?在P.F.反应过程中,金属Ti-Al键在MAX相中减弱,促进了高浓度OH -阴离子的形成,有利于Al层的有序拓扑化学脱嵌。此外,Ff-Ti3C2表面电荷积累的增强为驱动Li-S化学反应创造了丰富的电子“储层”,这不仅加强了主-客体相互作用,而且促进了多硫化物转化动力学。Ff-Ti3C2具有优异的机械稳健性、较好的电解质润湿性和较高的电催化活性,可作为先进柔性锂硫电池理想的硫宿主和锂硫化学介质。
