Accuracy and Perception of an Origami-Based Paper Microscope When Compared to the Conventional Light Microscope in Oral Cytology.

Q3 Medicine
Journal of Microscopy and Ultrastructure Pub Date : 2023-06-02 eCollection Date: 2025-04-01 DOI:10.4103/jmau.jmau_37_23
M E Adhi Sivasankari, Harikrishnan Prasad, Kenniyankumar Srichinthu, Perumal Prema, Muthusamy Rajmohan, Sivanandhan Shanmuganathan
{"title":"Accuracy and Perception of an Origami-Based Paper Microscope When Compared to the Conventional Light Microscope in Oral Cytology.","authors":"M E Adhi Sivasankari, Harikrishnan Prasad, Kenniyankumar Srichinthu, Perumal Prema, Muthusamy Rajmohan, Sivanandhan Shanmuganathan","doi":"10.4103/jmau.jmau_37_23","DOIUrl":null,"url":null,"abstract":"<p><strong>Introduction: </strong>Foldscope is an origami-based portable paper microscope, developed in 2014, that can provide up to 2000 times magnification. It has the potential use as a low-cost diagnostic alternative in areas with limited resources. Oral cancer screening camps rely on visual examination of the patients' oral cavity. In-field diagnosis of cytological smears can be very beneficial, although it requires more resources. Therefore, we designed a study to compare the accuracy of Foldscope in the identification of features in cytology smears, when compared with light microscope.</p><p><strong>Methodology: </strong>Two examiners with adequate experience evaluated 35 oral cytology smears. The Foldscope was used twice for evaluation by each examiner, with a gap of 15 days between the two evaluations. Both examiners also evaluated the same set of slides using a light microscope. Accuracy of identification of cells using Foldscope, when compared with the light microscope was evaluated. Interobserver agreement in the identification of various features was also determined using kappa statistics, for light microscope examination, and two Foldscope examinations.</p><p><strong>Results: </strong>We found that both examiners could identify epithelial cells accurately using the Foldscope. Mucous cells, inflammatory cells, and microorganisms could also be identified, with slightly lesser accuracy. Interobserver agreement was good in the light microscope. However, with the Foldscope, especially after the second sitting, the interobserver agreement was found to be comparably good.</p><p><strong>Conclusion: </strong>With adequate training and practice, Foldscopes could be valuable tools for rapid and immediate diagnosis of exfoliative cytology smears in mass oral cancer screening camps.</p>","PeriodicalId":16340,"journal":{"name":"Journal of Microscopy and Ultrastructure","volume":"1 1","pages":"86-90"},"PeriodicalIF":0.0000,"publicationDate":"2023-06-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12236414/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Microscopy and Ultrastructure","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.4103/jmau.jmau_37_23","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/4/1 0:00:00","PubModel":"eCollection","JCR":"Q3","JCRName":"Medicine","Score":null,"Total":0}
引用次数: 0

Abstract

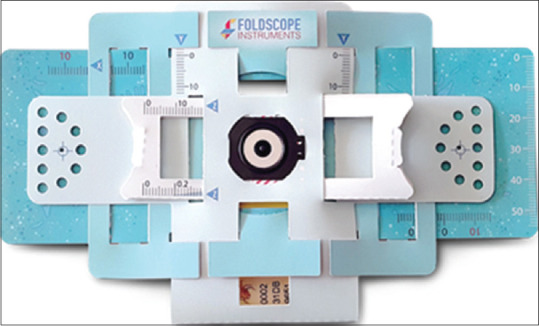

Introduction: Foldscope is an origami-based portable paper microscope, developed in 2014, that can provide up to 2000 times magnification. It has the potential use as a low-cost diagnostic alternative in areas with limited resources. Oral cancer screening camps rely on visual examination of the patients' oral cavity. In-field diagnosis of cytological smears can be very beneficial, although it requires more resources. Therefore, we designed a study to compare the accuracy of Foldscope in the identification of features in cytology smears, when compared with light microscope.

Methodology: Two examiners with adequate experience evaluated 35 oral cytology smears. The Foldscope was used twice for evaluation by each examiner, with a gap of 15 days between the two evaluations. Both examiners also evaluated the same set of slides using a light microscope. Accuracy of identification of cells using Foldscope, when compared with the light microscope was evaluated. Interobserver agreement in the identification of various features was also determined using kappa statistics, for light microscope examination, and two Foldscope examinations.

Results: We found that both examiners could identify epithelial cells accurately using the Foldscope. Mucous cells, inflammatory cells, and microorganisms could also be identified, with slightly lesser accuracy. Interobserver agreement was good in the light microscope. However, with the Foldscope, especially after the second sitting, the interobserver agreement was found to be comparably good.

Conclusion: With adequate training and practice, Foldscopes could be valuable tools for rapid and immediate diagnosis of exfoliative cytology smears in mass oral cancer screening camps.

与传统光学显微镜相比,折纸显微镜在口腔细胞学中的准确性和感知力。
Foldscope是一种基于折纸的便携式纸显微镜,于2014年开发,可提供高达2000倍的放大倍率。在资源有限的地区,它有可能作为一种低成本的诊断选择。口腔癌筛查营依靠对患者口腔的目视检查。细胞学涂片的现场诊断是非常有益的,尽管它需要更多的资源。因此,我们设计了一项研究,比较Foldscope在鉴别细胞学涂片特征方面与光学显微镜的准确性。方法:两名经验丰富的检查人员对35例口腔细胞学涂片进行了评估。每个审查员使用折叠镜进行两次评估,两次评估之间间隔15天。两位审查员还使用光学显微镜对同一组载玻片进行了评估。与光学显微镜比较,对使用Foldscope鉴定细胞的准确性进行了评估。使用kappa统计,光学显微镜检查和两次Foldscope检查,还确定了在识别各种特征方面的观察者之间的一致性。结果:我们发现两种检查者都可以使用折叠镜准确地识别上皮细胞。黏液细胞、炎症细胞和微生物也可以被识别,但准确性略低。光镜下观察者间一致性良好。然而,在Foldscope会议上,特别是在第二次会议之后,观察员间的一致意见相对较好。结论:通过适当的培训和实践,折叠镜可作为快速、即时诊断大量口腔癌筛查中剥脱性细胞学涂片的宝贵工具。
