One-Pot Green Process to Synthesize MXene with Controllable Surface Terminations using Molten Salts

IF 16.9 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Dr. Miao Shen, Weiyan Jiang, Dr. Kun Liang, Dr. Sufang Zhao, Rui Tang, Dr. Linjuan Zhang, Prof. Jian-Qiang Wang
{"title":"One-Pot Green Process to Synthesize MXene with Controllable Surface Terminations using Molten Salts","authors":"Dr. Miao Shen,&nbsp;Weiyan Jiang,&nbsp;Dr. Kun Liang,&nbsp;Dr. Sufang Zhao,&nbsp;Rui Tang,&nbsp;Dr. Linjuan Zhang,&nbsp;Prof. Jian-Qiang Wang","doi":"10.1002/anie.202110640","DOIUrl":null,"url":null,"abstract":"<p>Surface terminations of two-dimensional MXene (Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub>) considerably impact its physicochemical properties. Commonly used etching methods usually introduce -F surface terminations or metallic impurities in MXene. We present a new molten-salt-assisted electrochemical etching method to synthesize fluorine-free Ti<sub>3</sub>C<sub>2</sub>Cl<sub>2</sub>. Using electrons as reaction agents, cathode reduction and anode etching can be spatially isolated; thus, no metallics are present in the Ti<sub>3</sub>C<sub>2</sub>Cl<sub>2</sub> product. The surface terminations can be in situ modified from −Cl to −O and/or −S, which considerably shortens the modification steps and enriches the variety of surface terminations. The obtained −O-terminated Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> are excellent electrode materials for supercapacitors, exhibiting capacitances of 225 F g<sup>−1</sup> at 1.0 Ag<sup>−1</sup>, good rate performance (91.1 % at 10 Ag<sup>−1</sup>), and excellent capacitance retention (100 % after 10000 charge/discharge cycles at 10 Ag<sup>−1</sup>), which is superior to multi-layered Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> prepared by other etching methods.</p>","PeriodicalId":125,"journal":{"name":"Angewandte Chemie International Edition","volume":"60 52","pages":"27013-27018"},"PeriodicalIF":16.9000,"publicationDate":"2021-10-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"56","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Angewandte Chemie International Edition","FirstCategoryId":"92","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/anie.202110640","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 56

Abstract

Surface terminations of two-dimensional MXene (Ti3C2Tx) considerably impact its physicochemical properties. Commonly used etching methods usually introduce -F surface terminations or metallic impurities in MXene. We present a new molten-salt-assisted electrochemical etching method to synthesize fluorine-free Ti3C2Cl2. Using electrons as reaction agents, cathode reduction and anode etching can be spatially isolated; thus, no metallics are present in the Ti3C2Cl2 product. The surface terminations can be in situ modified from −Cl to −O and/or −S, which considerably shortens the modification steps and enriches the variety of surface terminations. The obtained −O-terminated Ti3C2Tx are excellent electrode materials for supercapacitors, exhibiting capacitances of 225 F g−1 at 1.0 Ag−1, good rate performance (91.1 % at 10 Ag−1), and excellent capacitance retention (100 % after 10000 charge/discharge cycles at 10 Ag−1), which is superior to multi-layered Ti3C2Tx prepared by other etching methods.

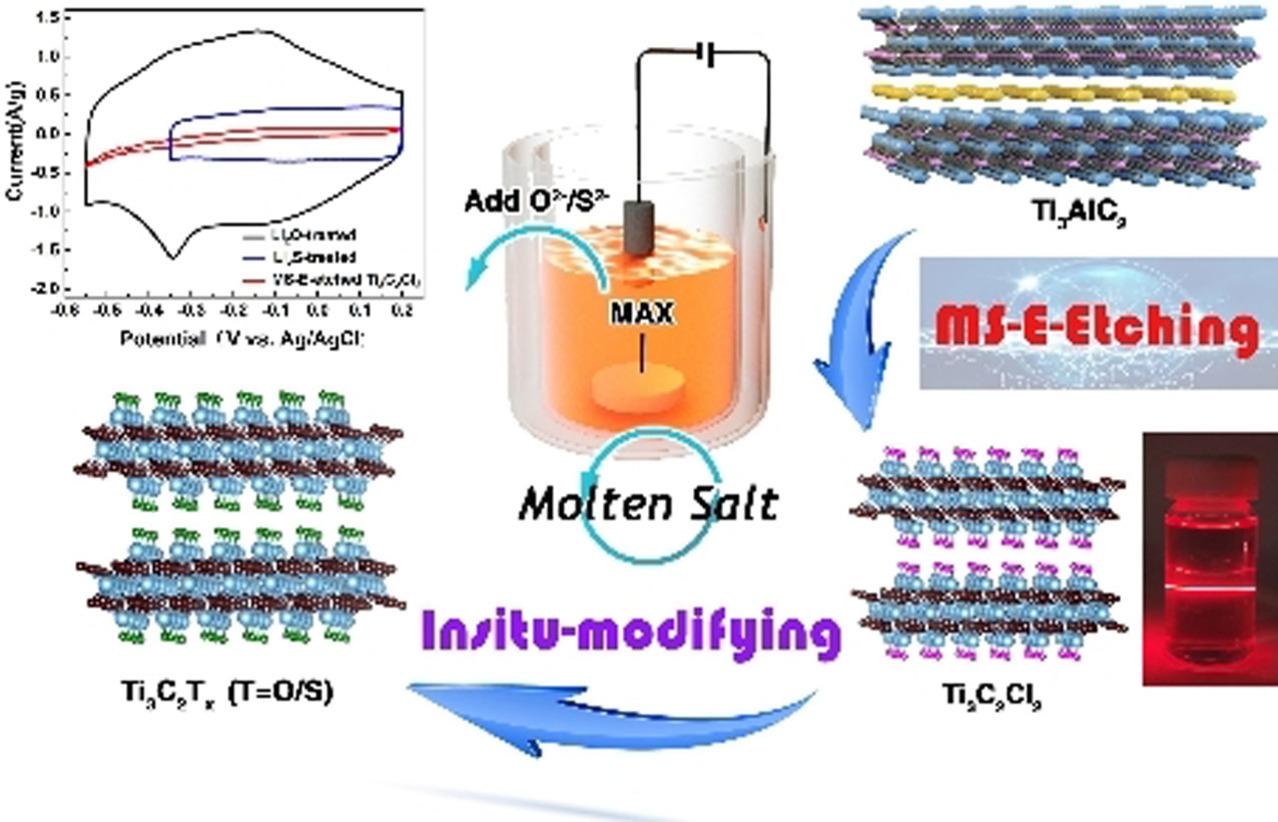

Abstract Image

熔融盐表面末端可控的一锅绿法合成MXene
二维MXene (Ti3C2Tx)的表面末端对其理化性质影响很大。常用的蚀刻方法通常会在MXene中引入-F表面末端或金属杂质。提出了一种熔盐辅助电化学刻蚀法合成无氟Ti3C2Cl2的新方法。利用电子作为反应介质,阴极还原和阳极蚀刻可以在空间上隔离;因此,Ti3C2Cl2产品中不存在金属。表面末端可以从- Cl原位修饰为- O和/或- S,这大大缩短了修饰步骤,丰富了表面末端的种类。所制得的- o端Ti3C2Tx是超级电容器的优良电极材料,在1.0 Ag−1条件下具有225 F g−1的电容,在10 Ag−1条件下具有良好的倍率性能(91.1%),在10 Ag−1条件下具有良好的电容保持率(10000次充放电循环后100%),优于其他蚀刻方法制备的多层Ti3C2Tx。
