Intermediate Phase-Assisted Sequential Deposition Toward 15.24%-Efficiency Carbon-Electrode Cspbi2br Perovskite Solar Cells

IF 6 3区 工程技术 Q2 ENERGY & FUELS
Solar RRL Pub Date : 2022-02-16 DOI:10.1002/solr.202200020
Weidong Zhu, Junxiao Ma, Wenming Chai, Tianjiao Han, Dandan Chen, Xiaoping Xie, Gang Liu, Peng Dong, He Xi, Dazheng Chen, Jincheng Zhang, Chunfu Zhang, Yue Hao
{"title":"Intermediate Phase-Assisted Sequential Deposition Toward 15.24%-Efficiency Carbon-Electrode Cspbi2br Perovskite Solar Cells","authors":"Weidong Zhu,&nbsp;Junxiao Ma,&nbsp;Wenming Chai,&nbsp;Tianjiao Han,&nbsp;Dandan Chen,&nbsp;Xiaoping Xie,&nbsp;Gang Liu,&nbsp;Peng Dong,&nbsp;He Xi,&nbsp;Dazheng Chen,&nbsp;Jincheng Zhang,&nbsp;Chunfu Zhang,&nbsp;Yue Hao","doi":"10.1002/solr.202200020","DOIUrl":null,"url":null,"abstract":"<div>\n \n <section>\n \n <p>All-inorganic perovskite CsPbI<sub>2</sub>Br is emerging as a promising absorber material for perovskite solar cells (PSCs) due to its superior photophysical properties and thermal stability. However, there are still many great challenges to obtaining high-quality, phase-stable, thick CsPbI<sub>2</sub>Br films in ambient air to promote further development of the PSCs. Herein, for the first time, an intermediate phase-assisted sequential deposition for desired CsPbI<sub>2</sub>Br films is proposed. It is carried out by sequentially spin-coating PbBr<sub>2</sub> and CsI precursors onto the substrate in ambient air, during which a Ruddlesden–Popper (R–P) perovskite intermediate phase film composed of a Cs-Pb-I-Br complex is produced. After annealing, the intermediate phase film is transformed into a CsPbI<sub>2</sub>Br film consisting of CsPbI<sub>2</sub>Br grains and CsBr species through a spinodal decomposition reaction. The as-obtained CsPbI<sub>2</sub>Br film holds full coverage, micro-sized grains, and excellent phase stability. Moreover, the CsBr species located at grain boundaries can effectively passivate the defects. Therefore, a carbon-electrode PSC with such a desired CsPbI<sub>2</sub>Br film yields the optimized efficiency of 15.24%, coupled with a remarkable photovoltage of 1.312 V and excellent stability in ambient air with relative humidity of 60–70%. The efficiency achieved herein is among the record efficiencies for carbon-electrode PSCs based on various all-inorganic perovskites reported currently.</p>\n </section>\n </div>","PeriodicalId":230,"journal":{"name":"Solar RRL","volume":"6 6","pages":""},"PeriodicalIF":6.0000,"publicationDate":"2022-02-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"8","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Solar RRL","FirstCategoryId":"5","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/solr.202200020","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENERGY & FUELS","Score":null,"Total":0}
引用次数: 8

Abstract

All-inorganic perovskite CsPbI2Br is emerging as a promising absorber material for perovskite solar cells (PSCs) due to its superior photophysical properties and thermal stability. However, there are still many great challenges to obtaining high-quality, phase-stable, thick CsPbI2Br films in ambient air to promote further development of the PSCs. Herein, for the first time, an intermediate phase-assisted sequential deposition for desired CsPbI2Br films is proposed. It is carried out by sequentially spin-coating PbBr2 and CsI precursors onto the substrate in ambient air, during which a Ruddlesden–Popper (R–P) perovskite intermediate phase film composed of a Cs-Pb-I-Br complex is produced. After annealing, the intermediate phase film is transformed into a CsPbI2Br film consisting of CsPbI2Br grains and CsBr species through a spinodal decomposition reaction. The as-obtained CsPbI2Br film holds full coverage, micro-sized grains, and excellent phase stability. Moreover, the CsBr species located at grain boundaries can effectively passivate the defects. Therefore, a carbon-electrode PSC with such a desired CsPbI2Br film yields the optimized efficiency of 15.24%, coupled with a remarkable photovoltage of 1.312 V and excellent stability in ambient air with relative humidity of 60–70%. The efficiency achieved herein is among the record efficiencies for carbon-electrode PSCs based on various all-inorganic perovskites reported currently.

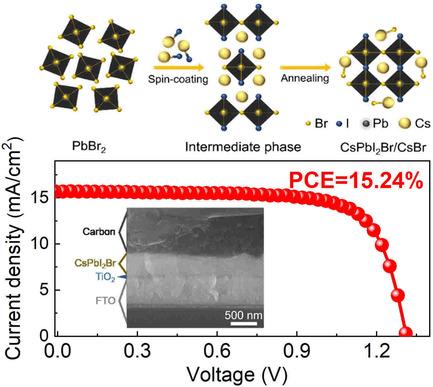

Abstract Image

15.24%效率碳电极Cspbi2br钙钛矿太阳能电池的中间相辅助序贯沉积研究
全无机钙钛矿CsPbI2Br由于其优越的光物理性能和热稳定性,成为一种很有前途的钙钛矿太阳能电池(PSCs)吸收材料。然而,在环境空气中获得高质量、相稳定、厚的CsPbI2Br薄膜,以促进PSCs的进一步发展,仍然存在许多巨大的挑战。本文首次提出了一种中间相辅助顺序沉积CsPbI2Br薄膜的方法。该方法通过在环境空气中将PbBr2和CsI前驱体依次自旋涂覆在衬底上,在此过程中产生由Cs-Pb-I-Br配合物组成的Ruddlesden-Popper (R-P)钙钛矿中间相膜。退火后,中间相膜通过独立分解反应转变为由CsPbI2Br晶粒和CsBr组分组成的CsPbI2Br膜。得到的CsPbI2Br薄膜具有全覆盖、微尺寸晶粒和优异的相稳定性。此外,位于晶界处的CsBr能有效钝化缺陷。因此,具有这种理想CsPbI2Br薄膜的碳电极PSC的优化效率为15.24%,并且具有1.312 V的显著光电压,并且在相对湿度为60-70%的环境空气中具有出色的稳定性。本文所取得的效率是目前报道的基于各种全无机钙钛矿的碳电极PSCs的记录效率之一。
