Novel Cobalt-Free Oxygen-Permeable Perovskite-Type Membrane

IF 7 2区 材料科学 Q2 CHEMISTRY, PHYSICAL
Konstantin Efimov*, Torben Halfer, Alexander Kuhn, Paul Heitjans, Jürgen Caro, Armin Feldhoff
{"title":"Novel Cobalt-Free Oxygen-Permeable Perovskite-Type Membrane","authors":"Konstantin Efimov*,&nbsp;Torben Halfer,&nbsp;Alexander Kuhn,&nbsp;Paul Heitjans,&nbsp;Jürgen Caro,&nbsp;Armin Feldhoff","doi":"10.1021/cm902882s","DOIUrl":null,"url":null,"abstract":"<p >Cobalt-free perovskite with the novel composition (Ba<sub>0.5</sub>Sr<sub>0.5</sub>)(Fe<sub>0.8</sub>Cu<sub>0.2</sub>)O<sub>3-δ</sub> (BSFCu) was synthesized via a sol?gel method and studied with respect to the crystallographic structure as well as the oxygen ionic and the electronic conductivity. In situ X-ray diffraction (XRD) was applied to investigate the thermal dilatation and the phase stability of the BSFCu at high and intermediate temperatures. Additionally, time-dependent oxygen permeation performance measurements were carried out for BSFCu and Co-based (Ba<sub>0.5</sub>Sr<sub>0.5</sub>)(Co<sub>0.8</sub>Fe<sub>0.2</sub>)O<sub>3-δ</sub> membranes at 1023 K for 200 h. The BSFCu phase was found to be a cubic perovskite by XRD and transmission electron microscopy. The BSFCu membrane exhibits a very high oxygen permeation and electrical conductivity as compared to known perovskite membranes. The oxygen permeation of the BSFCu membrane maintains its value for 200 h at 1023 K unlike (Ba<sub>0.5</sub>Sr<sub>0.5</sub>)(Co<sub>0.8</sub>Fe<sub>0.2</sub>)O<sub>3-δ</sub>, whose oxygen flux was reduced by one-half during the same interval.</p>","PeriodicalId":33,"journal":{"name":"Chemistry of Materials","volume":"22 4","pages":"1540–1544"},"PeriodicalIF":7.0000,"publicationDate":"2010-01-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://sci-hub-pdf.com/10.1021/cm902882s","citationCount":"81","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemistry of Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/cm902882s","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 81

Abstract

Cobalt-free perovskite with the novel composition (Ba0.5Sr0.5)(Fe0.8Cu0.2)O3-δ (BSFCu) was synthesized via a sol?gel method and studied with respect to the crystallographic structure as well as the oxygen ionic and the electronic conductivity. In situ X-ray diffraction (XRD) was applied to investigate the thermal dilatation and the phase stability of the BSFCu at high and intermediate temperatures. Additionally, time-dependent oxygen permeation performance measurements were carried out for BSFCu and Co-based (Ba0.5Sr0.5)(Co0.8Fe0.2)O3-δ membranes at 1023 K for 200 h. The BSFCu phase was found to be a cubic perovskite by XRD and transmission electron microscopy. The BSFCu membrane exhibits a very high oxygen permeation and electrical conductivity as compared to known perovskite membranes. The oxygen permeation of the BSFCu membrane maintains its value for 200 h at 1023 K unlike (Ba0.5Sr0.5)(Co0.8Fe0.2)O3-δ, whose oxygen flux was reduced by one-half during the same interval.

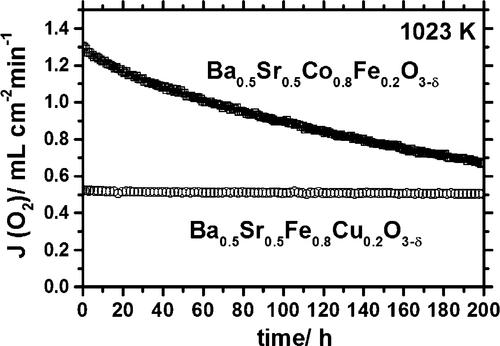

Abstract Image

新型无钴透氧钙钛矿型膜
采用溶胶法合成了具有新组分(Ba0.5Sr0.5)(Fe0.8Cu0.2)O3-δ (BSFCu)的无钴钙钛矿。并用凝胶法对其晶体结构以及氧离子和电导率进行了研究。采用原位x射线衍射(XRD)研究了BSFCu在高温和中高温下的热膨胀和相稳定性。此外,对BSFCu和co基(Ba0.5Sr0.5)(Co0.8Fe0.2)O3-δ膜在1023 K下保温200 h时的氧渗透性能进行了测试。通过XRD和透射电镜分析,BSFCu相为立方钙钛矿。与已知的钙钛矿膜相比,BSFCu膜具有非常高的透氧性和导电性。与(Ba0.5Sr0.5)(Co0.8Fe0.2)O3-δ不同,BSFCu膜在1023 K下的氧透性在200 h内保持不变,而O3-δ的氧通量在同一时间内减少了一半。
