Rapid Fabrication of Silica Microlens Arrays via Glass 3D Printing.

IF 2.3 4区工程技术 Q3 ENGINEERING, MANUFACTURING

3D Printing and Additive Manufacturing Pub Date : 2024-04-01 Epub Date: 2024-04-16 DOI:10.1089/3dp.2022.0112

Chunxin Liu, Taras Oriekhov, Cherrie Lee, Clarissa M Harvey, Michael Fokine

引用次数: 0

Abstract

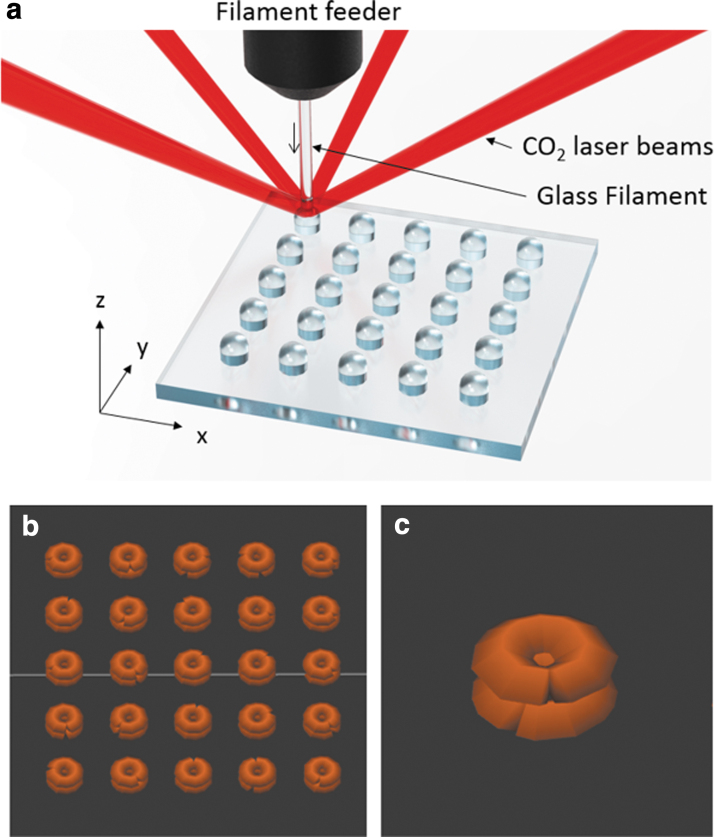

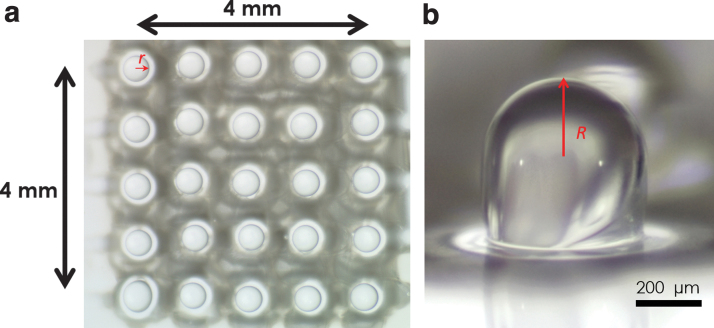

Rapid manufacturing of high purity fused silica glass micro-optics using a filament-based glass 3D printer has been demonstrated. A multilayer 5 × 5 microlens array was printed and subsequently characterized, showing fully dense lenses with uniform focal lengths and good imaging performance. A surface roughness on the order of R_a = 0.12 nm was achieved. Printing time for each lens was <10 s. Creating arrays with multifocal imaging capabilities was possible by individually varying the number of printed layers and radius for each lens, effectively changing the lens height and curvature. Glass 3D printing is shown in this study to be a versatile approach for fabricating silica micro-optics suitable for rapid prototyping or manufacturing.

查看原文本刊更多论文

通过玻璃三维打印技术快速制造二氧化硅微透镜阵列。

使用基于长丝的玻璃三维打印机快速制造高纯度熔融石英玻璃微光学器件的技术已经得到验证。打印出的多层 5 × 5 微透镜阵列随后进行了表征，显示出具有均匀焦距和良好成像性能的全致密透镜。表面粗糙度为 Ra = 0.12 nm。每个透镜的打印时间为
