Highly Stable CsPbBr3 Perovskite Nanocrystals Encapsulated in Metal–Organic Frameworks for White Light-Emitting Diodes

IF 5.5 2区 材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Zhen-Dong Lian, Bo Wang, Zhi-Sheng Wu, Hao Lin, Shan-Shan Yan, Jie-Lei Li, Kang Zhang, Qing-Guang Zeng, Jin-Cheng Xu, Shi Chen, Shuang-Peng Wang* and Kar Wei Ng*,
{"title":"Highly Stable CsPbBr3 Perovskite Nanocrystals Encapsulated in Metal–Organic Frameworks for White Light-Emitting Diodes","authors":"Zhen-Dong Lian,&nbsp;Bo Wang,&nbsp;Zhi-Sheng Wu,&nbsp;Hao Lin,&nbsp;Shan-Shan Yan,&nbsp;Jie-Lei Li,&nbsp;Kang Zhang,&nbsp;Qing-Guang Zeng,&nbsp;Jin-Cheng Xu,&nbsp;Shi Chen,&nbsp;Shuang-Peng Wang* and Kar Wei Ng*,&nbsp;","doi":"10.1021/acsanm.2c04758","DOIUrl":null,"url":null,"abstract":"<p >CsPbX<sub>3</sub> (X = Cl, Br, I) perovskite nanocrystals (NCs) have shown great potential in numerous applications including wide color gamut display and lighting. Despite the wonderful luminescence properties, the inherent instability of these NCs hinders their use in practical situations. Herein, we report a facile aqueous-based, ligand-free method to synthesize highly stable CsPbX<sub>3</sub> NCs using ZIF-62, a metal–organic framework, as an encapsulation matrix which effectively isolates CsPbX<sub>3</sub> from the surrounding. We discovered that the slightly alkaline nature of ZIF-62 facilitates the reaction between water and PbBr<sub>2</sub> to form PbBr(OH), which not only passivates the surface defects of the CsPbBr<sub>3</sub> NCs but also prevents the perovskite from decomposing or oxidizing at high temperature. Sintering of ZIF-62 can therefore be performed in air at ~300 °C to completely seal the perovskite within the insulating matrix, resulting in CsPbBr<sub>3</sub>/ZIF-62 composites exhibiting high stability against polar solvents, heat, light, and ambient humidity. Notably, the composite can maintain its bright luminescence without noticeable degradation in water for more than 2 months. The narrow-band emission and stability of these composites led to the demonstration of white light-emitting diodes with excellent color stability. Without the need for organic solvents during NC synthesis and noble gas ambient during sintering, the strategy proposed here can potentially facilitate the cost-effective, large-scale synthesis of highly stable perovskites which show great promise in commercial applications.</p>","PeriodicalId":6,"journal":{"name":"ACS Applied Nano Materials","volume":"6 3","pages":"1808–1816"},"PeriodicalIF":5.5000,"publicationDate":"2023-01-19","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"6","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Nano Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsanm.2c04758","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 6

Abstract

CsPbX3 (X = Cl, Br, I) perovskite nanocrystals (NCs) have shown great potential in numerous applications including wide color gamut display and lighting. Despite the wonderful luminescence properties, the inherent instability of these NCs hinders their use in practical situations. Herein, we report a facile aqueous-based, ligand-free method to synthesize highly stable CsPbX3 NCs using ZIF-62, a metal–organic framework, as an encapsulation matrix which effectively isolates CsPbX3 from the surrounding. We discovered that the slightly alkaline nature of ZIF-62 facilitates the reaction between water and PbBr2 to form PbBr(OH), which not only passivates the surface defects of the CsPbBr3 NCs but also prevents the perovskite from decomposing or oxidizing at high temperature. Sintering of ZIF-62 can therefore be performed in air at ~300 °C to completely seal the perovskite within the insulating matrix, resulting in CsPbBr3/ZIF-62 composites exhibiting high stability against polar solvents, heat, light, and ambient humidity. Notably, the composite can maintain its bright luminescence without noticeable degradation in water for more than 2 months. The narrow-band emission and stability of these composites led to the demonstration of white light-emitting diodes with excellent color stability. Without the need for organic solvents during NC synthesis and noble gas ambient during sintering, the strategy proposed here can potentially facilitate the cost-effective, large-scale synthesis of highly stable perovskites which show great promise in commercial applications.

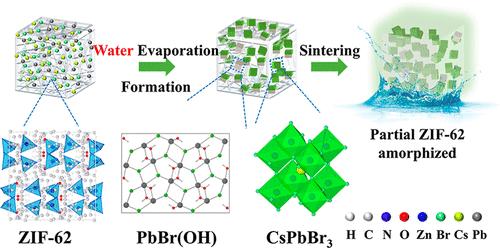

Abstract Image

白色发光二极管用金属有机骨架封装的高稳定CsPbBr3钙钛矿纳米晶体
CsPbX3 (X = Cl, Br, I)钙钛矿纳米晶体(NCs)在包括宽色域显示和照明在内的众多应用中显示出巨大的潜力。尽管具有出色的发光特性,但这些纳米材料固有的不稳定性阻碍了它们在实际应用中的应用。本文报道了一种简单的水基无配体方法,利用金属有机骨架ZIF-62作为包封基质,有效地将CsPbX3与周围环境隔离开来,合成了高稳定性的CsPbX3 NCs。我们发现,ZIF-62的微碱性有利于水与PbBr2反应生成PbBr(OH), PbBr(OH)不仅钝化了CsPbBr3 NCs的表面缺陷,而且可以防止钙钛矿在高温下分解或氧化。因此,ZIF-62的烧结可以在~300°C的空气中进行,将钙钛矿完全密封在绝缘基体中,从而使CsPbBr3/ZIF-62复合材料在极性溶剂、热、光和环境湿度方面表现出高稳定性。值得注意的是,复合材料可以保持其明亮的发光,而不会在水中明显降解超过2个月。这些复合材料的窄带发射和稳定性使其具有良好的颜色稳定性。在NC合成过程中不需要有机溶剂,在烧结过程中不需要惰性气体环境,本文提出的策略可能有助于经济有效地大规模合成高稳定性的钙钛矿,这在商业应用中具有很大的前景。
