Tunable Lithium-Ion Transport in Mixed-Halide Argyrodites Li6–xPS5–xClBrx: An Unusual Compositional Space

Abstract

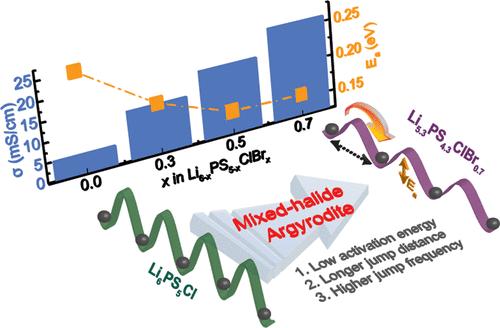

Argyrodites, with fast lithium-ion conduction, are promising for applications in rechargeable solid-state lithium-ion batteries. We report a new compositional space of argyrodite superionic conductors, Li_6–xPS_5–xClBr_x [0 ≤ x ≤ 0.8], with a remarkably high ionic conductivity of 24 mS/cm at 25 °C for Li_5.3PS_4.3ClBr_0.7. In addition, the extremely low lithium migration barrier of 0.155 eV makes Li_5.3PS_4.3ClBr_0.7 highly promising for low-temperature operation. Average and local structure analyses reveal that bromination (x > 0) leads to (i) retention of the parent Li₆PS₅Cl structure for a wide range of x in Li_6–xPS_5–xClBr_x (0 ≤ x ≤ 0.7), (ii) co-occupancy of Cl^–, Br^–, and S^2– at 4a/4d sites, and (iii) gradually increased Li⁺-ion dynamics, eventually yielding a “liquid-like” Li-sublattice with a flattened energy landscape when x approaches 0.7. In addition, the diversity of anion species and Li-deficiency in halogen-rich Li_6–xPS_5–xClBr_x induce hypercoordination and coordination entropy for the Li-sublattice, also leading to enhanced Li⁺-ion transport in Li_6–xPS_5–xClBr_x. This study demonstrates that mixed-anion framework can help stabilize highly conductive structures in a compositional space otherwise unstable with lower anion diversity.
