Light-Activated siRNA Endosomal Release (LASER) by Porphyrin Lipid Nanoparticles

IF 16 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
ACS Nano Pub Date : 2023-02-28 DOI:10.1021/acsnano.2c10936
Yulin Mo, Miffy H. Y. Cheng, Andrew D’Elia, Katie Doran, Lili Ding, Juan Chen*, Pieter R. Cullis and Gang Zheng*,
{"title":"Light-Activated siRNA Endosomal Release (LASER) by Porphyrin Lipid Nanoparticles","authors":"Yulin Mo,&nbsp;Miffy H. Y. Cheng,&nbsp;Andrew D’Elia,&nbsp;Katie Doran,&nbsp;Lili Ding,&nbsp;Juan Chen*,&nbsp;Pieter R. Cullis and Gang Zheng*,&nbsp;","doi":"10.1021/acsnano.2c10936","DOIUrl":null,"url":null,"abstract":"<p >Lipid nanoparticles (LNPs) have achieved clinical success in delivering small interfering RNAs (siRNAs) for targeted gene therapy. However, endosomal escape of siRNA into the cytosol remains a fundamental challenge for LNPs. Herein, we report a strategy termed light-activated siRNA endosomal release (LASER) to address this challenge. We established a porphyrin-LNP by incorporating porphyrin-lipids into the clinically approved Onpattro formulation. The porphyrin-LNP maintained the physical properties of an LNP and generated reactive oxygen species (ROS) when irradiated with near-infrared (NIR) light. Using confocal microscopy, we revealed that porphyrin-lipids within the LNP translocate to endosomal membranes during endocytosis. The translocated porphyrin-lipids generated ROS under light irradiation and enabled LASER through endosomal membranes disruption as observed through GAL-9 recruitment and transmission electron microscopy (TEM). By establishing a quantitative confocal imaging method, we confirmed that porphyrin-LNPs can increase siRNA endosomal escape efficiency by up to 2-fold via LASER and further enhance luciferase target knockdown by 4-fold more in luciferase-transfected prostate cancer cells. Finally, we formulated porphyrin-LNPs encapsulated with gold nanoparticles (GNP) and visualized the LASER effect within prostate tumors via TEM, confirming the light-activated endosomal membrane disruption and subsequent GNP release into cytosols <i>in vivo</i>. Overall, porphyrin-LNPs and the LASER approach enhanced siRNA endosomal escape and significantly improved knockdown efficacy. We believe the versatility of this technology could be applied to various LNP-based RNA therapeutics.</p>","PeriodicalId":21,"journal":{"name":"ACS Nano","volume":"17 5","pages":"4688–4703"},"PeriodicalIF":16.0000,"publicationDate":"2023-02-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"7","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Nano","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsnano.2c10936","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 7

Abstract

Lipid nanoparticles (LNPs) have achieved clinical success in delivering small interfering RNAs (siRNAs) for targeted gene therapy. However, endosomal escape of siRNA into the cytosol remains a fundamental challenge for LNPs. Herein, we report a strategy termed light-activated siRNA endosomal release (LASER) to address this challenge. We established a porphyrin-LNP by incorporating porphyrin-lipids into the clinically approved Onpattro formulation. The porphyrin-LNP maintained the physical properties of an LNP and generated reactive oxygen species (ROS) when irradiated with near-infrared (NIR) light. Using confocal microscopy, we revealed that porphyrin-lipids within the LNP translocate to endosomal membranes during endocytosis. The translocated porphyrin-lipids generated ROS under light irradiation and enabled LASER through endosomal membranes disruption as observed through GAL-9 recruitment and transmission electron microscopy (TEM). By establishing a quantitative confocal imaging method, we confirmed that porphyrin-LNPs can increase siRNA endosomal escape efficiency by up to 2-fold via LASER and further enhance luciferase target knockdown by 4-fold more in luciferase-transfected prostate cancer cells. Finally, we formulated porphyrin-LNPs encapsulated with gold nanoparticles (GNP) and visualized the LASER effect within prostate tumors via TEM, confirming the light-activated endosomal membrane disruption and subsequent GNP release into cytosols in vivo. Overall, porphyrin-LNPs and the LASER approach enhanced siRNA endosomal escape and significantly improved knockdown efficacy. We believe the versatility of this technology could be applied to various LNP-based RNA therapeutics.

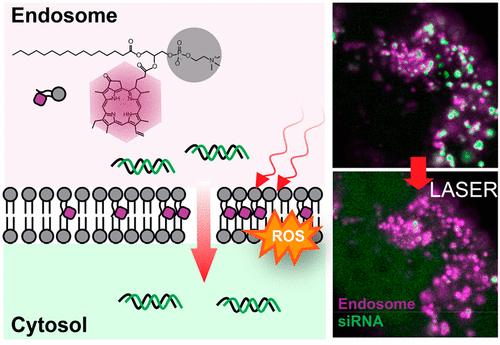

Abstract Image

光激活siRNA内体释放(激光)卟啉脂质纳米颗粒
脂质纳米颗粒(LNPs)在靶向基因治疗中递送小干扰rna (sirna)方面取得了临床成功。然而,siRNA的内体逃逸到细胞质中仍然是LNPs的一个基本挑战。在此,我们报告了一种称为光激活siRNA内体释放(LASER)的策略来解决这一挑战。我们通过将卟啉脂类加入临床批准的Onpattro制剂中,建立了卟啉- lnp。在近红外(NIR)光照射下,卟啉-LNP保持LNP的物理性质,并产生活性氧(ROS)。使用共聚焦显微镜,我们发现LNP内的卟啉脂质在内吞作用期间转运到内体膜。通过GAL-9募集和透射电子显微镜(TEM)观察到,易位的卟啉脂质在光照射下产生ROS,并通过内体膜破坏激活激光。通过建立定量共聚焦成像方法,我们证实在荧光素酶转染的前列腺癌细胞中,卟啉- lnps可以通过激光将siRNA内体逃逸效率提高2倍,并进一步将荧光素酶靶点敲低提高4倍以上。最后,我们制备了包裹有金纳米颗粒(GNP)的卟啉- lnps,并通过透射电镜观察了前列腺肿瘤内的激光效应,证实了光激活的内体膜破坏和随后的GNP释放到细胞溶胶中。总的来说,卟啉- lnps和激光方法增强了siRNA内体逃逸,显著提高了敲除效果。我们相信这项技术的多功能性可以应用于各种基于lnp的RNA疗法。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 求助全文
来源期刊
ACS Nano
ACS Nano 工程技术-材料科学:综合
CiteScore
26.00
自引率
4.10%
发文量
1627
审稿时长
1.7 months
期刊介绍: ACS Nano, published monthly, serves as an international forum for comprehensive articles on nanoscience and nanotechnology research at the intersections of chemistry, biology, materials science, physics, and engineering. The journal fosters communication among scientists in these communities, facilitating collaboration, new research opportunities, and advancements through discoveries. ACS Nano covers synthesis, assembly, characterization, theory, and simulation of nanostructures, nanobiotechnology, nanofabrication, methods and tools for nanoscience and nanotechnology, and self- and directed-assembly. Alongside original research articles, it offers thorough reviews, perspectives on cutting-edge research, and discussions envisioning the future of nanoscience and nanotechnology.
×
