Synthesis of core/shell nanocrystals with ordered intermetallic single-atom alloy layers for nitrate electroreduction to ammonia

Abstract

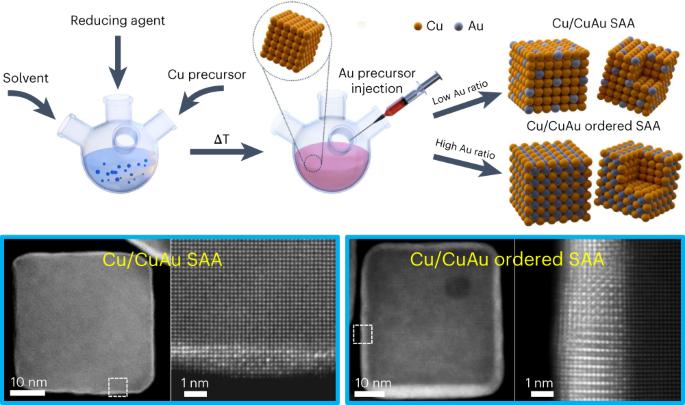

Structurally ordered intermetallic nanocrystals (NCs) and single-atom catalysts (SACs) are two emerging catalytic motifs for sustainable chemical production and energy conversion. However, both have synthetic limitations which can lead to the aggregation of NCs or metal atoms. Single-atom alloys (SAAs), which contain isolated metal atoms in a host metal, can overcome the aggregation concern because of the thermodynamic stabilization of single atoms on host metal surfaces. Here we report a direct solution-phase synthesis of Cu/CuAu core/shell NCs with tunable SAA layers. This synthesis can be extended to other Cu/CuM (M = Pt, Pd) systems, in which M atoms are isolated in the copper host. Using this method, the density of SAAs on a copper surface can be controlled, resulting in both low and high densities of single atoms. Alloying gold into the copper matrix introduced ligand effects that optimized the chemisorption of *NO3 and *N. As a result, the densely packed Cu/CuAu material demonstrated a high selectivity toward NH3 from the electrocatalytic nitrate reduction reaction with an 85.5% Faradaic efficiency while maintaining a high yield rate of 8.47 mol h−1 g−1. This work advances the design of atomically precise catalytic sites by creating core/shell NCs with SAA atomic layers, opening an avenue for broad catalytic applications. Well-defined single-atom alloy (SAA) nanocrystals possess isolated atom centres and tunable electronic properties but are challenging to synthesize. Here, a direct solution-phase synthesis of Cu/CuAu core/shell nanocubes with tunable SAA layers is reported. The Cu/CuAu nanomaterial is highly active for the electrocatalytic conversion of nitrate into ammonia.
