Strength and Permeability Properties of Pervious Concrete Containing Coal Bottom Ash Aggregates.

Abstract

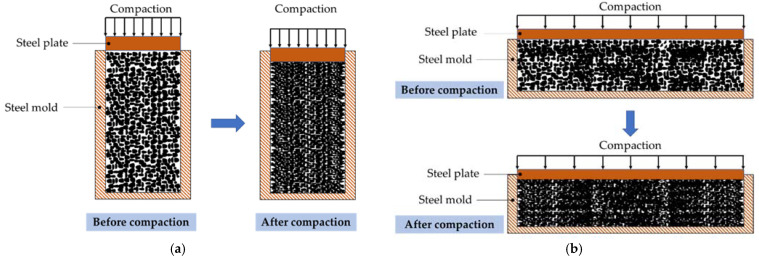

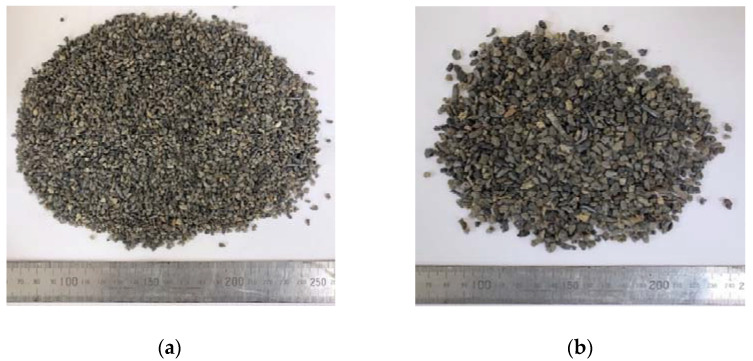

This study investigates the strength and permeability properties of pervious concrete-containing coal bottom ash (CBA) aggregates. Two pervious concrete mixtures were fabricated with different aggregate size distributions. One mixture contained CBA aggregates with a single-type distribution and the other mixture contained CBA aggregates with a hybrid-type distribution. The test parameters of the CBA pervious concrete included the water/cement (W/C) ratio and compaction level to investigate their effects on the properties. W/C ratios of 0.25, 0.30, and 0.35 were considered for the mixture, and compaction levels of 0.5, 1.5, and 3.0 MPa were applied to fabricate the pervious specimen. The increase in the W/C ratio reduced the strength by approximately 20% to 30% of the CBA pervious concrete. The increase in the compaction level reduced the permeability by approximately four to five times but significantly increased the strength of the CBA pervious concrete. The test results indicate that the use of single-type CBA or hybrid CBA aggregates with different size distributions affected the properties of the pervious concrete. The strength of specimens, including hybrid CBA aggregates, was 30% to 45% greater than that of the specimens containing single-type CBA aggregates. Meanwhile, the use of hybrid CBA aggregates reduced the permeability of the CBA pervious concrete by approximately 20% to 35%. Finally, relationships between the strength properties, permeability characteristics and total void ratios of the CBA pervious concrete specimens are suggested based on the test results.
