Co-delivery of proanthocyanidin and mitoxantrone induces synergistic immunogenic cell death to potentiate cancer immunotherapy†

Abstract

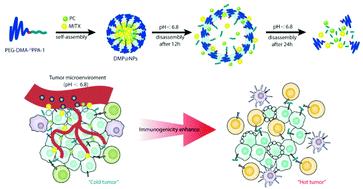

Immunological checkpoint inhibitors provide a revolutionary method for cancer treatment. However, due to low tumor mutations and insufficient infiltration of immune cells into the tumor microenvironment, 85% of colorectal cancer patients cannot respond to checkpoint blockade immunotherapy. In this study, tumor microenvironment-responsive deformable nanoparticles (DMP@NPs) were rationally designed to improve immunotherapy by synergistically modulating the immune tumor microenvironment. DMP@NPs self-assemble from a newly synthesized tumor acidity responsive polypeptide checkpoint inhibitor polymer (PEG–DMA–^DPPA-1) with immunogenic cell death (ICD) enhanced combination drugs containing a certain proportion of mitoxantrone (MITX) and proanthocyanidins (PC). Upon tumor acidity-triggered cleavage of PEG–DMA–^DPPA-1, DMP@NPs undergo special “sphere-ring deformation” dissociation, gradually releasing polypeptide checkpoint inhibitor ^DPPA-1, MITX and PC. MITX/PC in vitro synergistically triggers higher ICD with the release of the high mobility group box-1 (HMGB-1) and calreticulin (CRT). After intravenous injection of DMP@NPs, the local tumor microenvironment of CT26 tumor-bearing mice was reprogrammed, and dendritic cell activation and T cell infiltration were significantly increased. Most importantly, the synergistic immune nanodrug DMP@NPs improved the efficacy of colorectal cancer immunotherapy and reduced toxicity and side effects for the immune organs.
