Understanding the bactericidal mechanism of Cu(OH)2 nanorods in water through Mg-substitution: high production of toxic hydroxyl radicals by non-soluble particles†

IF 6.1 3区 医学 Q1 MATERIALS SCIENCE, BIOMATERIALS
Batiste Clavier, Téo Baptiste, Antonii Zhadan, Amandine Guiet, Fabien Boucher, Vlasta Brezová, Christine Roques and Gwenaël Corbel
{"title":"Understanding the bactericidal mechanism of Cu(OH)2 nanorods in water through Mg-substitution: high production of toxic hydroxyl radicals by non-soluble particles†","authors":"Batiste Clavier, Téo Baptiste, Antonii Zhadan, Amandine Guiet, Fabien Boucher, Vlasta Brezová, Christine Roques and Gwenaël Corbel","doi":"10.1039/D1TB02233D","DOIUrl":null,"url":null,"abstract":"<p >To date, there is still a lack of definite knowledge regarding the toxicity of Cu(OH)<small><sub>2</sub></small> nanoparticles towards bacteria. This study was aimed at shedding light on the role played by released cupric ions in the toxicity of nanoparticles. To address this issue, the bactericidal activity of Cu(OH)<small><sub>2</sub></small> was at first evaluated in sterile water, a medium in which particles are not soluble. In parallel, an isovalent substitution of cupric ions by Mg<small><sup>2+</sup></small> was attempted in the crystal structure of Cu(OH)<small><sub>2</sub></small> nanoparticles to increase their solubility and determine the impact on the bactericidal activity. For the first time, mixed Cu<small><sub>1?<em>x</em></sub></small>Mg<small><sub><em>x</em></sub></small>(OH)<small><sub>2</sub></small> nanorods (<em>x</em> ≤ 0.1) of about 15 nm in diameter and a few hundred nanometers in length were successfully prepared by a simple co-precipitation at room temperature in mixed alkaline (NaOH/Na<small><sub>2</sub></small>CO<small><sub>3</sub></small>) medium. For <em>E. coli</em>, 100% reduction of one million CFU per mL (6?log<small><sub>10</sub></small>) occurs after only 180 min on contact with both Cu(OH)<small><sub>2</sub></small> and Cu<small><sub>0.9</sub></small>Mg<small><sub>0.1</sub></small>(OH)<small><sub>2</sub></small> nanorods. The entire initial inoculum of <em>S. aureus</em> is also killed by Cu(OH)<small><sub>2</sub></small> after 180 min (100% or 6?log<small><sub>10</sub></small> reduction), while 0.01% of these bacteria stay alive on contact with Cu<small><sub>0.9</sub></small>Mg<small><sub>0.1</sub></small>(OH)<small><sub>2</sub></small> (99.99% or 4?log<small><sub>10</sub></small> reduction). The bactericidal performances of Cu(OH)<small><sub>2</sub></small> and the magnesium-substituted counterparts (<em>i.e.</em> Cu<small><sub>1?<em>x</em></sub></small>Mg<small><sub><em>x</em></sub></small>(OH)<small><sub>2</sub></small>) are not linked to cupric ions they release in water since their mass concentrations after 180 min are much lower than minimal concentrations inhibiting the growth of <em>E. coli</em> and <em>S. aureus</em>. Finally, an EPR spin trapping study reveals how these nanorods kill bacteria in water: only the presence of hydrogen peroxide, a by-product of the normal metabolism of oxygen in aerobic bacteria, allows the Cu(OH)<small><sub>2</sub></small> and its magnesium-substituted counterparts to produce a lethal amount of free radicals, the majority of which are the highly toxic HO˙.</p>","PeriodicalId":83,"journal":{"name":"Journal of Materials Chemistry B","volume":" 5","pages":" 779-794"},"PeriodicalIF":6.1000,"publicationDate":"2022-01-05","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"2","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry B","FirstCategoryId":"1","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2022/tb/d1tb02233d","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, BIOMATERIALS","Score":null,"Total":0}
引用次数: 2

Abstract

To date, there is still a lack of definite knowledge regarding the toxicity of Cu(OH)2 nanoparticles towards bacteria. This study was aimed at shedding light on the role played by released cupric ions in the toxicity of nanoparticles. To address this issue, the bactericidal activity of Cu(OH)2 was at first evaluated in sterile water, a medium in which particles are not soluble. In parallel, an isovalent substitution of cupric ions by Mg2+ was attempted in the crystal structure of Cu(OH)2 nanoparticles to increase their solubility and determine the impact on the bactericidal activity. For the first time, mixed Cu1?xMgx(OH)2 nanorods (x ≤ 0.1) of about 15 nm in diameter and a few hundred nanometers in length were successfully prepared by a simple co-precipitation at room temperature in mixed alkaline (NaOH/Na2CO3) medium. For E. coli, 100% reduction of one million CFU per mL (6?log10) occurs after only 180 min on contact with both Cu(OH)2 and Cu0.9Mg0.1(OH)2 nanorods. The entire initial inoculum of S. aureus is also killed by Cu(OH)2 after 180 min (100% or 6?log10 reduction), while 0.01% of these bacteria stay alive on contact with Cu0.9Mg0.1(OH)2 (99.99% or 4?log10 reduction). The bactericidal performances of Cu(OH)2 and the magnesium-substituted counterparts (i.e. Cu1?xMgx(OH)2) are not linked to cupric ions they release in water since their mass concentrations after 180 min are much lower than minimal concentrations inhibiting the growth of E. coli and S. aureus. Finally, an EPR spin trapping study reveals how these nanorods kill bacteria in water: only the presence of hydrogen peroxide, a by-product of the normal metabolism of oxygen in aerobic bacteria, allows the Cu(OH)2 and its magnesium-substituted counterparts to produce a lethal amount of free radicals, the majority of which are the highly toxic HO˙.

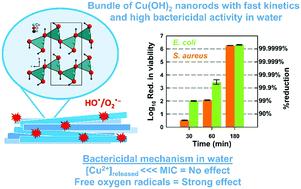

Abstract Image

通过mg取代了解Cu(OH)2纳米棒在水中的杀菌机理:不溶性粒子大量产生有毒羟基自由基
迄今为止,关于铜(OH)2纳米颗粒对细菌的毒性仍然缺乏明确的认识。本研究旨在阐明释放的铜离子在纳米颗粒毒性中所起的作用。为了解决这个问题,首先在无菌水中评估了Cu(OH)2的杀菌活性,无菌水中的颗粒是不溶的。同时,在Cu(OH)2纳米颗粒的晶体结构中,试图用Mg2+取代铜离子,以增加其溶解度,并确定其对杀菌活性的影响。本文首次在碱性(NaOH/Na2CO3)混合介质中,通过室温共沉淀法成功制备了直径约为15 nm、长度为几百纳米的混合Cu1?xMgx(OH)2纳米棒(x≤0.1)。对于大肠杆菌,在与Cu(OH)2和Cu0.9Mg0.1(OH)2纳米棒接触180分钟后,每mL (6?log10)减少100万CFU(100%)。金黄色葡萄球菌的整个初始接种物也在180分钟(100%或6?而0.01%的细菌在与Cu0.9Mg0.1(OH)2(99.99%或4?log10减少)。Cu(OH)2和镁取代物(即Cu1?xMgx(OH)2)的杀菌性能与它们在水中释放的铜离子无关,因为它们在180 min后的质量浓度远低于抑制大肠杆菌和金黄色葡萄球菌生长的最低浓度。最后,一项EPR自旋捕获研究揭示了这些纳米棒是如何杀死水中细菌的:只有过氧化氢(好氧细菌正常氧代谢的副产物)的存在,才能使Cu(OH)2和它的镁取代物产生致命数量的自由基,其中大部分是剧毒的HO˙。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
