In-situ scattering study of a liquid-liquid phase transition in Fe-B-Nb-Y supercooled liquids and its correlation with glass-forming ability

Abstract

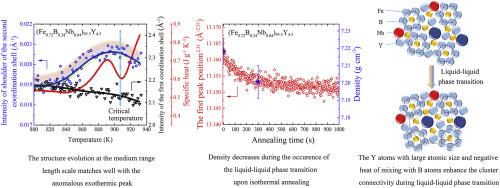

In-situ synchrotron high-energy X-ray diffraction was used to study the kinetics of structure evolution for two Fe-based bulk metallic glasses with different thermophysical behaviors upon heating and isothermal annealing in the supercooled liquid region. It is found that the structure change of (Fe_0.72B_0.24Nb_0.04)₉₇Y₃, an average glass former, follows a continuous disordering process before crystallization, while that of (Fe_0.72B_0.24Nb_0.04)_95.5Y_4.5, a better glass former with an anomalous exothermic peak below the crystallization temperature, is characterized by a reentrant supercooled liquid behavior. A hidden amorphous phase with a configurationally highly-correlated structure is found at a critical temperature of the anomalous exothermic peak for the (Fe_0.72B_0.24Nb_0.04)_95.5Y_4.5 supercooled liquid, and then it reenters the disordered phase of lower correlation length at a higher temperature. Synchrotron diffraction and the density measurements together illustrate that the liquid-liquid phase transition accompanies with an unusual density change upon isothermal annealing at the anomalous exothermic peak temperature. Our experimental results suggest that a liquid-liquid phase transition which occurred at the medium-range length scale plays an important role in stabilizing the (Fe_0.72B_0.24Nb_0.04)_95.5Y_4.5 supercooled liquid. Possible mechanisms for the observed differences and the relationship with the glass-forming ability are discussed based on the results of the pair distribution function analysis.
