Novel La3+/Sm3+ co-doped Bi5O7I with efficient visible-light photocatalytic activity for advanced treatment of wastewater: Internal mechanism, TC degradation pathway, and toxicity analysis

IF 8.1 2区 环境科学与生态学 Q1 ENVIRONMENTAL SCIENCES
Tongtong Zhang , Siyu Zhang , Chenyu Wu , Huiru Zuo , Qishe Yan
{"title":"Novel La3+/Sm3+ co-doped Bi5O7I with efficient visible-light photocatalytic activity for advanced treatment of wastewater: Internal mechanism, TC degradation pathway, and toxicity analysis","authors":"Tongtong Zhang ,&nbsp;Siyu Zhang ,&nbsp;Chenyu Wu ,&nbsp;Huiru Zuo ,&nbsp;Qishe Yan","doi":"10.1016/j.chemosphere.2022.137540","DOIUrl":null,"url":null,"abstract":"<div><p>Controlling semiconductor photocatalysts by doping rare-earth ions is an effective strategy to improve photocatalytic performance. Simple solvothermal and calcination methods were used to prepare La<sup>3+</sup> and Sm<sup>3+</sup> modified Bi<sub>5</sub>O<sub>7</sub><span><span>I nanomaterials<span>. Some characterizations such as XRD, XPS, SEM, TEM, UV–vis, etc. were carried out to explore its structural composition and photoelectrochemical properties. The photocatalytic activity was investigated by simulating the degradation of TC and </span></span>RhB under visible-light irradiation. The degradation results showed that the photocatalytic efficiency of 4S4L-Bi</span><sub>5</sub>O<sub>7</sub><span>I was the best among the samples with the 100% degradation rate of TC (Tetracycline hydrochloride) and 93% of RhB (Rhodamine B). The capture experiment and ESR test proved that the active substances that play a role in the photocatalytic degradation of pollutants were ·O</span><sub>2</sub><sup>−</sup>, <sup>1</sup>O<sub>2</sub> and h<sup>+</sup><span>, and on this basis, the possible degradation mechanism was proposed. The final results showed that La/Sm co-doping expanded the light absorption range of Bi</span><sub>5</sub>O<sub>7</sub><span>I and improved the charge separation efficiency and the specific surface area. Besides, the surface defects were formed on the surface of Bi</span><sub>5</sub>O<sub>7</sub>I due to ion-doping, which could catch e<sup>−</sup> to promote the separation and transfer of carriers and improve the photocatalytic activity. LC-MS was used to analyze the possible degradation pathways of TC. And the toxicity of TC was also analyzed via T.E.S.T and Toxtree. The results showed comprehensive toxicity of TC was decreased by 4S4L-Bi<sub>5</sub>O<sub>7</sub><span>I so that the overall water pollution was reduced. This work can provide a reference for the subsequent development of bismuth-based photocatalysts.</span></p></div>","PeriodicalId":276,"journal":{"name":"Chemosphere","volume":"313 ","pages":"Article 137540"},"PeriodicalIF":8.1000,"publicationDate":"2023-02-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"7","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemosphere","FirstCategoryId":"93","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0045653522040334","RegionNum":2,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENVIRONMENTAL SCIENCES","Score":null,"Total":0}
引用次数: 7

Abstract

Controlling semiconductor photocatalysts by doping rare-earth ions is an effective strategy to improve photocatalytic performance. Simple solvothermal and calcination methods were used to prepare La3+ and Sm3+ modified Bi5O7I nanomaterials. Some characterizations such as XRD, XPS, SEM, TEM, UV–vis, etc. were carried out to explore its structural composition and photoelectrochemical properties. The photocatalytic activity was investigated by simulating the degradation of TC and RhB under visible-light irradiation. The degradation results showed that the photocatalytic efficiency of 4S4L-Bi5O7I was the best among the samples with the 100% degradation rate of TC (Tetracycline hydrochloride) and 93% of RhB (Rhodamine B). The capture experiment and ESR test proved that the active substances that play a role in the photocatalytic degradation of pollutants were ·O2, 1O2 and h+, and on this basis, the possible degradation mechanism was proposed. The final results showed that La/Sm co-doping expanded the light absorption range of Bi5O7I and improved the charge separation efficiency and the specific surface area. Besides, the surface defects were formed on the surface of Bi5O7I due to ion-doping, which could catch e to promote the separation and transfer of carriers and improve the photocatalytic activity. LC-MS was used to analyze the possible degradation pathways of TC. And the toxicity of TC was also analyzed via T.E.S.T and Toxtree. The results showed comprehensive toxicity of TC was decreased by 4S4L-Bi5O7I so that the overall water pollution was reduced. This work can provide a reference for the subsequent development of bismuth-based photocatalysts.

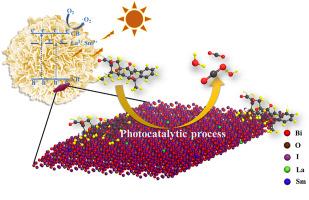

Abstract Image

新型La3+/Sm3+共掺杂Bi5O7I高效可见光催化深度处理废水:内在机理、TC降解途径及毒性分析
通过掺杂稀土离子控制半导体光催化剂是提高光催化性能的有效策略。采用简单的溶剂热法和煅烧法制备了La3+和Sm3+改性的Bi5O7I纳米材料。采用XRD、XPS、SEM、TEM、UV-vis等手段对其结构组成和光电化学性能进行了表征。通过在可见光下模拟降解TC和RhB的光催化活性来研究其光催化活性。降解结果表明,4S4L-Bi5O7I的光催化效率在样品中最好,对TC(盐酸四环素)的降解率为100%,对RhB(罗丹明B)的降解率为93%。通过捕集实验和ESR测试证明,对污染物起光催化降解作用的活性物质有·O2−、1O2和h+,并在此基础上提出了可能的降解机理。最终结果表明,La/Sm共掺杂扩大了Bi5O7I的光吸收范围,提高了电荷分离效率和比表面积。此外,离子掺杂在Bi5O7I表面形成表面缺陷,可以捕获e−,促进载流子的分离和转移,提高光催化活性。采用LC-MS分析了TC可能的降解途径。并通过T.E.S.T和Toxtree对其毒性进行了分析。结果表明,4S4L-Bi5O7I降低了TC的综合毒性,从而降低了整体水污染。该工作可为后续铋基光催化剂的开发提供参考。
