In situ synthesis of label-free electrochemical aptasensor-based sandwich-like AuNPs/PPy/Ti3C2Tx for ultrasensitive detection of lead ions as hazardous pollutants in environmental fluids

IF 8.1 2区 环境科学与生态学 Q1 ENVIRONMENTAL SCIENCES
Zhouxiang Zhang, Hassan Karimi-Maleh
{"title":"In situ synthesis of label-free electrochemical aptasensor-based sandwich-like AuNPs/PPy/Ti3C2Tx for ultrasensitive detection of lead ions as hazardous pollutants in environmental fluids","authors":"Zhouxiang Zhang,&nbsp;Hassan Karimi-Maleh","doi":"10.1016/j.chemosphere.2023.138302","DOIUrl":null,"url":null,"abstract":"<div><p><span>The monitoring of hazardous pollutants<span> in environmental fluids is one of main stretaegy in investigation of water and soil quality. Metal ions are one of main and dangerius materials in water sampels and one of the main causes of environmental problems. Therefore, many of environmental researchers focused on fabrication of highly sensitive sensor to ion hazardous pollutants environmental fluids. The encapsulation of 2D MXenes with other stable materials has proven to be an effective method for enhancing their stability and electrochemical properties. In this work, a sandwich-like nanocomposite structure, AuNPs/PPy/Ti</span></span><sub>3</sub>C<sub>2</sub>T<sub>x,</sub><span> was designed and synthesized via a facile method of one-step layer-by-layer self-assembly. The morphology and structure of the prepared nanocomposites are characterized with various methods such as scanning electron microscope (SEM), transmission electron microscope (TEM), X-ray photoelectron spectroscopy (XPS) and X-ray diffraction (XRD). Ti</span><sub>3</sub>C<sub>2</sub>T<sub>x</sub><span> as a substrate played a significant role in the synthesis and alignment of PPy and AuNPs growth. The nanocomposites have maximized the benefits of the inorganic AuNPs and organic PPy materials, enhancing their stability and electrochemical performance. Meanwhile, AuNPs have given the nanocomposite the ability to form covalent bonds with biomaterials via the Au–S bond. Thus, a novel electrochemical aptasensor was developed based on AuNPs/PPy/Ti</span><sub>3</sub>C<sub>2</sub>T<sub>x</sub> for the sensitive and selective detection of Pb<sup>2+</sup>. It demonstrated a wide linear range from 5 × 10<sup>−14</sup> to 1 × 10<sup>−8</sup> M with a low LOD of 1 × 10<sup>−14</sup><span> M (S/N = 3). Additionally, the developed aptasensor exhibited excellent selectivity and stability and successfully used to sensing of Pb</span><sup>2+</sup><span> in environmental fluids such as NongFu Spring and tap water.</span></p></div>","PeriodicalId":276,"journal":{"name":"Chemosphere","volume":"324 ","pages":"Article 138302"},"PeriodicalIF":8.1000,"publicationDate":"2023-05-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"57","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemosphere","FirstCategoryId":"93","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0045653523005696","RegionNum":2,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENVIRONMENTAL SCIENCES","Score":null,"Total":0}
引用次数: 57

Abstract

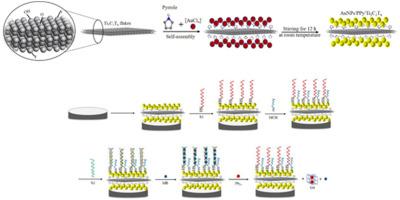

The monitoring of hazardous pollutants in environmental fluids is one of main stretaegy in investigation of water and soil quality. Metal ions are one of main and dangerius materials in water sampels and one of the main causes of environmental problems. Therefore, many of environmental researchers focused on fabrication of highly sensitive sensor to ion hazardous pollutants environmental fluids. The encapsulation of 2D MXenes with other stable materials has proven to be an effective method for enhancing their stability and electrochemical properties. In this work, a sandwich-like nanocomposite structure, AuNPs/PPy/Ti3C2Tx, was designed and synthesized via a facile method of one-step layer-by-layer self-assembly. The morphology and structure of the prepared nanocomposites are characterized with various methods such as scanning electron microscope (SEM), transmission electron microscope (TEM), X-ray photoelectron spectroscopy (XPS) and X-ray diffraction (XRD). Ti3C2Tx as a substrate played a significant role in the synthesis and alignment of PPy and AuNPs growth. The nanocomposites have maximized the benefits of the inorganic AuNPs and organic PPy materials, enhancing their stability and electrochemical performance. Meanwhile, AuNPs have given the nanocomposite the ability to form covalent bonds with biomaterials via the Au–S bond. Thus, a novel electrochemical aptasensor was developed based on AuNPs/PPy/Ti3C2Tx for the sensitive and selective detection of Pb2+. It demonstrated a wide linear range from 5 × 10−14 to 1 × 10−8 M with a low LOD of 1 × 10−14 M (S/N = 3). Additionally, the developed aptasensor exhibited excellent selectivity and stability and successfully used to sensing of Pb2+ in environmental fluids such as NongFu Spring and tap water.

Abstract Image

基于三明治状AuNPs/PPy/Ti3C2Tx的无标记电化学适体传感器原位合成用于超灵敏检测环境流体中有害污染物铅离子
环境流体中有害污染物的监测是水质和土壤质量调查的主要策略之一。金属离子是水样中主要的有害物质之一,也是造成环境问题的主要原因之一。因此,许多环境研究人员致力于制造对离子有害污染物和环境流体高灵敏度的传感器。二维MXenes与其他稳定材料的包封已被证明是提高其稳定性和电化学性能的有效方法。在这项工作中,通过一步一步逐层自组装的简单方法,设计并合成了三明治状纳米复合材料AuNPs/PPy/Ti3C2Tx。采用扫描电镜(SEM)、透射电镜(TEM)、x射线光电子能谱(XPS)和x射线衍射(XRD)等方法对制备的纳米复合材料的形貌和结构进行了表征。Ti3C2Tx作为底物在PPy和AuNPs的合成和排列中发挥了重要作用。纳米复合材料最大限度地发挥了无机AuNPs和有机PPy材料的优点,提高了它们的稳定性和电化学性能。同时,aunp使纳米复合材料能够通过Au-S键与生物材料形成共价键。为此,我们开发了一种基于AuNPs/PPy/Ti3C2Tx的电化学感应传感器,用于灵敏、选择性地检测Pb2+。该传感器线性范围为5 × 10−14 ~ 1 × 10−8 M, LOD为1 × 10−14 M (S/N = 3),具有良好的选择性和稳定性,成功应用于农夫山泉、自来水等环境流体中Pb2+的检测。
