Synergistic effect of A-site Nd deficiency and B-site Mo doping in NdBaCo2O5+δ for enhancing electrochemical performance of solid oxide electrolysis cells

IF 2.9 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY

Materialia Pub Date : 2026-05-01 Epub Date: 2026-03-29 DOI:10.1016/j.mtla.2026.102734

Xujie Liu , Changling Quan , Qiyue Wang , Yan Shao , Baocheng Shi , Ting Yan , Binxia Yuan , Zaiguo Fu

{"title":"Synergistic effect of A-site Nd deficiency and B-site Mo doping in NdBaCo2O5+δ for enhancing electrochemical performance of solid oxide electrolysis cells","authors":"Xujie Liu , Changling Quan , Qiyue Wang , Yan Shao , Baocheng Shi , Ting Yan , Binxia Yuan , Zaiguo Fu","doi":"10.1016/j.mtla.2026.102734","DOIUrl":null,"url":null,"abstract":"<div><div>The delamination caused by thermal expansion mismatch between the anode and electrolyte in solid oxide electrolysis cells (SOECs) significantly restricts overall performance. The double perovskite materials Nd0.98BaCo2-yMoyO5+δ (Nd0.98BCMoy, y = 0.03–0.07) were synthesized as oxygen electrodes of SOECs. Synergistic modification of A-site Nd deficiency and B-site Mo doping was adopted to improve the thermal expansion coefficient (TEC) and electrical conductivity of the NdBaCo2O5+δ (NBC). Specifically, Nd0.98BaCo1.93Mo0.07O5+δ exhibited a TEC of 13.94 × 10–6 K-1 and electrical conductivity of 235 S·cm-1 at 800 °C, which were markedly superior to NBC. Thermogravimetric analysis further confirmed that the modified samples exhibited excellent thermal stability. In terms of electrochemical performance, the symmetric cell with Nd0.98BCMo0.03 exhibited a polarization resistance of 0.027 Ω·cm2 at 800 °C. A single cell utilizing this material as the oxygen electrode delivered a current density of 875.48 mA·cm-2 at 800 °C under 1.5 V, corresponding to a theoretical hydrogen production rate of 365.95 ml·cm-2·h-1. These attractive properties demonstrate that the synergistic modification through A-site deficiency and B-site doping can effectively enhance NBC, offering a new strategy for developing oxygen electrode materials for solid oxide electrolysis cells.</div></div>","PeriodicalId":47623,"journal":{"name":"Materialia","volume":"46 ","pages":"Article 102734"},"PeriodicalIF":2.9000,"publicationDate":"2026-05-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materialia","FirstCategoryId":"1085","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2589152926000864","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2026/3/29 0:00:00","PubModel":"Epub","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

The delamination caused by thermal expansion mismatch between the anode and electrolyte in solid oxide electrolysis cells (SOECs) significantly restricts overall performance. The double perovskite materials Nd_0.98BaCo_2-yMo_yO_5+δ (Nd_0.98BCMo_y, y = 0.03–0.07) were synthesized as oxygen electrodes of SOECs. Synergistic modification of A-site Nd deficiency and B-site Mo doping was adopted to improve the thermal expansion coefficient (TEC) and electrical conductivity of the NdBaCo₂O_5+δ (NBC). Specifically, Nd_0.98BaCo_1.93Mo_0.07O_5+δ exhibited a TEC of 13.94 × 10^–6 K^-1 and electrical conductivity of 235 S·cm^-1 at 800 °C, which were markedly superior to NBC. Thermogravimetric analysis further confirmed that the modified samples exhibited excellent thermal stability. In terms of electrochemical performance, the symmetric cell with Nd_0.98BCMo_0.03 exhibited a polarization resistance of 0.027 Ω·cm² at 800 °C. A single cell utilizing this material as the oxygen electrode delivered a current density of 875.48 mA·cm^-2 at 800 °C under 1.5 V, corresponding to a theoretical hydrogen production rate of 365.95 ml·cm^-2·h^-1. These attractive properties demonstrate that the synergistic modification through A-site deficiency and B-site doping can effectively enhance NBC, offering a new strategy for developing oxygen electrode materials for solid oxide electrolysis cells.

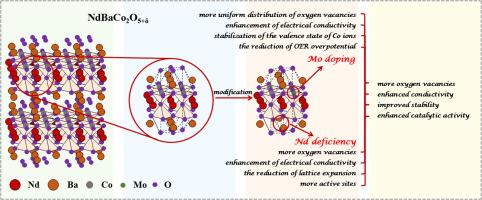

Abstract Image

查看原文本刊更多论文

NdBaCo2O5+δ中a位Nd缺乏和b位Mo掺杂对提高固体氧化物电解电池电化学性能的协同效应

在固体氧化物电解电池（soec）中，阳极和电解质之间的热膨胀不匹配导致的分层严重限制了整体性能。合成了双钙钛矿材料Nd0.98BaCo2-yMoyO5+δ (Nd0.98BCMoy, y = 0.03-0.07)作为soec的氧电极。采用a位Nd缺乏和b位Mo掺杂的协同修饰，提高了NdBaCo2O5+δ (NBC)的热膨胀系数（TEC）和电导率。其中，nd0.98 baco1.93 mo0.070 o5 +δ在800℃时的TEC为13.94 × 10-6 K-1，电导率为235 S·cm-1，明显优于NBC。热重分析进一步证实了改性后的样品具有优异的热稳定性。在电化学性能方面，含有Nd0.98BCMo0.03的对称电池在800℃时的极化电阻为0.027 Ω·cm2。使用该材料作为氧电极的单个电池在800℃、1.5 V下的电流密度为875.48 mA·cm-2，对应的理论产氢率为365.95 ml·cm-2·h-1。这些有吸引力的性质表明，通过a位缺失和b位掺杂的协同修饰可以有效地增强NBC，为固体氧化物电解电池氧电极材料的开发提供了新的策略。
