Kinetic Study and Thermal Hazard Assessment of the Clethodim Synthesis Reaction

IF 3.5 3区化学 Q2 CHEMISTRY, APPLIED

Organic Process Research & Development Pub Date : 2025-10-20 DOI:10.1021/acs.oprd.5c00196

Jianna Wang, Lin Hao, Tiantian Zeng, Mengmeng Han, Xiaohui Jin, Yanxia Ning, Hongyuan Wei

{"title":"Kinetic Study and Thermal Hazard Assessment of the Clethodim Synthesis Reaction","authors":"Jianna Wang, Lin Hao, Tiantian Zeng, Mengmeng Han, Xiaohui Jin, Yanxia Ning, Hongyuan Wei","doi":"10.1021/acs.oprd.5c00196","DOIUrl":null,"url":null,"abstract":"Thermal runaway in the final condensation step of the clethodim synthesis has caused severe industrial accidents (e.g., the 2020 Liaoning explosion, with 5 deaths). This study focused on the thermodynamics, kinetics, and thermal stability of this step to ensure process safety. Reaction calorimetry was used to determine the reaction heat, with ΔrHm,A = 45,000 J mol–1 and adiabatic temperature rise ΔTad = 35 K. The kinetic parameters were determined, revealing an activation energy Ea of 47,000 J mol–1, a pre-exponential factor k of 17,185 L mol–1 s–1, and the reaction followed second-order kinetics. Differential Scanning Calorimetry and AKTS software revealed that CPHA and clethodim have high thermal decomposition risks, with TD24 values of 65 and 75 °C, respectively, while EPCO was stable below 300 °C. Risk assessment (TP, MTSR, MTT, TD24) showed that the hazard criticality level of normal semibatch feeding was 2, and that of one-time batch feeding was 5, which was of high risk. However, with good mixing, if the time needed to reach TD24 was considered, the risk would also be under control. The 2020 accident was caused by feed errors and local overheating (no mixing/heat transfer). This work provides kinetic data and safety measures for clethodim production.","PeriodicalId":55,"journal":{"name":"Organic Process Research & Development","volume":"2 1","pages":""},"PeriodicalIF":3.5000,"publicationDate":"2025-10-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Organic Process Research & Development","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/acs.oprd.5c00196","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, APPLIED","Score":null,"Total":0}

引用次数: 0

Abstract

Thermal runaway in the final condensation step of the clethodim synthesis has caused severe industrial accidents (e.g., the 2020 Liaoning explosion, with 5 deaths). This study focused on the thermodynamics, kinetics, and thermal stability of this step to ensure process safety. Reaction calorimetry was used to determine the reaction heat, with Δ_rH_m,A = 45,000 J mol^–1 and adiabatic temperature rise ΔT_ad = 35 K. The kinetic parameters were determined, revealing an activation energy E_a of 47,000 J mol^–1, a pre-exponential factor k of 17,185 L mol^–1 s^–1, and the reaction followed second-order kinetics. Differential Scanning Calorimetry and AKTS software revealed that CPHA and clethodim have high thermal decomposition risks, with T_D24 values of 65 and 75 °C, respectively, while EPCO was stable below 300 °C. Risk assessment (T_P, MTSR, MTT, T_D24) showed that the hazard criticality level of normal semibatch feeding was 2, and that of one-time batch feeding was 5, which was of high risk. However, with good mixing, if the time needed to reach T_D24 was considered, the risk would also be under control. The 2020 accident was caused by feed errors and local overheating (no mixing/heat transfer). This work provides kinetic data and safety measures for clethodim production.

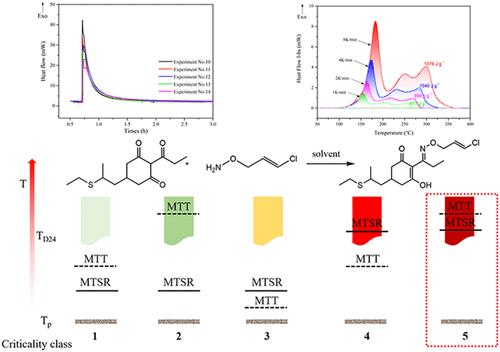

Abstract Image

查看原文本刊更多论文

Clethodim合成反应动力学研究及热危害评价

聚硫醚合成最后冷凝步骤的热失控造成了严重的工业事故（如2020年辽宁爆炸，造成5人死亡）。本研究重点研究了该步骤的热力学、动力学和热稳定性，以确保工艺安全。反应量热法测定反应热，取ΔrHm，A = 45000 J mol-1，绝热温升ΔTad = 35 K。测定了反应动力学参数，活化能Ea为47,000 J mol-1，指前因子k为17,185 L mol-1 s-1，反应符合二级动力学。差示扫描量热法和AKTS软件显示，CPHA和clethodim具有较高的热分解风险，其TD24值分别为65和75°C，而EPCO在300°C以下稳定。风险评价（TP、MTSR、MTT、TD24）结果显示，正常半批喂的危险临界水平为2，一次性批喂的危险临界水平为5，属于高风险。但是，如果混合良好，如果考虑到达到TD24所需的时间，风险也会得到控制。2020年的事故是由进料错误和局部过热（没有混合/传热）引起的。本研究为铅铅生产提供了动力学数据和安全措施。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
