Magnetic double-layer MOF nanocomposites Fe3O4@ZIF-8@ZIF-67 for efficient adsorptive removal of organic dye and antibiotic

IF 3 4区 环境科学与生态学 Q3 ENGINEERING, ENVIRONMENTAL
Jiaru Huang, Jinhuan Li, Chunmiao Lu, Xu Wang, Jingjing Xu
{"title":"Magnetic double-layer MOF nanocomposites Fe3O4@ZIF-8@ZIF-67 for efficient adsorptive removal of organic dye and antibiotic","authors":"Jiaru Huang,&nbsp;Jinhuan Li,&nbsp;Chunmiao Lu,&nbsp;Xu Wang,&nbsp;Jingjing Xu","doi":"10.1007/s40201-025-00956-y","DOIUrl":null,"url":null,"abstract":"<div><p>A magnetic double-layer metal-organic framework composite (Fe<sub>3</sub>O<sub>4</sub>@ZIF-8@ZIF-67) was successfully synthesized through a facile layer-by-layer self-assembly method at room temperature and thoroughly characterized using various techniques. The composite Fe<sub>3</sub>O<sub>4</sub>@ZIF-8@ZIF-67 was explored as an adsorbent for the removal of two harmful organic pollutants, Congo red (CR) and tetracycline hydrochloride (TC). Some essential parameters, including initial concentration, adsorbent dose, contact time, pH, and temperature, were systematically optimized. Under optimal conditions, Fe<sub>3</sub>O<sub>4</sub>@ZIF-8@ZIF-67 demonstrated the maximum adsorption capacities of 276.77 mg/g for CR and and 356.12 mg/g for TC, respectively. The double-layer structure endowed Fe<sub>3</sub>O<sub>4</sub>@ZIF-8@ZIF-67 high adsorption efficiency for CR (99.44%) than the pristine Fe<sub>3</sub>O<sub>4</sub>@ZIF-8 (73.26%). Adsorption kinetics and isotherms studies revealed that the adsorption process followed pseudo-second-order kinetics and Langmuir model, indicating a monolayer chemisorption-dominated mechanism. Furthermore, the spent Fe<sub>3</sub>O<sub>4</sub>@ZIF-8@ZIF-67 was regenerated through a Fenton-like oxidative degradation reaction, maintaining a removal efficiency above 70% after three consecutive cycles. With its facile synthesis, cost-effectiveness, mild operating conditions, and high selectivity for anionic dyes, Fe<sub>3</sub>O<sub>4</sub>@ZIF-8@ZIF-67 emerges as a highly promising material for advanced wastewater treatment applications.</p></div>","PeriodicalId":628,"journal":{"name":"Journal of Environmental Health Science and Engineering","volume":"23 2","pages":""},"PeriodicalIF":3.0000,"publicationDate":"2025-10-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Environmental Health Science and Engineering","FirstCategoryId":"93","ListUrlMain":"https://link.springer.com/article/10.1007/s40201-025-00956-y","RegionNum":4,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"ENGINEERING, ENVIRONMENTAL","Score":null,"Total":0}
引用次数: 0

Abstract

A magnetic double-layer metal-organic framework composite (Fe3O4@ZIF-8@ZIF-67) was successfully synthesized through a facile layer-by-layer self-assembly method at room temperature and thoroughly characterized using various techniques. The composite Fe3O4@ZIF-8@ZIF-67 was explored as an adsorbent for the removal of two harmful organic pollutants, Congo red (CR) and tetracycline hydrochloride (TC). Some essential parameters, including initial concentration, adsorbent dose, contact time, pH, and temperature, were systematically optimized. Under optimal conditions, Fe3O4@ZIF-8@ZIF-67 demonstrated the maximum adsorption capacities of 276.77 mg/g for CR and and 356.12 mg/g for TC, respectively. The double-layer structure endowed Fe3O4@ZIF-8@ZIF-67 high adsorption efficiency for CR (99.44%) than the pristine Fe3O4@ZIF-8 (73.26%). Adsorption kinetics and isotherms studies revealed that the adsorption process followed pseudo-second-order kinetics and Langmuir model, indicating a monolayer chemisorption-dominated mechanism. Furthermore, the spent Fe3O4@ZIF-8@ZIF-67 was regenerated through a Fenton-like oxidative degradation reaction, maintaining a removal efficiency above 70% after three consecutive cycles. With its facile synthesis, cost-effectiveness, mild operating conditions, and high selectivity for anionic dyes, Fe3O4@ZIF-8@ZIF-67 emerges as a highly promising material for advanced wastewater treatment applications.

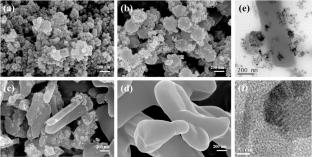

Abstract Image

磁性双层MOF纳米复合材料Fe3O4@ZIF-8@ZIF-67高效吸附去除有机染料和抗生素。
在室温下,通过简单的层层自组装方法成功合成了磁性双层金属-有机框架复合材料(Fe3O4@ZIF-8@ZIF-67),并利用各种技术对其进行了全面表征。研究了复合材料Fe3O4@ZIF-8@ZIF-67对两种有害有机污染物刚果红(CR)和盐酸四环素(TC)的吸附性能。对初始浓度、吸附剂剂量、接触时间、pH、温度等关键参数进行了系统优化。在最佳条件下,Fe3O4@ZIF-8@ZIF-67对CR和TC的最大吸附量分别为276.77 mg/g和356.12 mg/g。双层结构赋予Fe3O4@ZIF-8@ZIF-67对CR的吸附效率(99.44%)高于原始的Fe3O4@ZIF-8(73.26%)。吸附动力学和等温线研究表明,吸附过程符合拟二级动力学和Langmuir模型,表明吸附机理以单层化学吸附为主。此外,用过的Fe3O4@ZIF-8@ZIF-67通过类芬顿氧化降解反应再生,在连续三个循环后,去除率保持在70%以上。凭借其简单的合成,成本效益,温和的操作条件和对阴离子染料的高选择性,Fe3O4@ZIF-8@ZIF-67成为一种非常有前途的高级废水处理材料。补充信息:在线版本包含补充资料,提供地址为10.1007/s40201-025-00956-y。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 求助全文
来源期刊
Journal of Environmental Health Science and Engineering
Journal of Environmental Health Science and Engineering ENGINEERING, ENVIRONMENTAL-ENVIRONMENTAL SCIENCES
CiteScore
7.50
自引率
2.90%
发文量
81
期刊介绍: Journal of Environmental Health Science & Engineering is a peer-reviewed journal presenting timely research on all aspects of environmental health science, engineering and management. A broad outline of the journal''s scope includes: -Water pollution and treatment -Wastewater treatment and reuse -Air control -Soil remediation -Noise and radiation control -Environmental biotechnology and nanotechnology -Food safety and hygiene
×
