Analytical solution for gravity-induced deflection of open cylindrical thin-shell under three-point support

IF 6.6 1区工程技术 Q1 ENGINEERING, CIVIL

Thin-Walled Structures Pub Date : 2025-09-28 DOI:10.1016/j.tws.2025.114035

Honggang Li , Tiancai Tan , Xiaoguang Guo , Renke Kang , Dongqi An , Shang Gao

{"title":"Analytical solution for gravity-induced deflection of open cylindrical thin-shell under three-point support","authors":"Honggang Li , Tiancai Tan , Xiaoguang Guo , Renke Kang , Dongqi An , Shang Gao","doi":"10.1016/j.tws.2025.114035","DOIUrl":null,"url":null,"abstract":"<div><div>Thin-shell mirrors are essential elements in nested X-ray focusing optics. Due to their thin-walled structure, these mirrors are sensitive to gravity-induced deflection during surface shape metrology. This inevitable deflection resulted in optical surface evaluation deviation, leading to significant measurement inaccuracies. To address this issue, this study innovatively proposes a three-point support strategy combined with computational compensation to mitigate the gravity effects. An analytical mechanical model was developed to predict gravity-induced deflection in open cylindrical thin-shells under three-point support. Using the double finite Fourier integral transform method, the exact closed-form solutions for the governing deflection functions were derived, providing a model applicable to random shell geometries, material properties, and support parameters. The analytical model was validated through finite element simulations and analytical calculations comparisons, showing excellent agreement with errors below 3%. Experimental measurements on the polished thin-shell mirrors confirmed the effectiveness of model in recovering the surface true shape profile by subtracting predicted deflections from measured profiles. It was also found that symmetrical support locations promote favorable load distribution and reduce thin-shell deformation. The proposed analytical model provides an efficient and general computational method for gravity compensation under three-point support, enabling high-accuracy surface shape metrology of open cylindrical thin-shell structures.</div></div>","PeriodicalId":49435,"journal":{"name":"Thin-Walled Structures","volume":"218 ","pages":"Article 114035"},"PeriodicalIF":6.6000,"publicationDate":"2025-09-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Thin-Walled Structures","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0263823125011243","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CIVIL","Score":null,"Total":0}

引用次数: 0

Abstract

Thin-shell mirrors are essential elements in nested X-ray focusing optics. Due to their thin-walled structure, these mirrors are sensitive to gravity-induced deflection during surface shape metrology. This inevitable deflection resulted in optical surface evaluation deviation, leading to significant measurement inaccuracies. To address this issue, this study innovatively proposes a three-point support strategy combined with computational compensation to mitigate the gravity effects. An analytical mechanical model was developed to predict gravity-induced deflection in open cylindrical thin-shells under three-point support. Using the double finite Fourier integral transform method, the exact closed-form solutions for the governing deflection functions were derived, providing a model applicable to random shell geometries, material properties, and support parameters. The analytical model was validated through finite element simulations and analytical calculations comparisons, showing excellent agreement with errors below 3%. Experimental measurements on the polished thin-shell mirrors confirmed the effectiveness of model in recovering the surface true shape profile by subtracting predicted deflections from measured profiles. It was also found that symmetrical support locations promote favorable load distribution and reduce thin-shell deformation. The proposed analytical model provides an efficient and general computational method for gravity compensation under three-point support, enabling high-accuracy surface shape metrology of open cylindrical thin-shell structures.

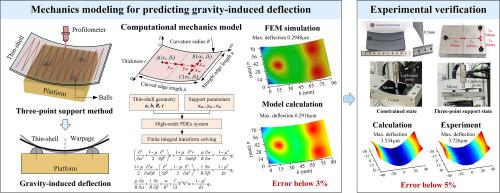

Abstract Image

查看原文本刊更多论文

三点支承下开口圆柱薄壳重力诱导挠度的解析解

薄壳反射镜是嵌套式x射线聚焦光学系统的基本元件。由于其薄壁结构，这些反射镜在表面形状测量中对重力引起的偏转很敏感。这种不可避免的偏转导致光学表面评估偏差，导致显著的测量不准确性。为了解决这一问题，本研究创新性地提出了一种结合计算补偿的三点支撑策略来减轻重力效应。建立了三点支承下开孔圆柱薄壳重力诱导挠度的解析力学模型。利用二重有限傅里叶积分变换方法，导出了控制挠度函数的精确闭型解，提供了一个适用于随机壳体几何形状、材料特性和支承参数的模型。通过有限元仿真和分析计算对比验证了分析模型的正确性，误差在3%以内。在抛光薄壳反射镜上的实验测量证实了该模型通过从测量轮廓中减去预测挠度来恢复表面真实形状轮廓的有效性。对称支承位置有利于荷载分布，减小薄壳变形。该解析模型为三点支撑下的重力补偿提供了一种高效、通用的计算方法，实现了开式圆柱薄壳结构的高精度曲面形状测量。
