Mobility data for reduced uncertainties in model-based WWTP design

Abstract

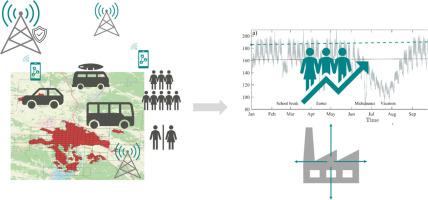

Model-based design is an emerging tool for dealing with the uncertain dynamic loads entering wastewater treatment plants (WWTPs). But our understanding about the load-driving population-dynamics is limited. Therefore, we studied if mobility data (mobile telecommunications data) could be used to reduce uncertainties during design. Mobility data from Uppsala, Sweden between 2019–2022 clearly quantified population movement patterns that were useful for simulating load scenarios such as seasonal load-shifts, without data gaps from irregular influent sampling. Further, they showed fair correlations with the daily influent nitrogen load (R² = 0.49), which resulted in a more precise person load estimate than assuming a static population (23 % reduced variance). Unfortunately, BOD load variations showed little correlation with the population variations (R² = 0.21). Nevertheless, model-based reactor sizing based on mobility data successfully reduced the de-/nitrification volume safety factor with 5 percentage points, which demonstrates their practical usefulness for WWTP design.
