Effect of cadmium doping on gas sensitivity for CdxNi1−xFe2O4 thin films prepared via pulsed laser deposition on silicon substrate

IF 4 3区 工程技术 Q2 ENGINEERING, ELECTRICAL & ELECTRONIC
Farah T. M. Noori, Mohammed W. Muayad, Uday M. Nayef, Kareem H. Jawad, Muayed Y. Kdhair, A. Kadhim, Ayat A. Salman, Abbas M. Ali, Abrar Z. AbdulKadhim
{"title":"Effect of cadmium doping on gas sensitivity for CdxNi1−xFe2O4 thin films prepared via pulsed laser deposition on silicon substrate","authors":"Farah T. M. Noori,&nbsp;Mohammed W. Muayad,&nbsp;Uday M. Nayef,&nbsp;Kareem H. Jawad,&nbsp;Muayed Y. Kdhair,&nbsp;A. Kadhim,&nbsp;Ayat A. Salman,&nbsp;Abbas M. Ali,&nbsp;Abrar Z. AbdulKadhim","doi":"10.1007/s11082-025-08484-7","DOIUrl":null,"url":null,"abstract":"<div><p>In this study, nanostructured Cd<sub>x</sub>Ni<sub>1−x</sub>Fe<sub>2</sub>O<sub>4</sub>(0 ≤ x ≤ 0.9) thin films were deposited on silicon substrates using pulsed laser deposition (PLD), and their structural, optical, and gas-sensing properties were thoroughly examined. X-ray diffraction analysis indicated that the samples possess a single-phase inverse spinel structure, with the average crystallite size decreasing from 13 nm (x = 0) to 8 nm (x = 0.9). The average grain size of Cd increased from 62.95 to 98.74 nm, as shown by atomic force microscopy, and the maximum surface roughness was 6.1 nm at x = 0.7. Optical measurements, which are associated with enhanced electronic polarizability, demonstrated improved UV photon absorption. Gas-sensing tests for 70 ppm NO<sub>2</sub> revealed a substantial increase in sensitivity, reaching a maximum of 145% at an optimal operating temperature of 200 °C, with the fastest response time of 4.7 s at x = 0.9 and a recovery time of approximately 21 s. These findings unequivocally demonstrate that well-controlled Cd doping significantly enhances the surface reactivity and electronic transport of Cdxni1-xfe2o4 thin films, making PLD-grown compositions highly competitive and effectively adjustable candidates for NO2 detection.</p></div>","PeriodicalId":720,"journal":{"name":"Optical and Quantum Electronics","volume":"57 10","pages":""},"PeriodicalIF":4.0000,"publicationDate":"2025-10-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Optical and Quantum Electronics","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.1007/s11082-025-08484-7","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}
引用次数: 0

Abstract

In this study, nanostructured CdxNi1−xFe2O4(0 ≤ x ≤ 0.9) thin films were deposited on silicon substrates using pulsed laser deposition (PLD), and their structural, optical, and gas-sensing properties were thoroughly examined. X-ray diffraction analysis indicated that the samples possess a single-phase inverse spinel structure, with the average crystallite size decreasing from 13 nm (x = 0) to 8 nm (x = 0.9). The average grain size of Cd increased from 62.95 to 98.74 nm, as shown by atomic force microscopy, and the maximum surface roughness was 6.1 nm at x = 0.7. Optical measurements, which are associated with enhanced electronic polarizability, demonstrated improved UV photon absorption. Gas-sensing tests for 70 ppm NO2 revealed a substantial increase in sensitivity, reaching a maximum of 145% at an optimal operating temperature of 200 °C, with the fastest response time of 4.7 s at x = 0.9 and a recovery time of approximately 21 s. These findings unequivocally demonstrate that well-controlled Cd doping significantly enhances the surface reactivity and electronic transport of Cdxni1-xfe2o4 thin films, making PLD-grown compositions highly competitive and effectively adjustable candidates for NO2 detection.

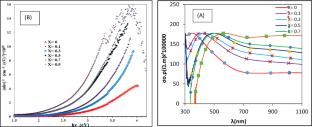

Abstract Image

镉掺杂对脉冲激光沉积CdxNi1−xFe2O4薄膜气敏性的影响
在本研究中,利用脉冲激光沉积技术(PLD)在硅衬底上沉积了纳米结构的CdxNi1−xFe2O4(0≤x≤0.9)薄膜,并对其结构、光学和气敏性能进行了全面的测试。x射线衍射分析表明,样品具有单相反尖晶石结构,平均晶粒尺寸从13 nm (x = 0)减小到8 nm (x = 0.9)。原子力显微镜显示Cd的平均晶粒尺寸从62.95 nm增加到98.74 nm,在x = 0.7时表面粗糙度最大为6.1 nm。与增强的电子极化率相关的光学测量表明,紫外光子吸收得到了改善。在70 ppm NO2条件下的气敏测试结果显示,灵敏度大幅提高,在200°C的最佳工作温度下,灵敏度最高可达145%,在x = 0.9时的最快响应时间为4.7 s,恢复时间约为21 s。这些发现明确地表明,控制良好的Cd掺杂显著提高了Cdxni1-xfe2o4薄膜的表面反应性和电子输运,使pld生长的组合物具有很强的竞争力和有效的NO2检测候选物。
