Hierarchical solar interface evaporator derived from natural multilevel plant leaves for high-efficiency desalination

IF 13.2 1区 工程技术 Q1 ENGINEERING, CHEMICAL
Jiujiu Tian, Xiaojiang Mu, Yitong Wang, Hailan Zhao, Lu Yin, Fan Zhang, Xiaoyang Wang, Lei Miao
{"title":"Hierarchical solar interface evaporator derived from natural multilevel plant leaves for high-efficiency desalination","authors":"Jiujiu Tian, Xiaojiang Mu, Yitong Wang, Hailan Zhao, Lu Yin, Fan Zhang, Xiaoyang Wang, Lei Miao","doi":"10.1016/j.cej.2025.169468","DOIUrl":null,"url":null,"abstract":"Solar-driven interfacial evaporation has emerged as a sustainable strategy for seawater desalination. However, achieving both high energy utilization and ultrafast evaporation under standard solar illumination remains challenging. In this work, we present a hierarchical solar interface evaporator derived from carbonized natural plant leaves, which retain intrinsic multilevel architectures including vascular channels, surface micro-textures, and interlayer porosity. These structures facilitate efficient water transport, broad-spectrum light absorption, and rapid vapor escape. More importantly, the hierarchical system enables multistage energy utilization by coupling direct solar absorption with passive environmental energy harvesting and latent heat recycling from upper to lower evaporation stages. As a result, the 9-stage evaporator attains an exceptionally high evaporation rate of 6.12 kg m<sup>−2</sup> h<sup>−1</sup> for 1 h under 1-sun (1 kW m<sup>−2</sup>) without external energy input, significantly surpassing the thermodynamic limit of conventional single-stage systems. The system also exhibits excellent long-term stability and salt rejection in continuous desalination tests. This study demonstrates the feasibility of using carbonized natural materials to construct low-cost, high-efficiency evaporators and offers new insights into multistage energy utilization strategies for practical water purification applications.","PeriodicalId":270,"journal":{"name":"Chemical Engineering Journal","volume":"89 1","pages":""},"PeriodicalIF":13.2000,"publicationDate":"2025-10-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Engineering Journal","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1016/j.cej.2025.169468","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}
引用次数: 0

Abstract

Solar-driven interfacial evaporation has emerged as a sustainable strategy for seawater desalination. However, achieving both high energy utilization and ultrafast evaporation under standard solar illumination remains challenging. In this work, we present a hierarchical solar interface evaporator derived from carbonized natural plant leaves, which retain intrinsic multilevel architectures including vascular channels, surface micro-textures, and interlayer porosity. These structures facilitate efficient water transport, broad-spectrum light absorption, and rapid vapor escape. More importantly, the hierarchical system enables multistage energy utilization by coupling direct solar absorption with passive environmental energy harvesting and latent heat recycling from upper to lower evaporation stages. As a result, the 9-stage evaporator attains an exceptionally high evaporation rate of 6.12 kg m−2 h−1 for 1 h under 1-sun (1 kW m−2) without external energy input, significantly surpassing the thermodynamic limit of conventional single-stage systems. The system also exhibits excellent long-term stability and salt rejection in continuous desalination tests. This study demonstrates the feasibility of using carbonized natural materials to construct low-cost, high-efficiency evaporators and offers new insights into multistage energy utilization strategies for practical water purification applications.

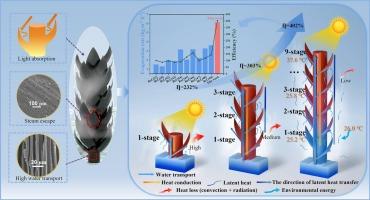

Abstract Image

层次化太阳能界面蒸发器源自天然多层植物叶片,用于高效海水淡化
太阳能驱动的界面蒸发已经成为一种可持续的海水淡化策略。然而,在标准太阳能照明下实现高能量利用率和超快蒸发仍然是一个挑战。在这项工作中,我们提出了一种分层太阳能界面蒸发器,该蒸发器来源于碳化的天然植物叶片,它保留了固有的多层结构,包括维管通道、表面微纹理和层间孔隙度。这些结构有助于有效的水输送,广谱光吸收和快速蒸汽逸出。更重要的是,分层系统通过将太阳能直接吸收与被动式环境能源收集和潜热回收从上到下蒸发阶段相结合,实现了多级能源利用。因此,在没有外部能量输入的情况下,9级蒸发器在1个太阳(1 kW m−2)下实现了1 小时的6.12 kg m−2 h−1的异常高的蒸发速率,大大超过了传统单级系统的热力学极限。该系统在连续脱盐试验中也表现出优异的长期稳定性和排盐性能。本研究证明了利用炭化天然材料构建低成本、高效蒸发器的可行性,并为实际水净化应用中的多级能源利用策略提供了新的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
