D. I. Kotov, A. A. Bataev, I. A. Bataev, K. M. Zubashevskij, K. I. Emurlaev, V. S. Shikalov
{"title":"Wear Resistance of Tool Steels during Dry Sliding Friction","authors":"D. I. Kotov, A. A. Bataev, I. A. Bataev, K. M. Zubashevskij, K. I. Emurlaev, V. S. Shikalov","doi":"10.3103/S1068366625700369","DOIUrl":null,"url":null,"abstract":"<p>Tribological studies of 5KhNM, 11Kh4V2MF3S2, and 95Kh6M3F3ST steels have been performed under dry sliding friction conditions in pairs of a steel disk–TT10K8B hard alloy pin at a pressure of 40 MPa. The test scheme has been based on the reciprocating movement of a steel sample relative to a carbide counterbody at a speed of 0.1 m/s. The test time for each sample was 10 h. The value of linear wear of friction pair elements has been used as a resistance criterion in the process of sliding friction. Minimal wear under dry sliding friction conditions in a pair with a TT10K8B hard alloy indenter has been recorded when testing samples of 11Kh4V2MF3S2 high-carbon tool steel after hardening from 1060°C and three-fold tempering at 525°C. The value of the total linear wear in the friction pair 11Kh4V2MF3S2 steel–TT10K8B hard alloy is four times less compared to that of the pair 5KhNM steel–TT10K8B hard alloy.</p>","PeriodicalId":633,"journal":{"name":"Journal of Friction and Wear","volume":"46 2","pages":"92 - 100"},"PeriodicalIF":0.5000,"publicationDate":"2025-10-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Friction and Wear","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.3103/S1068366625700369","RegionNum":4,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"ENGINEERING, MECHANICAL","Score":null,"Total":0}
引用次数: 0
Abstract

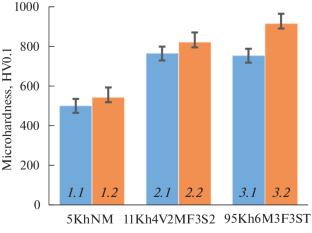

Tribological studies of 5KhNM, 11Kh4V2MF3S2, and 95Kh6M3F3ST steels have been performed under dry sliding friction conditions in pairs of a steel disk–TT10K8B hard alloy pin at a pressure of 40 MPa. The test scheme has been based on the reciprocating movement of a steel sample relative to a carbide counterbody at a speed of 0.1 m/s. The test time for each sample was 10 h. The value of linear wear of friction pair elements has been used as a resistance criterion in the process of sliding friction. Minimal wear under dry sliding friction conditions in a pair with a TT10K8B hard alloy indenter has been recorded when testing samples of 11Kh4V2MF3S2 high-carbon tool steel after hardening from 1060°C and three-fold tempering at 525°C. The value of the total linear wear in the friction pair 11Kh4V2MF3S2 steel–TT10K8B hard alloy is four times less compared to that of the pair 5KhNM steel–TT10K8B hard alloy.
期刊介绍：
Journal of Friction and Wear is intended to bring together researchers and practitioners working in tribology. It provides novel information on science, practice, and technology of lubrication, wear prevention, and friction control. Papers cover tribological problems of physics, chemistry, materials science, and mechanical engineering, discussing issues from a fundamental or technological point of view.
求助内容：
应助结果提醒方式：
京公网安备 11010802042870号
