Analysis of long-term Stability and Microwave Electromagnetic Interference Shielding Effectiveness of Epoxy MWCNT/Cu@C Nanocomposites after Hydrothermal Ageing in Saline Water

IF 2.9 4区材料科学 Q3 MATERIALS SCIENCE, COMPOSITES

Applied Composite Materials Pub Date : 2025-08-30 DOI:10.1007/s10443-025-10371-z

Dzmitry Tsyhanok, Jan Macutkevic, Darya Meisak, Juras Banys, Algirdas Selskis, Alisa Sabalina, Miks Bleija, Oskars Platnieks, Sergejs Gaidukovs

{"title":"Analysis of long-term Stability and Microwave Electromagnetic Interference Shielding Effectiveness of Epoxy MWCNT/Cu@C Nanocomposites after Hydrothermal Ageing in Saline Water","authors":"Dzmitry Tsyhanok, Jan Macutkevic, Darya Meisak, Juras Banys, Algirdas Selskis, Alisa Sabalina, Miks Bleija, Oskars Platnieks, Sergejs Gaidukovs","doi":"10.1007/s10443-025-10371-z","DOIUrl":null,"url":null,"abstract":"<div><p>The long-term electromagnetic interference shielding performance of hybrid epoxy nanocomposites was investigated after sustained hydrothermal ageing. Epoxy matrices were co-filled with multi-walled carbon nanotubes (MWCNTs, 0.05–1 vol%) and carbon-coated copper nanoparticles (Cu@C, 5 vol%) and then immersed in a 0.1 wt% NaCl solution at 80 °C for 1000 h. Gravimetric analysis revealed a maximum mass uptake of about 1 wt%, followed by partial leaching of low-molar-mass species. Ageing induced a one-order-of-magnitude rise in room-temperature conductivity (up to 0.21 S m⁻¹) and a sixfold increase in effective permittivity (ε′ ≈ 1100 at 0.573 kHz). During a single heating–cooling cycle to 500 K, the electrical conductivity showed almost the exact same behaviour as seen in non-aged composites, indicating low to no effect of hydrothermal ageing on structural relaxation or thermally activated epoxy-filler interactions. Across the 26–37 GHz Ka-band, total shielding effectiveness (SE<sub>T</sub>) remained 4–9 dB with absorption (up to 0.67) dominating over reflection. A slight (< 2 dB) enhancement in the low-frequency range of Ka-band was recorded. The combination of a resilient microstructure and stable EMI performance shows that MWCNT/Cu@C/Epoxy hybrids offer durable, hydrothermally stable shielding, which is ideal for humid or saline conditions in marine or aircraft settings, especially for radar-related systems.</p></div>","PeriodicalId":468,"journal":{"name":"Applied Composite Materials","volume":"32 5","pages":"2051 - 2065"},"PeriodicalIF":2.9000,"publicationDate":"2025-08-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Applied Composite Materials","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1007/s10443-025-10371-z","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"MATERIALS SCIENCE, COMPOSITES","Score":null,"Total":0}

引用次数: 0

Abstract

The long-term electromagnetic interference shielding performance of hybrid epoxy nanocomposites was investigated after sustained hydrothermal ageing. Epoxy matrices were co-filled with multi-walled carbon nanotubes (MWCNTs, 0.05–1 vol%) and carbon-coated copper nanoparticles (Cu@C, 5 vol%) and then immersed in a 0.1 wt% NaCl solution at 80 °C for 1000 h. Gravimetric analysis revealed a maximum mass uptake of about 1 wt%, followed by partial leaching of low-molar-mass species. Ageing induced a one-order-of-magnitude rise in room-temperature conductivity (up to 0.21 S m⁻¹) and a sixfold increase in effective permittivity (ε′ ≈ 1100 at 0.573 kHz). During a single heating–cooling cycle to 500 K, the electrical conductivity showed almost the exact same behaviour as seen in non-aged composites, indicating low to no effect of hydrothermal ageing on structural relaxation or thermally activated epoxy-filler interactions. Across the 26–37 GHz Ka-band, total shielding effectiveness (SE_T) remained 4–9 dB with absorption (up to 0.67) dominating over reflection. A slight (< 2 dB) enhancement in the low-frequency range of Ka-band was recorded. The combination of a resilient microstructure and stable EMI performance shows that MWCNT/Cu@C/Epoxy hybrids offer durable, hydrothermally stable shielding, which is ideal for humid or saline conditions in marine or aircraft settings, especially for radar-related systems.

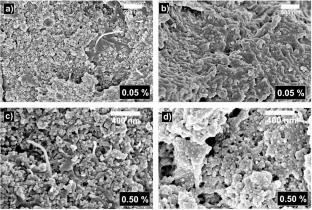

Abstract Image

查看原文本刊更多论文

环氧MWCNT/Cu@C纳米复合材料盐水热老化后的长期稳定性及屏蔽微波电磁干扰性能分析

研究了复合环氧纳米复合材料经持续水热老化后的长期电磁干扰屏蔽性能。将多壁碳纳米管（MWCNTs, 0.05-1 vol%）和碳包覆铜纳米粒子（Cu@C, 5 vol%）共填充环氧基体，然后在0.1 wt% NaCl溶液中浸泡1000 h，温度为80°C。重量分析显示，最大质量吸收量约为1wt %，其次是低摩尔质量物质的部分浸出。老化导致室温电导率上升一个数量级（高达0.21 S m⁻），有效介电常数增加六倍（ε′≈1100,0.573 kHz）。在500 K的单次加热-冷却循环中，电导率表现出与未老化复合材料几乎完全相同的行为，表明水热老化对结构松弛或热活化环氧树脂-填料相互作用的影响很小或没有影响。在26-37 GHz ka波段，总屏蔽效率（SET）保持在4-9 dB，吸收（高达0.67）优于反射。在ka波段的低频范围内记录到轻微的（< 2 dB）增强。弹性微结构和稳定的电磁干扰性能的结合表明，MWCNT/Cu@C/环氧复合材料提供了耐用的、水热稳定的屏蔽，非常适合船舶或飞机环境中的潮湿或盐水环境，特别是雷达相关系统。
