Effect of Annealing Temperature on Microstructure Evolution, Tensile Property and Deformation Behavior of Electron Beam Welded S32101 Joints

IF 4 3区材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY

Metals and Materials International Pub Date : 2025-01-25 DOI:10.1007/s12540-025-01891-1

Xinghai Zhang, Haofei Zhu, Zhiping Xiong, Xingwang Cheng

{"title":"Effect of Annealing Temperature on Microstructure Evolution, Tensile Property and Deformation Behavior of Electron Beam Welded S32101 Joints","authors":"Xinghai Zhang, Haofei Zhu, Zhiping Xiong, Xingwang Cheng","doi":"10.1007/s12540-025-01891-1","DOIUrl":null,"url":null,"abstract":"<div><p>In this paper, the effect of post-weld heat treatment (PWHT) on the microstructure and mechanical properties of the electron beam welding (EBW) joints was studied. The deformation behavior and fracture mechanism of the annealed joint was analyzed by the in-situ EBSD technology. The results demonstrated that the tensile properties of the EBW joints could be greatly improved by PWHT, especially the elongation increased from 8.0% without PWHT to 25.3% after annealing at 1080 ℃, and the tensile strength (TS) increased from 683 MPa to 727 MPa. After annealing, the texture of the ferrite was weakened. During in-situ tensile, a phase boundary was formed at the sharp corner of Widmanstätten austenite (WA) and the surrounding ferrite in accordance with the Nishiyama-Wassermann (N-W) orientation relationship, and the KAM value of ferrite near the phase boundary increased, with obvious stress concentration. Moreover, cracks nucleated and propagated at the interface between grain boundary austenite (GBA) and ferrite, and obvious necking occurred in the heat affected zone (HAZ) of the joint. Meanwhile, the original Kurdjumov-Sachs (K-S) boundaries changed into N-W boundaries with the increase of strain in the WA. The improvement of tensile properties could be attributed to the effects of an increase in austenite’s content and the twinning induced plasticity (TWIP) effect generated by austenite.</p><h3>Graphical Abstract</h3><div><figure><div><div><picture><source><img></source></picture></div></div></figure></div></div>","PeriodicalId":703,"journal":{"name":"Metals and Materials International","volume":"31 8","pages":"2443 - 2459"},"PeriodicalIF":4.0000,"publicationDate":"2025-01-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Metals and Materials International","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1007/s12540-025-01891-1","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

In this paper, the effect of post-weld heat treatment (PWHT) on the microstructure and mechanical properties of the electron beam welding (EBW) joints was studied. The deformation behavior and fracture mechanism of the annealed joint was analyzed by the in-situ EBSD technology. The results demonstrated that the tensile properties of the EBW joints could be greatly improved by PWHT, especially the elongation increased from 8.0% without PWHT to 25.3% after annealing at 1080 ℃, and the tensile strength (TS) increased from 683 MPa to 727 MPa. After annealing, the texture of the ferrite was weakened. During in-situ tensile, a phase boundary was formed at the sharp corner of Widmanstätten austenite (WA) and the surrounding ferrite in accordance with the Nishiyama-Wassermann (N-W) orientation relationship, and the KAM value of ferrite near the phase boundary increased, with obvious stress concentration. Moreover, cracks nucleated and propagated at the interface between grain boundary austenite (GBA) and ferrite, and obvious necking occurred in the heat affected zone (HAZ) of the joint. Meanwhile, the original Kurdjumov-Sachs (K-S) boundaries changed into N-W boundaries with the increase of strain in the WA. The improvement of tensile properties could be attributed to the effects of an increase in austenite’s content and the twinning induced plasticity (TWIP) effect generated by austenite.

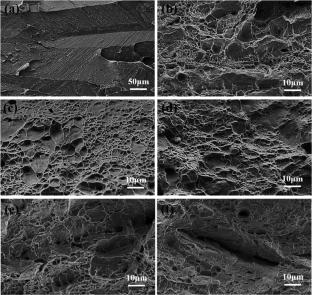

Graphical Abstract

Abstract Image

查看原文本刊更多论文

退火温度对电子束焊接S32101接头组织演变、拉伸性能和变形行为的影响

本文研究了焊后热处理对电子束焊接接头显微组织和力学性能的影响。采用原位EBSD技术对退火接头的变形行为和断裂机理进行了分析。结果表明：经PWHT处理后，EBW接头的拉伸性能得到明显改善，伸长率由未加PWHT时的8.0%提高到1080℃退火后的25.3%，抗拉强度由683 MPa提高到727 MPa。退火后，铁素体的织构减弱。在原位拉伸过程中，在Widmanstätten奥氏体（WA）与周围铁素体的尖角处形成符合Nishiyama-Wassermann （N-W）取向关系的相边界，靠近相边界的铁素体KAM值增大，应力集中明显。裂纹在晶界奥氏体（GBA）和铁素体界面处形核扩展，在接头热影响区（HAZ）出现明显的颈缩。同时，随着西海应变的增加，原来的Kurdjumov-Sachs （K-S）边界转变为N-W边界。拉伸性能的提高可归因于奥氏体含量的增加和奥氏体产生的孪生诱导塑性效应。图形抽象

本文章由计算机程序翻译，如有差异，请以英文原文为准。
