{"title":"Low-Temperature Synthesis and Electrical Conductivity of (La1–хNdх)0.95Sr0.05F2.95 Nanofluorides with a Tysonite Structure","authors":"I. I. Buchinskaya, N. I. Sorokin","doi":"10.1134/S2635167624602213","DOIUrl":null,"url":null,"abstract":"<p>A nanoscale material, which has a tysonite structure (space group <span>\\(P\\bar {3}c1\\)</span>), in the form of a transparent xerogel for the ceramic solid electrolyte (La<sub>1‒<i>х</i></sub>Nd<sub><i>х</i></sub>)<sub>0.95</sub>Sr<sub>0.05</sub>F<sub>2.95</sub> is obtained by the method of coprecipitation from an aqueous solution of nitrates. The dependences of the unit-cell parameters of the tysonite solid solution (La<sub>1–<i>х</i></sub>Nd<sub><i>х</i></sub>)<sub>0.95</sub>Sr<sub>0.05</sub>F<sub>2.95</sub> <i>a</i> and <i>c</i> on the composition <i>x</i> are additive (they satisfy Vegard’s rule). With increasing <i>x</i>, the average size of crystalline grains in the coherent scattering region (CSR) of the nanopowders increases from 8–9 to 23.5–26.5 nm. The ionic conductivity of a ceramic sample prepared by cold pressing from a nanopowder of the composition (La<sub>0.5</sub>Nd<sub>0.5</sub>)<sub>0.95</sub>Sr<sub>0.05</sub>F<sub>2.95</sub> with a density of ~80% of the theoretical value with the parameters of the trigonal unit cell <i>a</i> = 7.1008 ± 0.0004 Å, <i>c</i> = 7.2796 ± 0.0005 Å, and CSR = 10 ± 0.5 nm is measured. The electrical conductivity of (La<sub>0.5</sub>Nd<sub>0.5</sub>)<sub>0.95</sub>Sr<sub>0.05</sub>F<sub>2.95</sub> nanoceramics is 2 × 10<sup>‒3</sup> S/cm at 500 K. The activation energies of ion transfer in the high- and low-temperature regions of electrical conductivity are 0.37 ± 0.04 eV (<i>T</i> > 560 K) and 0.48 ± 0.01 eV (<i>T</i> < 560 K), respectively. The high conductometric characteristics of the nanoceramics make it possible to consider the method of coprecipitation from aqueous solutions as a cost-effective technology in fluoride materials science.</p>","PeriodicalId":716,"journal":{"name":"Nanotechnologies in Russia","volume":"20 2","pages":"167 - 173"},"PeriodicalIF":0.8000,"publicationDate":"2025-07-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nanotechnologies in Russia","FirstCategoryId":"1085","ListUrlMain":"https://link.springer.com/article/10.1134/S2635167624602213","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"Engineering","Score":null,"Total":0}
引用次数: 0
Abstract

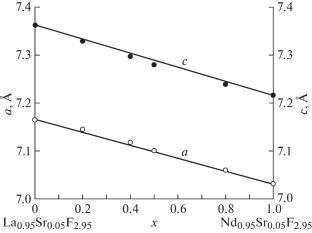

A nanoscale material, which has a tysonite structure (space group \(P\bar {3}c1\)), in the form of a transparent xerogel for the ceramic solid electrolyte (La1‒хNdх)0.95Sr0.05F2.95 is obtained by the method of coprecipitation from an aqueous solution of nitrates. The dependences of the unit-cell parameters of the tysonite solid solution (La1–хNdх)0.95Sr0.05F2.95a and c on the composition x are additive (they satisfy Vegard’s rule). With increasing x, the average size of crystalline grains in the coherent scattering region (CSR) of the nanopowders increases from 8–9 to 23.5–26.5 nm. The ionic conductivity of a ceramic sample prepared by cold pressing from a nanopowder of the composition (La0.5Nd0.5)0.95Sr0.05F2.95 with a density of ~80% of the theoretical value with the parameters of the trigonal unit cell a = 7.1008 ± 0.0004 Å, c = 7.2796 ± 0.0005 Å, and CSR = 10 ± 0.5 nm is measured. The electrical conductivity of (La0.5Nd0.5)0.95Sr0.05F2.95 nanoceramics is 2 × 10‒3 S/cm at 500 K. The activation energies of ion transfer in the high- and low-temperature regions of electrical conductivity are 0.37 ± 0.04 eV (T > 560 K) and 0.48 ± 0.01 eV (T < 560 K), respectively. The high conductometric characteristics of the nanoceramics make it possible to consider the method of coprecipitation from aqueous solutions as a cost-effective technology in fluoride materials science.
采用共沉淀法从硝酸盐水溶液中获得了一种具有钛土结构(空间群\(P\bar {3}c1\))的纳米级材料,该材料以透明干凝胶的形式用于陶瓷固体电解质(La1 -хNdх)0.95Sr0.05F2.95。膨润土固溶体(La1 -хNdх)0.95Sr0.05F2.95 a和c的单胞参数与x的组成呈可加性关系(它们满足Vegard规则)。随着x的增大,纳米粉体的相干散射区(CSR)晶粒的平均尺寸从8 ~ 9 nm增大到23.5 ~ 26.5 nm。用密度为80的纳米粉末(La0.5Nd0.5)0.95Sr0.05F2.95冷压法制备陶瓷样品的离子电导率% of the theoretical value with the parameters of the trigonal unit cell a = 7.1008 ± 0.0004 Å, c = 7.2796 ± 0.0005 Å, and CSR = 10 ± 0.5 nm is measured. The electrical conductivity of (La0.5Nd0.5)0.95Sr0.05F2.95 nanoceramics is 2 × 10‒3 S/cm at 500 K. The activation energies of ion transfer in the high- and low-temperature regions of electrical conductivity are 0.37 ± 0.04 eV (T > 560 K) and 0.48 ± 0.01 eV (T < 560 K), respectively. The high conductometric characteristics of the nanoceramics make it possible to consider the method of coprecipitation from aqueous solutions as a cost-effective technology in fluoride materials science.
