Performance Evaluation of Extensible Cable-Driven Flexible Actuator for Colonoscopy

IF 4.9 3区工程技术 Q2 ENGINEERING, ELECTRICAL & ELECTRONIC

Sensors and Actuators A-physical Pub Date : 2025-09-24 DOI:10.1016/j.sna.2025.117074

Ibrahim A. Seleem , Hiroshi Takemura

{"title":"Performance Evaluation of Extensible Cable-Driven Flexible Actuator for Colonoscopy","authors":"Ibrahim A. Seleem , Hiroshi Takemura","doi":"10.1016/j.sna.2025.117074","DOIUrl":null,"url":null,"abstract":"<div><div>Double Balloon Colonoscopy (DBC) is an endoscopic technique used to examine the small bowel, enabling mucosal biopsy and diagnosis. However, existing designs face challenges, including complex actuation, limited bending, and low payload capacity, which lead to longer procedures and patient discomfort. To tackle these challenges, this article presents a design evaluation of an extensible two-section soft robot based on cable-driven actuation for colonoscopy. Each section can bend in two perpendicular planes by tensioning and retracting four cables distributed by 90°. Its distal section can also extend and compress, resembling a soft spring. A nonlinear static analysis based on the Yeoh model is carried out to verify the movement capacity of the prototype concerning stress and deflection. The robot’s performance is evaluated by conducting a series of experiments, including bending capability, repeatability, and payload capacity. The results show that the distal section is compressed up to 68% of its normal length, and the robot achieves a bending angle of 270°. Furthermore, it succeeds in bending while carrying a load of 100 g.</div></div>","PeriodicalId":21689,"journal":{"name":"Sensors and Actuators A-physical","volume":"395 ","pages":"Article 117074"},"PeriodicalIF":4.9000,"publicationDate":"2025-09-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Sensors and Actuators A-physical","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0924424725008805","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}

引用次数: 0

Abstract

Double Balloon Colonoscopy (DBC) is an endoscopic technique used to examine the small bowel, enabling mucosal biopsy and diagnosis. However, existing designs face challenges, including complex actuation, limited bending, and low payload capacity, which lead to longer procedures and patient discomfort. To tackle these challenges, this article presents a design evaluation of an extensible two-section soft robot based on cable-driven actuation for colonoscopy. Each section can bend in two perpendicular planes by tensioning and retracting four cables distributed by 90°. Its distal section can also extend and compress, resembling a soft spring. A nonlinear static analysis based on the Yeoh model is carried out to verify the movement capacity of the prototype concerning stress and deflection. The robot’s performance is evaluated by conducting a series of experiments, including bending capability, repeatability, and payload capacity. The results show that the distal section is compressed up to 68% of its normal length, and the robot achieves a bending angle of 270°. Furthermore, it succeeds in bending while carrying a load of 100 g.

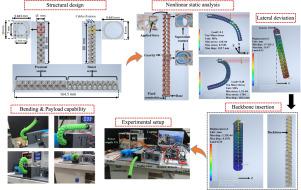

Abstract Image

查看原文本刊更多论文

可扩展缆索驱动柔性结肠镜执行器的性能评价

双球囊结肠镜检查（DBC）是一种用于检查小肠的内镜技术，可以进行粘膜活检和诊断。然而，现有的设计面临挑战，包括复杂的驱动、有限的弯曲和低载荷能力，导致更长的过程和患者不适。为了解决这些挑战，本文提出了一种基于电缆驱动驱动的可扩展两段式结肠镜软机器人的设计评估。通过拉伸和收缩四根呈90°分布的电缆，每个部分可以在两个垂直平面上弯曲。它的远端部分也可以伸展和压缩，类似于一个柔软的弹簧。基于Yeoh模型进行了非线性静力分析，验证了原型在考虑应力和挠度的情况下的运动能力。机器人的性能通过进行一系列实验来评估，包括弯曲能力、可重复性和有效载荷能力。结果表明，机器人远端被压缩至正常长度的68%，弯曲角度达到270°。此外，它在承载100克载荷的情况下成功地弯曲。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
