An Innovative Retrieval-Augmented Generation Framework for Stage-Specific Knowledge Translation in Biomimicry Design.

Abstract

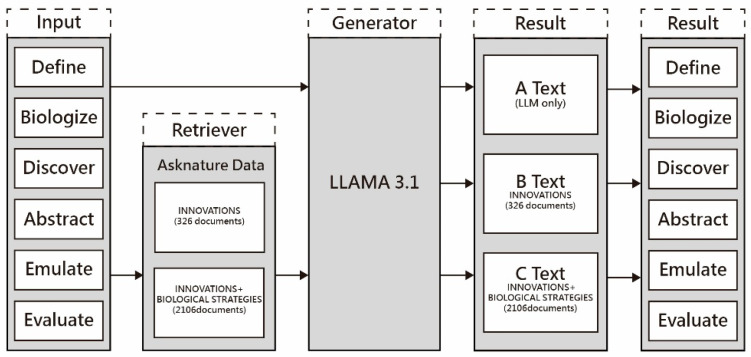

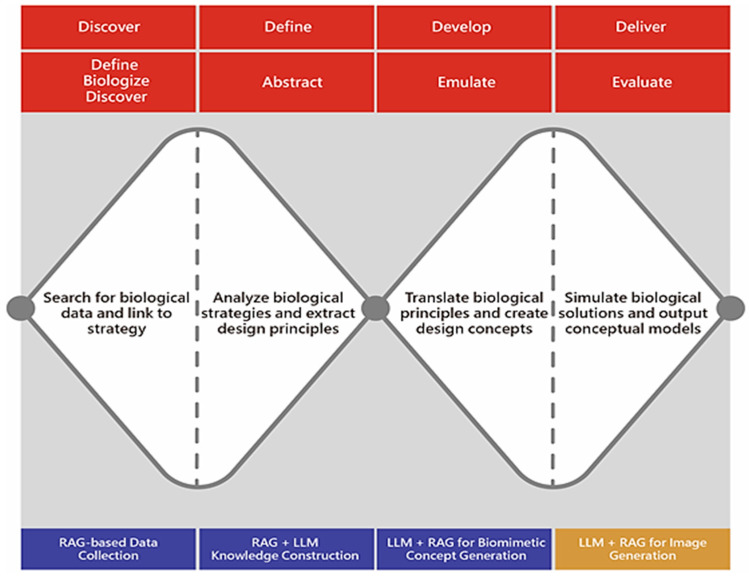

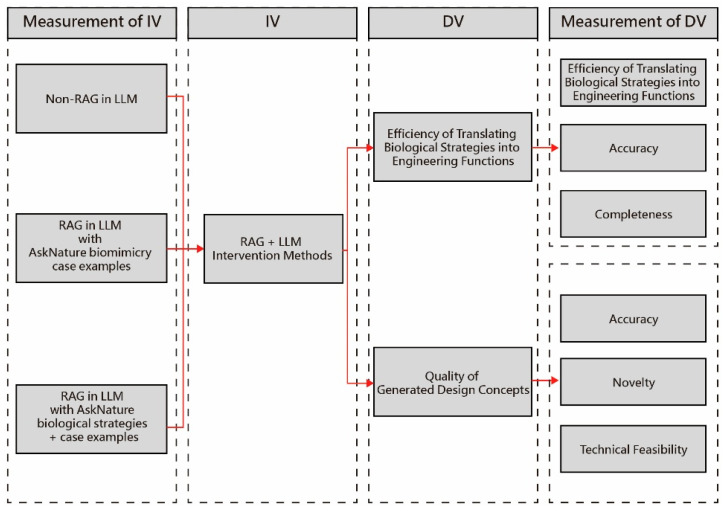

Converting biological strategies into practical design principles during the Discover-Abstract phase of the Biomimicry Design Spiral (BSD) presents a considerable obstacle, particularly for designers lacking a biological background. This research introduces a Retrieval-Augmented Generation (RAG) framework that combines a specialized AskNature database of 2106 documents with a locally executed Llama 3.1 large language model (LLM) to fill this void. The innovation of this study lies in integrating the BDS with a stage-specific RAG-LLM framework. Unlike BioTRIZ or SAPPhIRE, which require specialized expertise, our approach provides designers with semantically precise and biologically grounded strategies that can be directly translated into practical design principles. A quasi-experimental study with 30 industrial design students assessed three setups-LLM-only, RAG-Small, and RAG-Large-throughout six biomimicry design stages. Performance was assessed via expert evaluations of text and design concept quality, along with a review of retrieval diversity. Findings indicate that RAG-Large consistently yielded superior text quality in stages with high cognitive demands. It also retrieved a more varied array of high-specificity biological ideas and facilitated more coherent incorporation of functional, aesthetic, and semantic aspects in design results. This framework diminishes cognitive burden, boosts the relevance and originality of inspirations, and provides a reproducible, stage-specific AI assistance model for closing the knowledge translation gap in biomimicry design, though its current validation is limited to a small sample and a single task domain.
