Influence of Solar Cosmic Rays on the Photometric Characteristics of the CCD Detector of the Lasco/C3 Space Telescope

IF 0.4 Q4 PHYSICS, CONDENSED MATTER
S. A. Bogachev, S. V. Kuzin, A. S. Kirichenko, I. P. Loboda, A. A. Reva, A. V. Trifonov
{"title":"Influence of Solar Cosmic Rays on the Photometric Characteristics of the CCD Detector of the Lasco/C3 Space Telescope","authors":"S. A. Bogachev,&nbsp;S. V. Kuzin,&nbsp;A. S. Kirichenko,&nbsp;I. P. Loboda,&nbsp;A. A. Reva,&nbsp;A. V. Trifonov","doi":"10.1134/S1027451025701010","DOIUrl":null,"url":null,"abstract":"<p>Data from the LASCO/C3 space telescope on board the SOHO space observatory are used to study the effect of solar cosmic rays on the telescope’s CCD detector. A special feature of the instrument is that it is located at the L1 Lagrange point of the Sun–Earth system at a distance of 1.5 million km from the planet and is not protected from charged particles by the Earth’s magnetic field. In the period from 2018 to 2024, a decrease in the instrument’s sensitivity is detected at a rate of 0.94 ± 0.03% per year and an increase in signal dispersion at a rate of 4.9 ± 0.1% per year. The main probable reason is the nonuniform decrease in the photometric sensitivity of the detector in different pixels. The effect of charged particles, the source of which are large solar flares, on the detector is also studied. According to the obtained data, the influence of individual flares on the detector is insignificant and cannot be detected within the measurement error. However, this effect can accumulate, which leads to significant changes in the sensitivity of the CCD over several years or more.</p>","PeriodicalId":671,"journal":{"name":"Journal of Surface Investigation: X-ray, Synchrotron and Neutron Techniques","volume":"19 3","pages":"684 - 691"},"PeriodicalIF":0.4000,"publicationDate":"2025-09-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Surface Investigation: X-ray, Synchrotron and Neutron Techniques","FirstCategoryId":"1085","ListUrlMain":"https://link.springer.com/article/10.1134/S1027451025701010","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"PHYSICS, CONDENSED MATTER","Score":null,"Total":0}
引用次数: 0

Abstract

Data from the LASCO/C3 space telescope on board the SOHO space observatory are used to study the effect of solar cosmic rays on the telescope’s CCD detector. A special feature of the instrument is that it is located at the L1 Lagrange point of the Sun–Earth system at a distance of 1.5 million km from the planet and is not protected from charged particles by the Earth’s magnetic field. In the period from 2018 to 2024, a decrease in the instrument’s sensitivity is detected at a rate of 0.94 ± 0.03% per year and an increase in signal dispersion at a rate of 4.9 ± 0.1% per year. The main probable reason is the nonuniform decrease in the photometric sensitivity of the detector in different pixels. The effect of charged particles, the source of which are large solar flares, on the detector is also studied. According to the obtained data, the influence of individual flares on the detector is insignificant and cannot be detected within the measurement error. However, this effect can accumulate, which leads to significant changes in the sensitivity of the CCD over several years or more.

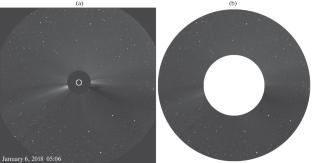

Abstract Image

太阳宇宙射线对Lasco/C3空间望远镜CCD探测器光度特性的影响
来自SOHO空间天文台上的LASCO/C3空间望远镜的数据被用来研究太阳宇宙射线对望远镜CCD探测器的影响。该仪器的一个特点是,它位于距离地球150万公里的日地系统L1拉格朗日点,不受地球磁场对带电粒子的保护。在2018年至2024年期间,仪器的灵敏度以每年0.94±0.03%的速度下降,信号色散以每年4.9±0.1%的速度增加。其主要原因可能是探测器在不同像素点上光度灵敏度的不均匀下降。研究了以大型太阳耀斑为源的带电粒子对探测器的影响。根据得到的数据,单个耀斑对探测器的影响是微不足道的,在测量误差范围内无法检测到。然而,这种效应可能会累积,导致CCD的灵敏度在几年或更长时间内发生重大变化。
