ECR Light Ion Source

IF 0.4 Q4 PHYSICS, CONDENSED MATTER

Journal of Surface Investigation: X-ray, Synchrotron and Neutron Techniques Pub Date : 2025-09-25 DOI:10.1134/S102745102570096X

K. E. Prianishnikov, D. N. Seleznev, A. B. Zarubin, N. N. Vinogradskii, P. A. Fedin, T. V. Kulevoy

引用次数: 0

Abstract

This article describes the development and adjustment of two designs of ion sources generating plasma at a frequency of 2.45 GHz. These ion sources operate in the modes with ECR discharge and RF-discharge. The working gas of the sources is helium or hydrogen. The extraction and beam formation system currently represents two-electrode optics. The diameter of the emission hole is 4 mm. At an accelerating voltage of 25 kV in the pulsed mode. The ion beam current was 7 mA (He⁺) with a helium ion fraction of up to 70% and 14 mA (H⁺) with a proton ion fraction of up to 90%.

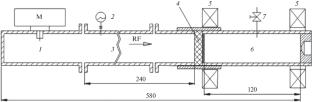

Abstract Image

查看原文本刊更多论文

ECR离子光源

本文介绍了产生2.45 GHz频率等离子体的两种离子源设计的发展和调整。这些离子源在ECR放电和rf放电模式下工作。气源的工作气体是氦或氢。提取和光束形成系统目前采用双电极光学。发射孔直径为4mm。在脉冲模式下加速电压为25kv。离子束电流为7 mA (He+)，氦离子分数高达70%；14 mA (H+)，质子离子分数高达90%。
