Novel donor-acceptor-structured covalent organic framework-based ECL hydrogel sensor for extracellular vesicle MiRNA-137 detection

IF 3.7 1区化学 Q1 CHEMISTRY, ANALYTICAL

Sensors and Actuators B: Chemical Pub Date : 2025-09-24 DOI:10.1016/j.snb.2025.138832

Shijie Li , Wenyan Li , Fangyan Ji , Qiang Ma

{"title":"Novel donor-acceptor-structured covalent organic framework-based ECL hydrogel sensor for extracellular vesicle MiRNA-137 detection","authors":"Shijie Li , Wenyan Li , Fangyan Ji , Qiang Ma","doi":"10.1016/j.snb.2025.138832","DOIUrl":null,"url":null,"abstract":"<div><div>This study developed a novel electrochemiluminescence (ECL) biosensor to detect miRNA-137 in thyroid cancer extracellular vesicles (EVs), which integrated the donor-acceptor-structured covalent organic framework (ETBC-TMT COF) and conductive gel/silver nanowire (Ag NWs) hydrogel. The ETBC-TMT COF was synthesized via solvothermal method with the vinylene-linked Knoevenagel condensation. The ETBC-TMT COF exhibited enhanced electron transfer efficiency and strong luminescence feature due to the narrow bandgap and conjugated structure, which displayed robust anodic ECL emission with H₂O₂ co-reactant activation. Moreover, the gel/Ag NWs hydrogel served as a dual-functional interface. On the one hand, the hydrogel offered high ionic conductivity for rapid electron transfer. On the other hand, there was abundant biocompatible groups in gel/Ag NWs hydrogel to link biomolecules. Finally, catalytic hairpin assembly (CHA) strategy was employed to amplify the ECL signal. As a result, the biosensor achieved a low detection limit of 0.24 fM for miRNA-137 with a linear range of 1 fM–10 nM. The clinical validation revealed that miRNA-137 expression levels in thyroid cancer EVs can be used to differentiate tumor and paracancer effectively. This work established the ETBC-TMT COF-based hydrogel biosensor can be utilized for cancer diagnostics as a rapid and highly sensitive tool.</div></div>","PeriodicalId":425,"journal":{"name":"Sensors and Actuators B: Chemical","volume":"447 ","pages":"Article 138832"},"PeriodicalIF":3.7000,"publicationDate":"2025-09-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Sensors and Actuators B: Chemical","FirstCategoryId":"92","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0925400525016089","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, ANALYTICAL","Score":null,"Total":0}

引用次数: 0

Abstract

This study developed a novel electrochemiluminescence (ECL) biosensor to detect miRNA-137 in thyroid cancer extracellular vesicles (EVs), which integrated the donor-acceptor-structured covalent organic framework (ETBC-TMT COF) and conductive gel/silver nanowire (Ag NWs) hydrogel. The ETBC-TMT COF was synthesized via solvothermal method with the vinylene-linked Knoevenagel condensation. The ETBC-TMT COF exhibited enhanced electron transfer efficiency and strong luminescence feature due to the narrow bandgap and conjugated structure, which displayed robust anodic ECL emission with H₂O₂ co-reactant activation. Moreover, the gel/Ag NWs hydrogel served as a dual-functional interface. On the one hand, the hydrogel offered high ionic conductivity for rapid electron transfer. On the other hand, there was abundant biocompatible groups in gel/Ag NWs hydrogel to link biomolecules. Finally, catalytic hairpin assembly (CHA) strategy was employed to amplify the ECL signal. As a result, the biosensor achieved a low detection limit of 0.24 fM for miRNA-137 with a linear range of 1 fM–10 nM. The clinical validation revealed that miRNA-137 expression levels in thyroid cancer EVs can be used to differentiate tumor and paracancer effectively. This work established the ETBC-TMT COF-based hydrogel biosensor can be utilized for cancer diagnostics as a rapid and highly sensitive tool.

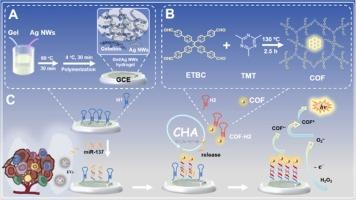

Abstract Image

查看原文本刊更多论文

新型供受体结构共价有机框架ECL水凝胶传感器用于细胞外囊泡MiRNA-137检测

本研究开发了一种新型的电化学发光（ECL）生物传感器，用于检测甲状腺癌细胞外囊泡（ev）中的miRNA-137，该传感器集成了供体-受体结构的共价有机框架（ETBC-TMT COF）和导电凝胶/银纳米线（Ag NWs）水凝胶。采用乙烯链Knoevenagel缩合，采用溶剂热法合成了ETBC-TMT COF。由于窄带隙和共轭结构，ETBC-TMT COF具有较高的电子转移效率和较强的发光特性，在H₂O₂共反应物活化下表现出强劲的阳极ECL发射。此外，凝胶/Ag - NWs水凝胶具有双功能界面。一方面，水凝胶为快速电子转移提供了高离子电导率。另一方面，凝胶/Ag NWs水凝胶中存在丰富的生物相容性基团来连接生物分子。最后，采用催化发夹组合（CHA）策略对ECL信号进行放大。因此，该生物传感器对miRNA-137的检测限为0.24 fM，线性范围为1 fM - 10 nM。临床验证表明，miRNA-137在甲状腺癌ev中的表达水平可以有效地用于区分肿瘤和旁癌。本工作建立了基于ETBC-TMT cof的水凝胶生物传感器作为一种快速、高灵敏度的癌症诊断工具。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
