Thermal Expansion of REE3BSi2O10 (REE = Nd, Eu, Gd) Borosilicates

IF 0.6 4区材料科学 Q4 MATERIALS SCIENCE, CERAMICS

Glass Physics and Chemistry Pub Date : 2025-09-23 DOI:10.1134/S1087659624601278

Yu. O. Kopylova, M. G. Krzhizhanovskaya, V. A. Yukhno, R. S. Bubnova

{"title":"Thermal Expansion of REE3BSi2O10 (REE = Nd, Eu, Gd) Borosilicates","authors":"Yu. O. Kopylova, M. G. Krzhizhanovskaya, V. A. Yukhno, R. S. Bubnova","doi":"10.1134/S1087659624601278","DOIUrl":null,"url":null,"abstract":"Three borosilicates with the general formula of REE3BSi2O10 (REE = Nd, Eu, Gd) were obtained by the high-temperature solid-state synthesis and studied by powder high-temperature X-ray diffraction (HTXRD) in the temperature range from 30 up to 1050°C. The HTXRD study showed that these borosilicates (orthorhombic, Pbca space group) have similar, nearly isotropic thermal expansion in the whole temperature range; the average coefficients of thermal expansion (CTE) were: 〈αa〉 = 9.6, 〈αb〉 = 8.3 and 〈αc〉 = 8.7 × 10–6°С–1, with (αmax – αmin) ≤ 1.2 × 10–6°С–1. The average volume CTE insignificantly decreases with increasing the cation size from 27.2 for Eu and 27.0 for Gd down to 25.8 × 10–6°С–1 for Nd compound while the unit cell volume increases with increasing the REE cation radii in the REE3BSi2O10 series.","PeriodicalId":580,"journal":{"name":"Glass Physics and Chemistry","volume":"51 3","pages":"344 - 349"},"PeriodicalIF":0.6000,"publicationDate":"2025-09-23","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Glass Physics and Chemistry","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1134/S1087659624601278","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"MATERIALS SCIENCE, CERAMICS","Score":null,"Total":0}

引用次数: 0

Abstract

Three borosilicates with the general formula of REE₃BSi₂O₁₀ (REE = Nd, Eu, Gd) were obtained by the high-temperature solid-state synthesis and studied by powder high-temperature X-ray diffraction (HTXRD) in the temperature range from 30 up to 1050°C. The HTXRD study showed that these borosilicates (orthorhombic, Pbca space group) have similar, nearly isotropic thermal expansion in the whole temperature range; the average coefficients of thermal expansion (CTE) were: 〈α_a〉 = 9.6, 〈α_b〉 = 8.3 and 〈α_c〉 = 8.7 × 10^–6°С^–1, with (α_max – α_min) ≤ 1.2 × 10^–6°С^–1. The average volume CTE insignificantly decreases with increasing the cation size from 27.2 for Eu and 27.0 for Gd down to 25.8 × 10^–6°С^–1 for Nd compound while the unit cell volume increases with increasing the REE cation radii in the REE₃BSi₂O₁₀ series.

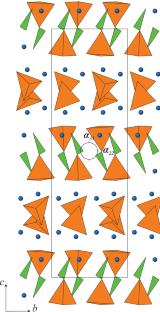

Abstract Image

查看原文本刊更多论文

REE3BSi2O10 （REE = Nd, Eu, Gd）硼硅酸盐的热膨胀

采用高温固相合成法制备了三种分子式为REE3BSi2O10 （REE = Nd, Eu, Gd）的硼硅酸盐，并在30 ~ 1050℃的温度范围内进行了粉末高温x射线衍射（HTXRD）研究。HTXRD研究表明，这些硼硅酸盐（正交、Pbca空间群）在整个温度范围内具有相似的、几乎各向同性的热膨胀；平均热膨胀系数(CTE) < αa > = 9.6, < αb > = 8.3, < αc > = 8.7 × 10-6°С-1, (αmax - αmin)≤1.2 × 10-6°С-1。在REE3BSi2O10系列中，平均体积CTE随阳离子尺寸的增大而减小，从Eu的27.2和Gd的27.0减小到Nd的25.8 × 10-6°С-1，而单元胞体积随REE阳离子半径的增大而增大。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
