Synergy of Pt, Rh and SnO2 nanoparticles supported on carbon: Influence of microstructures on the selectivity of ethanol oxidation

IF 4.6 3区材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY

Materials Science and Engineering: B Pub Date : 2025-09-24 DOI:10.1016/j.mseb.2025.118797

Seden Beyhan

{"title":"Synergy of Pt, Rh and SnO2 nanoparticles supported on carbon: Influence of microstructures on the selectivity of ethanol oxidation","authors":"Seden Beyhan","doi":"10.1016/j.mseb.2025.118797","DOIUrl":null,"url":null,"abstract":"<div><div>This study investigates the physicochemical and electrochemical properties of carbon-supported Pt, Pt-Sn, Pt-Rh, and Pt-Sn-Rh nanoparticles for ethanol oxidation reaction (EOR). X-ray diffraction (XRD) analysis reveals the face-centered cubic crystal structure of Pt. Transmission electron microscopy (TEM) images show well-dispersed nanoparticles on carbon support, with Pt-Sn-Rh exhibiting an average particle size of 2.8 ± 0.2 nm. High-resolution TEM and energy-dispersive X-ray (EDX) microanalysis confirm the presence of SnO<sub>2</sub>, Pt-Rh, and Pt-Sn. X-ray photoelectron spectroscopy (XPS) analysis confirms the presence of metallic Pt along with SnO<sub>2</sub> in the Pt-Sn-Rh/C catalyst. Chronoamperometry combined with accelerated degradation tests (ADTs) demonstrates the excellent catalytic stability of Pt-Sn-Rh/C. CO stripping voltammetry also shows that the incorporation of Sn and Rh into Pt facilitates CO oxidation at low potentials. Pt-Sn-Rh/C excels at low ethanol concentrations due to the Eley-Rideal mechanism, whereas Pt-Sn/C performs better at high concentrations owing to SnO<sub>2</sub>-rich surfaces favoring the Langmuir-Hinshelwood pathway.</div></div>","PeriodicalId":18233,"journal":{"name":"Materials Science and Engineering: B","volume":"323 ","pages":"Article 118797"},"PeriodicalIF":4.6000,"publicationDate":"2025-09-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Science and Engineering: B","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0921510725008219","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

This study investigates the physicochemical and electrochemical properties of carbon-supported Pt, Pt-Sn, Pt-Rh, and Pt-Sn-Rh nanoparticles for ethanol oxidation reaction (EOR). X-ray diffraction (XRD) analysis reveals the face-centered cubic crystal structure of Pt. Transmission electron microscopy (TEM) images show well-dispersed nanoparticles on carbon support, with Pt-Sn-Rh exhibiting an average particle size of 2.8 ± 0.2 nm. High-resolution TEM and energy-dispersive X-ray (EDX) microanalysis confirm the presence of SnO₂, Pt-Rh, and Pt-Sn. X-ray photoelectron spectroscopy (XPS) analysis confirms the presence of metallic Pt along with SnO₂ in the Pt-Sn-Rh/C catalyst. Chronoamperometry combined with accelerated degradation tests (ADTs) demonstrates the excellent catalytic stability of Pt-Sn-Rh/C. CO stripping voltammetry also shows that the incorporation of Sn and Rh into Pt facilitates CO oxidation at low potentials. Pt-Sn-Rh/C excels at low ethanol concentrations due to the Eley-Rideal mechanism, whereas Pt-Sn/C performs better at high concentrations owing to SnO₂-rich surfaces favoring the Langmuir-Hinshelwood pathway.

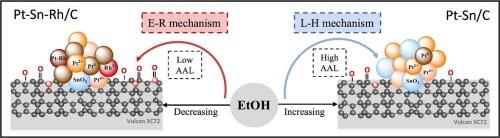

Abstract Image

查看原文本刊更多论文

碳负载Pt、Rh和SnO2纳米粒子的协同作用：微观结构对乙醇氧化选择性的影响

研究了碳负载Pt、Pt- sn、Pt- rh和Pt- sn - rh纳米颗粒在乙醇氧化反应（EOR）中的物理化学和电化学性能。x射线衍射（XRD）分析显示了Pt的面心立方晶体结构。透射电镜（TEM）图像显示，碳载体上的Pt- sn - rh纳米颗粒分散良好，平均粒径为2.8±0.2 nm。高分辨率TEM和能量色散x射线（EDX）显微分析证实了SnO2、Pt-Rh和Pt-Sn的存在。x射线光电子能谱（XPS）分析证实，Pt- sn - rh /C催化剂中存在金属Pt和SnO2。计时电流法结合加速降解试验（ADTs）表明Pt-Sn-Rh/C具有优异的催化稳定性。CO溶出伏安法还表明，Sn和Rh掺入Pt有利于CO在低电位下氧化。Pt-Sn- rh /C在低乙醇浓度下表现优异，这是由于Eley-Rideal机制，而Pt-Sn/C在高浓度下表现更好，这是由于富含sno2的表面有利于Langmuir-Hinshelwood途径。
